 Posted: Sat Mar 08, 2014 12:55 pm Post subject: Door latch |
 |
|
Hi guys & gals, Thanx for your help regarding door fitting - coming along

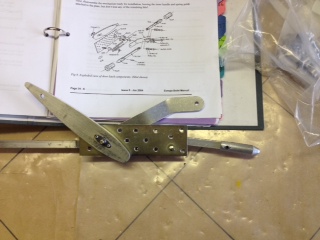

nicely. Got a problem with the door latch. as you can see in the attatched
photo. With the inner handle in the fully closed position, the outer handle
is cocked up at 40 degees to the horizontal ??? I'm assuming it should be
horizontal - streamlined into the airflow. I followed the instructions to
the letter & as you can only ever change the positions of the handles by 90
degrees, whats gone wrong ??? Any ideas please Paul Munford trigear kit 625.
Thankyou
---
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
33.58 KB |
| Viewed: |
1896 Time(s) |
|
|
|
| Back to top |
|
 |
pmdental(at)btinternet.co
Guest
|
| Posted: Sat Mar 08, 2014 1:08 pm Post subject: Door latch |
|
|
Hi all. Thanx for you help with door fitting - coming along nicely. As you
can see I've got a problem with the doorlatch ? Despite following the
instructions to the letter, when the inner handle is in the fully closed
position the outer handle is cocked up at 40 degrees ??? I'm assuming it
should be horizontal into the airflow ?? BUT you can only alter the handle
positions by 90 degees. Any ideas / Thankyou Paul Munford, Kit 625 trigear
---
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
33.58 KB |
| Viewed: |
1896 Time(s) |
|
|
|
| Back to top |
|
|
Richard Wheelwright
Joined: 15 Sep 2008
Posts: 111
Location: Halifax, West Yorkshire, UK
|
| Posted: Sat Mar 08, 2014 1:10 pm Post subject: Door latch |
|
|
You may have fixed the anchor nut on the wrong side of the Handel ???
Sent from my iPad
[quote] On 8 Mar 2014, at 20:54, "Paul & Vanessa Munford" <pmdental(at)btinternet.com> wrote:
Hi guys & gals, Thanx for your help regarding door fitting - coming along nicely. Got a problem with the door latch. as you can see in the attatched photo. With the inner handle in the fully closed position, the outer handle is cocked up at 40 degees to the horizontal ??? I'm assuming it should be horizontal - streamlined into the airflow. I followed the instructions to the letter & as you can only ever change the positions of the handles by 90 degrees, whats gone wrong ??? Any ideas please Paul Munford trigear kit 625. Thankyou
---
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
_________________
Richard Wheelwright
G-IRPW
First Flight 24th July 2013 |
|
| Back to top |
|
|
craigb(at)onthenet.com.au
Guest
|
| Posted: Sat Mar 08, 2014 1:41 pm Post subject: Door latch |
|
|
Try swapping the handles
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
grahamsingleton(at)btinte
Guest
|
| Posted: Sat Mar 08, 2014 3:06 pm Post subject: Door latch |
|
|
try turning the handle over, (inside face to outside) You nned to take the anchor nut off, so have a look and think about it
first!
Graham
From: Paul & Vanessa Munford <pmdental(at)btinternet.com>
To: europa-list(at)matronics.com
Sent: Saturday, 8 March 2014, 20:54
Subject: Fw: Door latch
Hi guys & gals, Thanx for your help regarding door fitting - coming along nicely. Got a problem with the door latch. as you can see in the attatched photo. With the inner handle in the fully closed position, the outer handle is cocked up at 40 degees to the horizontal ??? I'm assuming it should be horizontal - streamlined into the airflow. I followed the instructions to the letter & as you can only ever change the positions of the handles by 90 degrees, whats gone wrong ??? Any ideas please Paul Munford trigear kit 625. Thankyou
---
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
pmdental(at)btinternet.co
Guest
|
| Posted: Sun Mar 09, 2014 7:28 am Post subject: Door latch |
|
|
As ever, you guys are great !!! You were right, - by swapping handles, everything fell into place (wish I had a brain ???!!!). Thanx again. Paul Munford. Trigear kit 625
[quote] ---
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
|
|
