Heads Up for UK based tail-dragger fans

Matronics Email Lists Forum Index -> Europa-List

View previous topic :: View next topic

Author Message

nigel_graham(at)m-tecque.
Guest

Posted: Tue Aug 26, 2014 12:38 am Post subject: Heads Up for UK based tail-dragger fans

Some of you will know that I've been developing an articulating,

full-suspension tail-dragger conversion for the Europa (for the last few

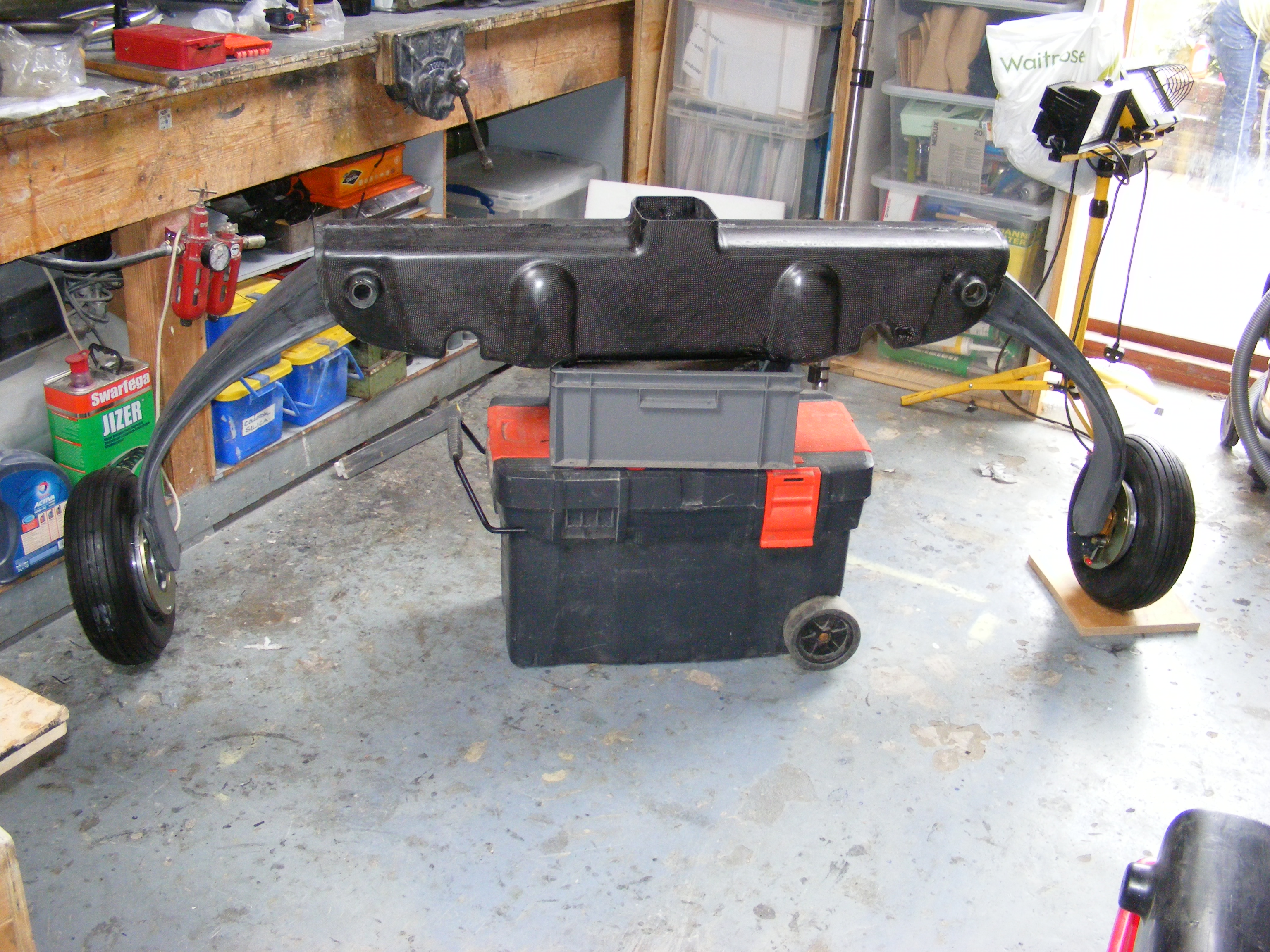

millennia it seems). Anyhow, I pulled the first carbon fibre

cross-member out of the moulds last week (3.6 Kg before you ask) and

trial rigged it - picture attached.

For those of you with an interest, I will be displaying it, together

with a load of other "off piste" Europa developments, at the LAA rally

at Sywell this coming weekend.



We will be on the Europa Club stand - so come over and say "hello" and

grab a cup of coffee. We have a large marquee, so don't be put off by

the weather!



Nigel

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

2.76 MB

Viewed:

1433 Time(s)

paul.the.aviator(at)gmail
Guest

Posted: Tue Aug 26, 2014 9:43 am Post subject: Heads Up for UK based tail-dragger fans

Hi Nigel,



I have a couple of questions:



Could you tell me if there is an increase in ground clearance over the mono?

Where in are the wheels in relation to the MAC ?

Are the brake lines internal to the gear?



Some more pictures would be great!!



Thanks, Paul



--

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

nigel_graham(at)m-tecque.
Guest

Posted: Tue Aug 26, 2014 2:29 pm Post subject: Heads Up for UK based tail-dragger fans

Hi Paul,



Yes, In theory, I can make the gear legs any length I want to give me a

sensible ground clearance. This set can let me swing  up to a 70" prop

if I want  (i.e. if the engine will allow) with full deflection and flat

tyres. The gear leg length has to be designed with the tail wheel in

mind to ensure that the ground angle does not exceed 16 degrees to allow

me to three-point it before stalling.

The brake lines will run down the front trough in the "I" beam with

flexible connectors by the pivots.

I'll dig out some more pictures later but am rushing to get things ready

for the rally.



Nigel



On 26/08/2014 18:34, Paul McAllister wrote:

[quote]



 Hi Nigel,



 I have a couple of questions:



 Could you tell me if there is an increase in ground clearance over the mono?

 Where in are the wheels in relation to the MAC ?

 Are the brake lines internal to the gear?



 Some more pictures would be great!!



 Thanks, Paul



 --
