mounting strobe power supply in RV-6/6A

Matronics Email Lists Forum Index -> RV-List

View previous topic :: View next topic

Author Message

sarg314(at)comcast.net
Guest

Posted: Sun Jul 02, 2006 6:33 am Post subject: mounting strobe power supply in RV-6/6A

I have the Whelen strobe power supply to run 3 strobes ( HDACF).  It's

got a mounting plate that is about 6" square. It weighs 2 Lbs.  I want

to mount it just behind the baggage bulkhead some where.  First idea, to

simply mount it to the belly skin was rejected.  The skin's not braced

enough.



Putting a shelf of some sort  from the central rib to the side skin

seems like too large a run and gets in the way of accessing the elevator

bell crank unless youplace it rather far aft.  I'd like to keep it as

far forward as possible.



I could make a mounting "shelf" attached vertically to the aft side of

the skin that screws to the baggage bulkhead, down low the lower

corner.  Problem there is you'd have to remove or diconnect the thing

everytime you removed the skin.  It's an easy installation, though,

since you can work on the bench instead of int he plane.



Another  idea is to mount it oriented vertically on the side of the

fuse,  up high.  One bracket attached to the bulkhead itself, the other

to the skin.  The skin's flat there.  A piece of 1/16 angle 7" long

rivetted vertically between the 2 J strips would be plenty solid and I

think the skin is strong enough there.



The baggage floor is rivetted down so that closes off some possibilities.



If any one has some ideas or photos on a web site, I would be very

appreciative.

--

Tom Sargent, RV-6A

kboatright1(at)comcast.ne
Guest

Posted: Sun Jul 02, 2006 6:55 am Post subject: mounting strobe power supply in RV-6/6A

Obviously not a direct answer to your question, but why not mount it between

the battery box and the fuel selector?  Make a little shelf between two of

the floor stringers and put it on the shelf. This is also a good location

for your ELT, oxygen bottle, or fire extinguisher.



KB

---

bobbyhester(at)charter.ne
Guest

Posted: Sun Jul 02, 2006 7:16 am Post subject: mounting strobe power supply in RV-6/6A

Here's what I did, I had it on my web site at one time but have since removed some of the older stuff:



 [img]cid:part1.06070105.05090509(at)charter.net[/img]



 I ran conduits under my baggage floors to run wires.

  	  Quote:
		  My new email address: bobbyhester(at)charter.net (bobbyhester(at)charter.net)

Surfing the Web from Hopkinsville, KY

Visit my web site at: http://www.geocities.com/hester-hoptown/RVSite/

RV7A N857BH SB wings-QB Fuse-XPO360 engine






 sarg314 wrote:  	  Quote:
		  --> RV-List message posted by: sarg314 <sarg314(at)comcast.net> (sarg314(at)comcast.net)



 I have the Whelen strobe power supply to run 3 strobes ( HDACF).  It's got a mounting plate that is about 6" square. It weighs 2 Lbs.  I want to mount it just behind the baggage bulkhead some where.  First idea, to simply mount it to the belly skin was rejected.  The skin's not braced enough.



 Putting a shelf of some sort  from the central rib to the side skin seems like too large a run and gets in the way of accessing the elevator bell crank unless youplace it rather far aft.  I'd like to keep it as far forward as possible.



 I could make a mounting "shelf" attached vertically to the aft side of the skin that screws to the baggage bulkhead, down low the lower corner.  Problem there is you'd have to remove or diconnect the thing everytime you removed the skin.  It's an easy installation, though, since you can work on the bench instead of int he plane.



 Another  idea is to mount it oriented vertically on the side of the fuse,  up high.  One bracket attached to the bulkhead itself, the other to the skin.  The skin's flat there.  A piece of 1/16 angle 7" long rivetted vertically between the 2 J strips would be plenty solid and I think the skin is strong enough there.



 The baggage floor is rivetted down so that closes off some possibilities.

 If any one has some ideas or photos on a web site, I would be very appreciative.

 --

 Tom Sargent, RV-6A





















 http://www.matronics.com/Navigator?RV-List







 http://wiki.matronics.com


Description:

Filesize:

37.51 KB

Viewed:

485 Time(s)

rvsixer(at)juno.com
Guest

Posted: Sun Jul 02, 2006 7:29 am Post subject: mounting strobe power supply in RV-6/6A

Tom,



    I used screws instead of rivets to fasten down my right side baggage

floor. I added two stiffeners to the floor panel between the ribs and

mounted the power supply upside below the baggage floor. Whelen said it can

be mounted any direction and cooling was not a factor. Also, I have no

strobe noise in the headsets, even with the comm antenna on the belly under

the seats.



Mike Hilger

RV-6  N207AM  760 hrs

sarg314(at)comcast.net
Guest

Posted: Sun Jul 02, 2006 7:29 am Post subject: mounting strobe power supply in RV-6/6A

Kyle:

    Yes, that's a good location, functionally, but likely to get

kicked.  I'd want to make some sort of cover for it (there's 5000v in

one of those wires).  Besides, I plan on putting the fire extinguisher

there.  Also, the wires from the strobe supply have to end up on the aft

side of the wing spar, so it's convenient if they start out on the aft

side of the wing spar to begin with.  That ay only the power & ground

wires cross the spar.



Kyle Boatright wrote:



[quote]



 Obviously not a direct answer to your question, but why not mount it

 between the battery box and the fuel selector?  Make a little shelf

 between two of the floor stringers and put it on the shelf. This is

 also a good location for your ELT, oxygen bottle, or fire extinguisher.



 KB

 ---

bill(at)vondane.com
Guest

Posted: Sun Jul 02, 2006 7:33 am Post subject: mounting strobe power supply in RV-6/6A

I would caution you on putting your strobe power supply in a location near

to anything that may leak fuel...  Strobe power supplies send very high

voltage to the strobe heads and it would make for a very bad day if for some

reason your fuel selector should happen to leak on the connections to the

strobe heads...



Just an FYI...



-Bill VonDane

RV-8A ~ N8WV

Colorado Springs, CO

www.rv8a.com



---

Rick Galati

Joined: 10 Jan 2006
Posts: 91
Location: Lake St. Louis MO.

Posted: Sun Jul 02, 2006 10:06 am Post subject: Re: mounting strobe power supply in RV-6/6A

Tom,



My RV sports two Whelen power supplies, and I mounted a unit to each outboard wing rib.  In your case, perhaps it is advantageous  to mount your single unit to the right wing given that side is usually built a bit lighter than the left wing if your landing light and pitot installation is located on the left wing.  The photo illustrates my installation technique on the right wing.  As shown, the wing tip rests atop the wing showing the internally mounted VOR antenna bolted inside the tip.



http://img373.imageshack.us/img373/2518/img0004457xa.jpg



Rick Galati  RV-6A  "Darla"  145 hours



 	  sarg314(at)comcast.net wrote:
		  I have the Whelen strobe power supply to run 3 strobes ( HDACF).  It's

got a mounting plate that is about 6" square. It weighs 2 Lbs.  I want

to mount it just behind the baggage bulkhead some where.  First idea, to

simply mount it to the belly skin was rejected.  The skin's not braced

enough.



Putting a shelf of some sort  from the central rib to the side skin

seems like too large a run and gets in the way of accessing the elevator

bell crank unless youplace it rather far aft.  I'd like to keep it as

far forward as possible.



I could make a mounting "shelf" attached vertically to the aft side of

the skin that screws to the baggage bulkhead, down low the lower

corner.  Problem there is you'd have to remove or diconnect the thing

everytime you removed the skin.  It's an easy installation, though,

since you can work on the bench instead of int he plane.



Another  idea is to mount it oriented vertically on the side of the

fuse,  up high.  One bracket attached to the bulkhead itself, the other

to the skin.  The skin's flat there.  A piece of 1/16 angle 7" long

rivetted vertically between the 2 J strips would be plenty solid and I

think the skin is strong enough there.



The baggage floor is rivetted down so that closes off some possibilities.



If any one has some ideas or photos on a web site, I would be very

appreciative.

--

Tom Sargent, RV-6A

dbris200(at)sbcglobal.net
Guest

Posted: Sun Jul 02, 2006 2:31 pm Post subject: mounting strobe power supply in RV-6/6A

Tom,



 I mounted mine to the bottom rear of the baggage bulkhead and it's never been a problem. Removing it is as simple as disconnecting a few plugs. It was the simplest and lightest way to mount it and I'd do it the same way again.



 Dave



 sarg314 wrote:  	  Quote:
		  --> RV-List message posted by: sarg314 <sarg314(at)comcast.net> (sarg314(at)comcast.net)



 I have the Whelen strobe power supply to run 3 strobes ( HDACF).  It's got a mounting plate that is about 6" square. It weighs 2 Lbs.  I want to mount it just behind the baggage bulkhead some where.  First idea, to simply mount it to the belly skin was rejected.  The skin's not braced enough.



 Putting a shelf of some sort  from the central rib to the side skin seems like too large a run and gets in the way of accessing the elevator bell crank unless youplace it rather far aft.  I'd like to keep it as far forward as possible.



 I could make a mounting "shelf" attached vertically to the aft side of the skin that screws to the baggage bulkhead, down low the lower corner.  Problem there is you'd have to remove or diconnect the thing everytime you removed the skin.  It's an easy installation, though, since you can work on the bench instead of int he plane.



 Another  idea is to mount it oriented vertically on the side of the fuse,  up high.  One bracket attached to the bulkhead itself, the other to the skin.  The skin's flat there.  A piece of 1/16 angle 7" long rivetted vertically between the 2 J strips would be plenty solid and I think the skin is strong enough there.



 The baggage floor is rivetted down so that closes off some possibilities.

 If any one has some ideas or photos on a web site, I would be very appreciative.

 --

 Tom Sargent, RV-6A





















 http://www.matronics.com/Navigator?RV-List







 http://wiki.matronics.com

denis.walsh(at)comcast.ne
Guest

Posted: Sun Jul 02, 2006 3:58 pm Post subject: mounting strobe power supply in RV-6/6A

Mine went on the aft side of the baggage bulkhead, slightly left of

center and just below the seam between the two halves of the

bulkhead .  It has worked well.  Now that I have done many

inspections, mods and maintenance I would recommend putting it on the

top half bulkhead.  Reason being that I have not had the need to

remove that one in the last several years.  There fore I would not

have to unplug the power wires each time I take off the bulkhead for

inspections etc.



I also like Bobby Hester picture, since that belly skin is an oil

canner and those rails should stiffen them up a bit!

Denis Walsh



On Jul 2, 2006, at 07:25 303180007, sarg314 wrote:



 	  Quote:




 I have the Whelen strobe power supply to run 3 strobes ( HDACF).

 It's got a mounting plate that is about 6" square. It weighs 2

 Lbs.  I want to mount it just behind the baggage bulkhead some

 where.  First idea, to simply mount it to the belly skin was

 rejected.  The skin's not braced enough.



 Putting a shelf of some sort  from the central rib to the side skin

 seems like too large a run and gets in the way of accessing the

 elevator bell crank unless youplace it rather far aft.  I'd like to

 keep it as far forward as possible.



 I could make a mounting "shelf" attached vertically to the aft side

 of the skin that screws to the baggage bulkhead, down low the lower

 corner.  Problem there is you'd have to remove or diconnect the

 thing everytime you removed the skin.  It's an easy installation,

 though, since you can work on the bench instead of int he plane.



 Another  idea is to mount it oriented vertically on the side of the

 fuse,  up high.  One bracket attached to the bulkhead itself, the

 other to the skin.  The skin's flat there.  A piece of 1/16 angle

 7" long rivetted vertically between the 2 J strips would be plenty

 solid and I think the skin is strong enough there.



 The baggage floor is rivetted down so that closes off some

 possibilities.

 If any one has some ideas or photos on a web site, I would be very

 appreciative.

 --

 Tom Sargent, RV-6A





 www.matronics.com/Navigator?RV-List

 wiki.matronics.com

bicyclop(at)pacbell.net
Guest

Posted: Sun Jul 02, 2006 5:01 pm Post subject: mounting strobe power supply in RV-6/6A

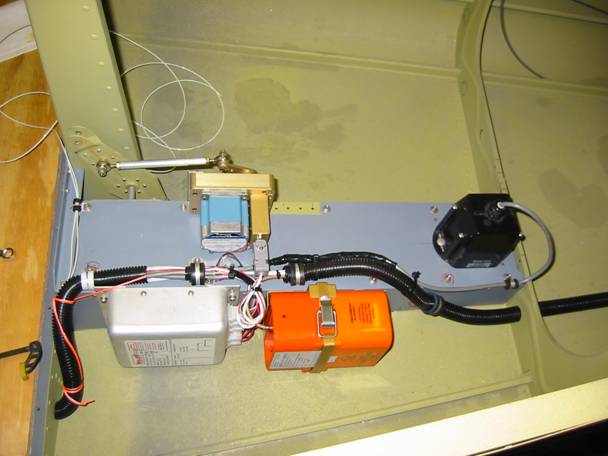

Hmmm, I don't think that will help with oil canning. It looks as if the rails are suspended on each end at the bulkheads and not in contact with the skin. I bought another rib from Van's - the one that the elevator bellcrank is mounted to (sorry I don't have the part # at my fingertips) and fit it parallel to the existing one and made a sort of avionics deck.






Things wound up crowded and I mounted on the side of it. That black thing at the aft end is a remote compass sensor which I’ll probably end up not using.



Pax,



Ed Holyoke





 	  Quote:
		  I also like Bobby Hester picture, since that belly skin is an oil

canner and those rails should stiffen them up a bit!



Denis Walsh



On Jul 2, 2006, at 07:25 303180007, sarg314 wrote:



 	  Quote:
		   --> RV-List message posted by: sarg314 <sarg314(at)comcast.net>



 I have the Whelen strobe power supply to run 3 strobes ( HDACF).

 It's got a mounting plate that is about 6" square. It weighs 2

 Lbs.  I want to mount it just behind the baggage bulkhead some

 where.  First idea, to simply mount it to the belly skin was

 rejected.  The skin's not braced enough.


Description:

Filesize:

30.84 KB

Viewed:

432 Time(s)

sheldonb(at)frontiernet.n
Guest

Posted: Mon Jul 03, 2006 4:02 am Post subject: mounting strobe power supply in RV-6/6A

Ed, Just some information for you... I have the  AK-450 ELT as you do... The mount for the mounting strap broke (at  around 300 hours)... Not sure why, but might be from unhooking it and re  hooking at battery change times or from viberation... you might think of beefing  this up... for if it came loose back there... not good...!

 Sheldon RV6A 400 hrs

 [quote]   ---


Description:

Filesize:

30.84 KB

Viewed:

370 Time(s)

bicyclop(at)pacbell.net
Guest

Posted: Mon Jul 03, 2006 8:18 am Post subject: mounting strobe power supply in RV-6/6A

Sheldon,



Thanks for the heads up. This airplane isn’t flying yet, but I’ll make sure to put a line in my inspection checklist to give it special attention when it does.



Pax,



Ed Holyoke

Do not archive



--

Display posts from previous:

	Matronics Email Lists Forum Index -> RV-List	All times are GMT - 8 Hours
Page 1 of 1

Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
