Posted: Mon Sep 04, 2006 5:58 am Post subject: Fuel feed problem vent for Kirk

Here is a repeat of the vent pics for "kirkhull"

I added some comments below.

Paul

--------------------

Yes the vent is at the top of the tank under the

flange. One can use a swivel 90 deg fitting. Some

have female threads so one has to use a close

union In any event they are available. Check

hydraulic supply houses. Check the car nut places

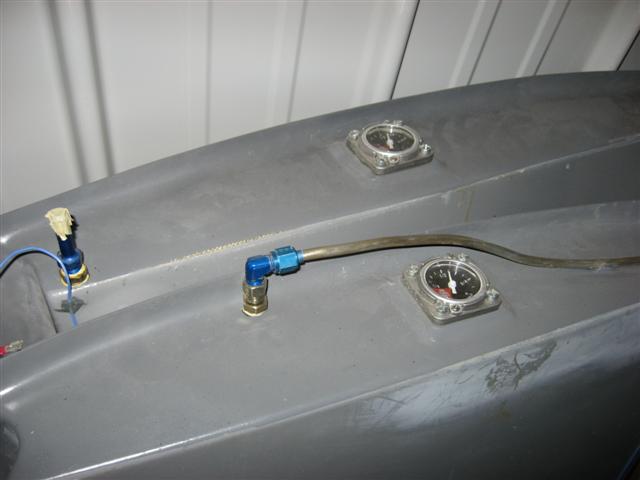

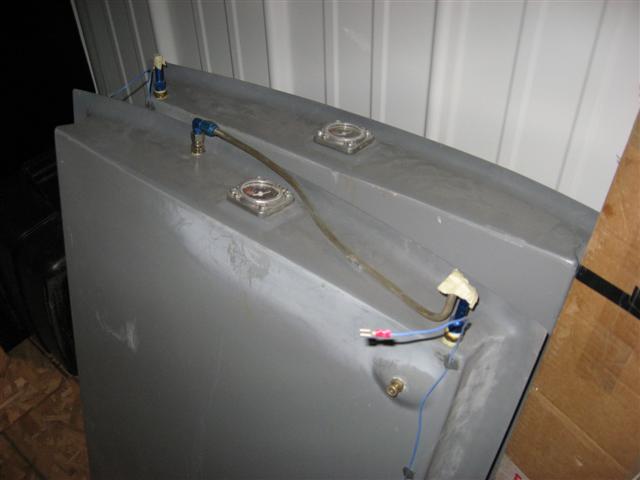

like Earls. Attached is a couple of pics for an

even easier way using AN fittings & a straight

swivel from the hydraulics house + soft Al tubing.

Paul

----------

PS, The hydraulic people only sell cad plated

steel fittings with the AN 37 deg flare.

PPS, I used a 90 deg bulkhead hyd fitting for the

fuel line where it penetrates the firewall. A

good upgrade for fire protection wherein it replaces the kit aluminum one.

PPPS,

With regard to the original issue of unequal tank

feed - Don is probably correct in that the

partially blocked vent is not the problem. Having

said that I sure would not want my vent line to

have any issues which is why I used the 90 deg fitting and SAE vent hose.

=============

At 03:04 PM 9/2/2006, you wrote:

 	  Quote:

Paul-

In my IV tanks, made in 1994, the vent opening

is so close to the top flange of the tank that

it would be impossible to use a 90° fitting,

because you would not be able to rotate it.

Where did you hear about "the preferred 90

degree fitting"?...and what makes it preferable?

Lynn

On Saturday, September 2, 2006, at 09:22  AM, PWilson wrote:

>

>

>Good point. It sounds like he used a straight

>fitting instead of the preferred 90 degree

>fitting at the vent to tank connection.

>  Paul

>==================

>At 06:57 AM 9/2/2006, you wrote:

>>Roger, it sounds like your right side fuel

>>vent is blocked.  It prevents air entry and so

>>retards fuel flow but at some point fuel does

>>flow some and this creates a vacuum that sucks the fuel from the other side.

>>

>>Barry

>

- The Matronics Kitfox-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Kitfox-List


Description:

Filesize:

28.59 KB

Viewed:

180 Time(s)


Description:

Filesize:

28.61 KB

Viewed:

224 Time(s)

kirkhull(at)sbcglobal.net
Guest

Posted: Mon Sep 04, 2006 11:07 am Post subject: Fuel feed problem vent for Kirk

thanks



--
