Posted: Wed Apr 15, 2015 5:34 am Post subject: Dual Control Stick Trim Switches Without Relays

Joel Graber designed and posted a circuit on VansAirforce that controls a trim servo motor using

Ray Allen G205 SPDT stick grip switches mounted on pilot and copilot control sticks.

No relays are required.  A PDF version can be download:

http://tinyurl.com/Trim-Circuit

Joel Graber has used this circuit in his RV-10 for over 600hrs.

In case of a runaway trim caused by a stuck switch or suicidal copilot, the opposite direction

button can be pressed and held until the fuse or breaker can be pulled.

I do not know if anyone else has thought of this wiring scheme before or not,

but I thought it both simple and ingenious.  Even the Ray Allen company thinks that relays

must be used for 2 control sticks.

Joe

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

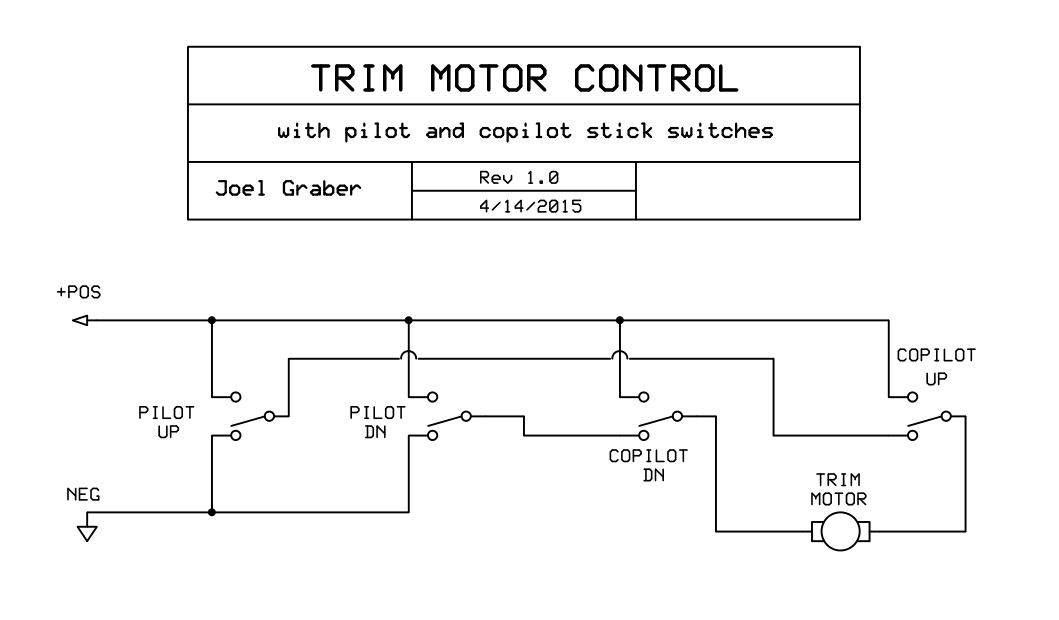

Trim Switch Circuit.jpg

Description:

Filesize:

54.48 KB

Viewed:

2169 Time(s)

_________________
Joe Gores
