philperry9
Joined: 23 Nov 2011
Posts: 381
|
 Posted: Wed Jun 03, 2015 5:45 pm Post subject: Missing step? 18-5 Fuel Tanks |
 |
|
Just curious. I'm trimming up my wing root fairings and am running into a problem. Going back, I think I've found it.
Attached is a photo of 18-5. They call for a dimple in the T-1005B (upper) shim. But the plans don't call for dimples in the T-1005C (lower) shim.
The skin is dimpled (as called for under in the wing attach section), but this substructure isn't.
Am I missing something in assuming these bottom shims need to be dimpled too? Or is there something I don't know/understand.
Phil
Sent from my iPhone
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
 |
philperry9
Joined: 23 Nov 2011
Posts: 381
|
| Posted: Wed Jun 03, 2015 5:45 pm Post subject: Missing step? 18-5 Fuel Tanks |
|
|

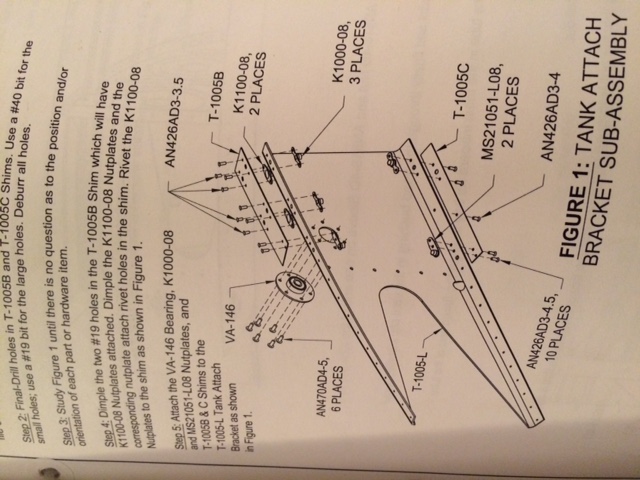

With photo this time.
Sent from my iPhone
| Quote: | On Jun 3, 2015, at 8:41 PM, Phillip Perry <philperry9(at)gmail.com> wrote:
Just curious. I'm trimming up my wing root fairings and am running into a problem. Going back, I think I've found it.
Attached is a photo of 18-5. They call for a dimple in the T-1005B (upper) shim. But the plans don't call for dimples in the T-1005C (lower) shim.
The skin is dimpled (as called for under in the wing attach section), but this substructure isn't.
Am I missing something in assuming these bottom shims need to be dimpled too? Or is there something I don't know/understand.
Phil
Sent from my iPhone
|
