Nose Gear Fairing

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

mhealydds

Joined: 17 May 2015
Posts: 30
Location: Wichita, KS

Posted: Sun Oct 11, 2015 3:06 pm Post subject: Nose Gear Fairing

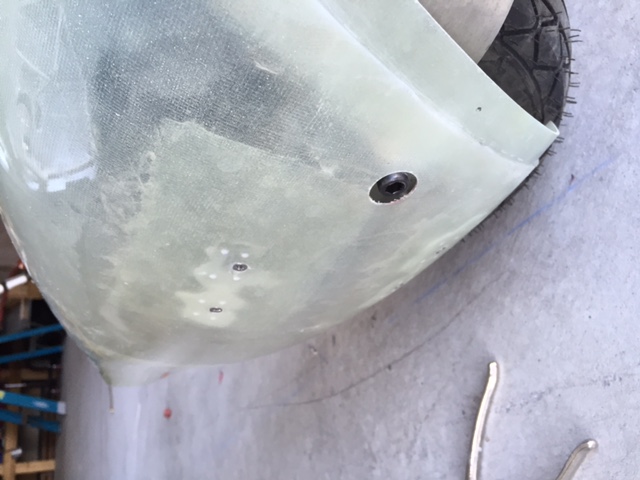

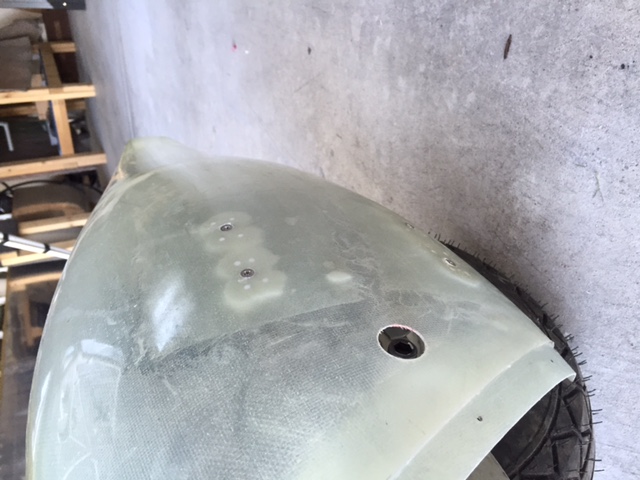

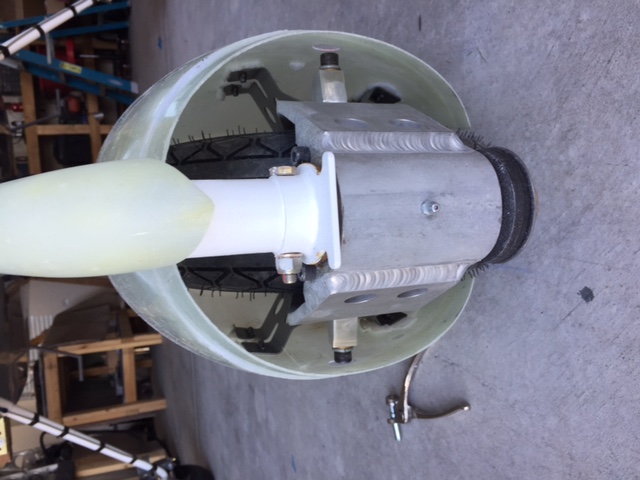

Got far into nose fairing and while fitting gear leg fairing I noticed that the fairing is off-center to the left of plane. I have attached pictures. Should I re-do and or replace fairing or is it OK to leave in flight?



Matt

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

102.25 KB

Viewed:

4258 Time(s)


Description:

Filesize:

88.02 KB

Viewed:

4258 Time(s)


Description:

Filesize:

95.61 KB

Viewed:

4258 Time(s)

cooprv7(at)yahoo.com
Guest

Posted: Sun Oct 11, 2015 3:49 pm Post subject: Nose Gear Fairing

Matt,

   You may get different opinions on this, but if it were me I’d just open the right side of the wheel gap to match the left side and press on.  A little extra room between the tire and fairing is a good thing in case the tire pressure gets a bit low.  Besides, nobody is ever going to notice that.



Marcus



do not archive

On Oct 11, 2015, at 7:06 PM, mhealydds <mhealydds(at)gmail.com> wrote:






Got far into nose fairing and while fitting gear leg fairing I noticed that the fairing is off-center to the left of plane. I have attached pictures. Should I re-do and or replace fairing or is it OK to leave in flight?



Matt





Read this topic online here:



http://forums.matronics.com/viewtopic.php?p=447831#447831





Attachments:



http://forums.matronics.com//files/img_1425_332.jpg

http://forums.matronics.com//files/img_1424_811.jpg

http://forums.matronics.com//files/img_1423_518.jpg

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

Bob Turner

Joined: 03 Jan 2009
Posts: 885
Location: Castro Valley, CA

Posted: Sun Oct 11, 2015 4:17 pm Post subject: Re: Nose Gear Fairing

Put the rear half on to see this better: is it offset, or canted left-right. If it's not straight I'd fix it. Offset only, I think I'd learn to live with it.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Bob Turner
RV-10 QB

rv10flyer

Joined: 25 Aug 2009
Posts: 364

Posted: Mon Oct 12, 2015 7:07 pm Post subject: Re: Nose Gear Fairing

I'd put longer bolts and bushings in there, so that fairing gets damaged less by tow bars. It will be fine. None of them fly perfect, so don't sweat it.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Wayne G.

Mauledriver(at)nc.rr.com
Guest

Posted: Tue Oct 13, 2015 5:23 am Post subject: Nose Gear Fairing

I'd second that suggestion.  My plane gets handled by FBO folks a lot

and the recessed solution really doesn't work. .  Stainless socket head

bolts sitting on oversize washers to protect the pant works really

well.  The specifics of that solution are in this forum.



I spent 8-9 years traveling with a  Maule whose tail wheel meant that I

got to park it and un-park it wherever I went.  It kept hangar/handling

rash to a minimum so I thought that's how I'd like my '10 handled.  But

I've learned to enjoy the pleasures of good FBO service where you can

pull up front, get help with the bags and be in and out in minutes if

desired (Wilson Air at KCLT is consistently the best at it - plane to

pre-cooled rental car with bags in trunk in under 6mins, smiles all around).



Bill "what Wayne said" Watson



On 10/12/2015 11:07 PM, rv10flyer wrote:

 	  Quote:




 I'd put longer bolts and bushings in there, so that fairing gets damaged less by tow bars. It will be fine. None of them fly perfect, so don't sweat it.



 --------

 Wayne G.





 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=447856#447856





 -----

 No virus found in this message.

 Checked by AVG - www.avg.com

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
