Question control system WD-1011 Page 39-8 Fig 3

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

glastar(at)gmx.net
Guest

Posted: Sun Oct 11, 2015 2:19 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

I'm currently rigging my control system (back at work after a 3 year     stop).

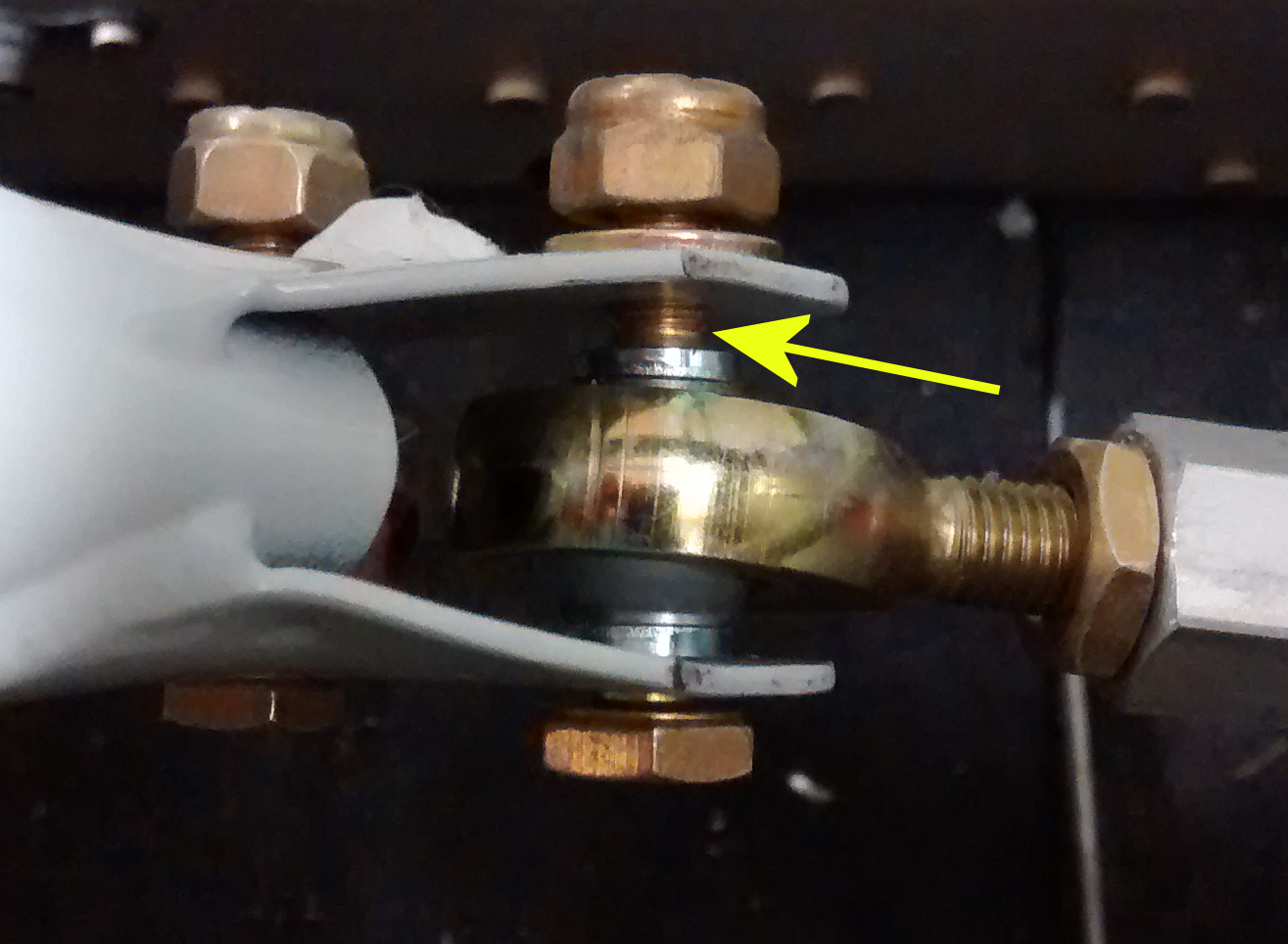

     just aligned everything last night and assembled loosely according     figure 3 but I have inside of WD-1011 a gap of at least 1/16"

     [img]cid:part1.03050103.06050105(at)gmx.net[/img]



     I doubt I can get the AN3 bolts as tight to close that gap without     overtorquing them.

     Did other people face the same issue or was their WD-1011 a close     fit?



     Many thanks for your help!



     Cheers Werner


Description:

Filesize:

1.81 MB

Viewed:

6112 Time(s)

bdgillespie215(at)gmail.c
Guest

Posted: Sun Oct 11, 2015 3:21 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

Werner:

From the photo, it looks like the lower flange may be bent down a bit leaving the two flanges more open at the outer edge. See if they are parallel or does one angle away.



Byron

N253RV Flying

Sent from my iPad



[quote] On Oct 11, 2015, at 6:15 AM, Werner Schneider <glastar(at)gmx.net> wrote:



 I'm currently rigging my control system (back at work after a 3 year stop)

glastar(at)gmx.net
Guest

Posted: Sun Oct 11, 2015 4:13 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

Thanks Byron, but that is only the angle under which the picture was

done, bot flanges in the area where the bolts are passing through are

pretty parallel. It's about 5/8" wide.



Cheers Werner



On 11.10.2015 13:15, Home wrote:

 	  Quote:
		   Werner:

  From the photo, it looks like the lower flange may be bent down a bit leaving the two flanges more open at the outer edge. See if they are parallel or does one angle away.



 Byron

 N253RV Flying

 Sent from my iPad

Jim Combs

Joined: 24 Jan 2010
Posts: 140
Location: Lexington, Ky

Posted: Sun Oct 11, 2015 5:03 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

On Oct 11, 2015 6:37 AM, "Werner Schneider" <glastar(at)gmx.net (glastar(at)gmx.net)> wrote: 	  Quote:
		                     I'm currently rigging my control system (back at work after a 3 year     stop).



     just aligned everything last night and assembled loosely according     figure 3 but I have inside of WD-1011 a gap of at least 1/16"

     [img]cid:part1.03050103.06050105(at)gmx.net[/img]



     I doubt I can get the AN3 bolts as tight to close that gap without     overtorquing them.

     Did other people face the same issue or was their WD-1011 a close     fit?



     Many thanks for your help!



     Cheers Werner


Description:

Filesize:

1.81 MB

Viewed:

6112 Time(s)

_________________
RV-10 -> N312F - Flying as of 12/2008

carl.froehlich(at)verizon
Guest

Posted: Sun Oct 11, 2015 5:49 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

As with all such end bearings, you must capture the bearing so that there is no relative motion between the bearing itself and the mount or bolt (i.e. all motion is the bearing inside the race).  Add washers as needed to fill the gap and torque holding bolt.  Recommend having about equal washers on each side of the end bearing.  It is helpful to have both AN960-10 and AN960-10L washers to make the best fit.  Do not deform the weldment as you want the weldment faces to be parallel to prevent binding.



I use a piece of masking tape folded over the edge of the washer to help insert into tight spaces.  Many techniques and some special tools out there for this.



Carl





From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Werner Schneider

Sent: Sunday, October 11, 2015 6:15 AM

To: rv10-list(at)matronics.com

Subject: Question control system WD-1011 Page 39-8 Fig 3



I'm currently rigging my control system (back at work after a 3 year stop).



just aligned everything last night and assembled loosely according figure 3 but I have inside of WD-1011 a gap of at least 1/16"




I doubt I can get the AN3 bolts as tight to close that gap without overtorquing them.

Did other people face the same issue or was their WD-1011 a close fit?



Many thanks for your help!



Cheers Werner


Description:

Filesize:

1.81 MB

Viewed:

6107 Time(s)

bdgillespie215(at)gmail.c
Guest

Posted: Sun Oct 11, 2015 5:51 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

Is the same spacing evident on both sides of WD-1011L and WD-1011R? If all the same, spacing, I would think others have seen the same issue. It could be possible that one flange was a bit out of place during welding. I have heard of some others seeing that on a few occasions.

I don't recall any significant spacing issues (some a bit tight or loose but not a lot). They will move some during tightening. I would use a " sacrificial" nut and bolt to tighten and see how much movement takes place. That way if over torqued, just discard the bolt/nut. If needed, you could add additional washer inside which may facilitate a longer AN3 bolt.

I actually opted to go with the drilled bolts, castle nuts and cotter pins on all of the control surfaces.

Byron

Sent from my iPad

 	  Quote:
		   On Oct 11, 2015, at 8:08 AM, Werner Schneider <glastar(at)gmx.net> wrote:

 Thanks Byron, but that is only the angle under which the picture was done, bot flanges in the area where the bolts are passing through are pretty parallel. It's about 5/8" wide.

 Cheers Werner

> On 11.10.2015 13:15, Home wrote:

> Werner:

> From the photo, it looks like the lower flange may be bent down a bit leaving the two flanges more open at the outer edge. See if they are parallel or does one angle away.

>

> Byron

> N253RV Flying

> Sent from my iPad

Kelly McMullen

Joined: 16 Apr 2008
Posts: 1188
Location: Sun Lakes AZ

Posted: Sun Oct 11, 2015 6:25 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

I agree with Carl to use either AN960-10 or -10L washers to take up the slack. I will have to take a look at mine to see if I had any issue there.

 I have no notes in my construction plans of any issue there.



IF you want to improve on the self-locking AN365 nuts, suggest you go to the current standard for control systems,

which is the MS17825 or MS17826 self locking castle nuts, so you have a belt and suspenders retention.



However, I know of no problems with the standard AN365 in Vans control systems.



Kelly



On Sun, Oct 11, 2015 at 6:47 AM, Home <bdgillespie215(at)gmail.com (bdgillespie215(at)gmail.com)> wrote:

[quote]--> RV10-List message posted by: Home <bdgillespie215(at)gmail.com (bdgillespie215(at)gmail.com)>





 I actually opted to go with the drilled bolts, castle nuts and cotter pins on all of the control surfaces.



 Byron

 Sent from my iPad











[b]

_________________
Kelly McMullen
A&P/IA, EAA Tech Counselor
KCHD

jesse(at)saintaviation.co
Guest

Posted: Sun Oct 11, 2015 6:26 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

I would be surprised if the gap didn't close when you torque the bolt. If it doesn't, just add an AN960-10 washer on the inside and either go with a longer bolt if necessary, or switch to an AN960-10L on the outside.



Jesse Saint

Saint Aviation, Inc.

352-427-0285

jesse(at)saintaviation.com



Sent from my iPad



 	  Quote:
		   On Oct 11, 2015, at 5:15 AM, Werner Schneider <glastar(at)gmx.net> wrote:



 I'm currently rigging my control system (back at work after a 3 year stop).



 just aligned everything last night and assembled loosely according figure 3 but I have inside of WD-1011 a gap of at least 1/16"

 <cghijhgb.png>



 I doubt I can get the AN3 bolts as tight to close that gap without overtorquing them.

 Did other people face the same issue or was their WD-1011 a close fit?



 Many thanks for your help!



 Cheers Werner

glastar(at)gmx.net
Guest

Posted: Sun Oct 11, 2015 10:27 am Post subject: Question control system WD-1011 Page 39-8 Fig 3

On 11.10.2015 15:47, Home wrote:

 	  Quote:




 Is the same spacing evident on both sides of WD-1011L and WD-1011R?





yes both the same



washers and a longer bolt would be an option. I've sent as well a

message to Van's support to get their statement. I was just a bit

surprised as otherwise the parts are fitting well. As this are the

primary control parts I rather would not like to experiment.



Thanks for all the ideas coming



Werner

Rich Hansen

Joined: 12 Oct 2015
Posts: 8

Posted: Mon Oct 12, 2015 12:38 pm Post subject: Re: Question control system WD-1011 Page 39-8 Fig 3

Werner,

Just went through the exact same issue  a few weeks ago.  I just used two of the smaller washers on the forward side of the rod end bearing and one on the aft end, all captured inside of the weldament.  I'm not even sure I had to use an "L" washer on the outside - and used the stock called for bolt.  Plenty of threads still remained.  Worked fine, no rubbing, no issues.

You might consider using a larger O/D washer on the most fwd side,  so as to minimize the  fwd/aft movement of the push rod should the bearing separate from inside of the rod end - it is still captured inside of the welded sleeves no matter what.

Although I think one could take up the slack by tightening the AN bolt/nut, this would undesirably stress the area (mounting sleeves) for no reason.

Am going out to hanger today and will double check - any change I'll let you know....

Also, please let us know what Vans says.  Maybe they made some changes and we need to make some changes as well!

Rich

RV-6A  1000+ hrs, sold

RV-10  close to cranking

_________________
Rich Hansen
RV-6A
RV-10

glastar(at)gmx.net
Guest

Posted: Mon Oct 12, 2015 1:24 pm Post subject: Question control system WD-1011 Page 39-8 Fig 3

Thanks Rich,



I actually went along as Jesse said 1h ago, torqued with 25 in lbs and

indeed it did close the gap and clamp all together, after the 2nd screw

I had to retorque the 1st one a 2nd time.



This puts some bending on the flanges, I will wait to hear from Van's

but think with that low pressure there is no harm, I was not expecting

that I could close with that little torque the gap.



Cheers Werner



On 12.10.2015 22:38, Rich Hansen wrote:

 	  Quote:




 Werner,

 Just went through the exact same issue  a few weeks ago.  I just used two of the smaller washers on the forward ..........
