user9253
Joined: 28 Mar 2008
Posts: 1935
Location: Riley TWP Michigan
|
 Posted: Wed May 18, 2016 1:09 am Post subject: ANL Fuse Rating |
 |
|
I have a 70 amp alternator and have a D180 with the dynon shunt. I also have a ANL-60 protecting the layout....should I replace that with a ANL-80?
Thanks
Don
The above was posted on VansAirforce by Don. I replied that 60 amp ANL should work fine. But decided to post it on the AeroElectric list to get more qualified opinions.
http://www.mouser.com/ds/2/87/Bus_Ele_DS_2024_ANL-348888.pdf
Joe
| | - The Matronics AeroElectric-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?AeroElectric-List |
|
_________________
Joe Gores |
|
| Back to top |
|
 |
nuckolls.bob(at)aeroelect
Guest
|
| Posted: Wed May 18, 2016 12:28 pm Post subject: ANL Fuse Rating |
|
|
At 04:09 AM 5/18/2016, you wrote:
| Quote: | --> AeroElectric-List message posted by: "user9253" <fransew(at)gmail.com>
I have a 70 amp alternator and have a D180 with the dynon shunt. I also have a ANL-60 protecting the layout....should I replace that with a ANL-80?
Thanks |

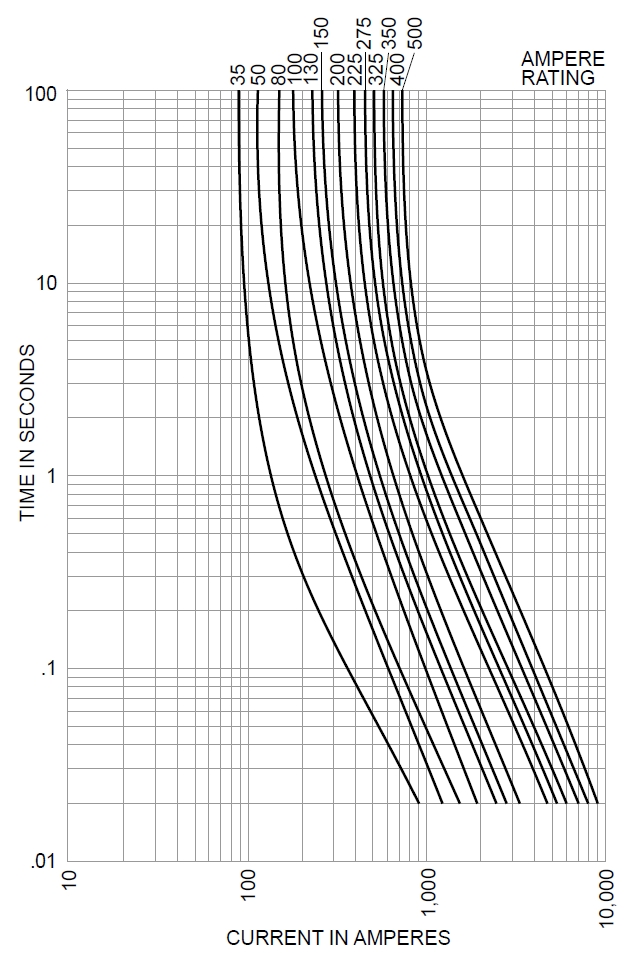

No, 60A will be fine. As you can see below,
even an ANL50 would not be severely stressed by
a 70A alternator . . .
[img]cid:7.1.0.9.0.20160518152152.01ef2328(at)aeroelectric.com.0[/img]
Bob . . .
| | - The Matronics AeroElectric-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?AeroElectric-List |
|
| Description: |
|
| Filesize: |
285.31 KB |
| Viewed: |
3649 Time(s) |
|
|
|
| Back to top |
|
|
user9253
Joined: 28 Mar 2008
Posts: 1935
Location: Riley TWP Michigan
|
| Posted: Wed May 18, 2016 1:02 pm Post subject: Re: ANL Fuse Rating |
|
|
Thanks Bob
| | - The Matronics AeroElectric-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?AeroElectric-List |
|
_________________
Joe Gores |
|
