Oil Cooler Bracket

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

jesse(at)itecusa.org
Guest

Posted: Wed Jan 03, 2007 7:06 am Post subject: Oil Cooler Bracket

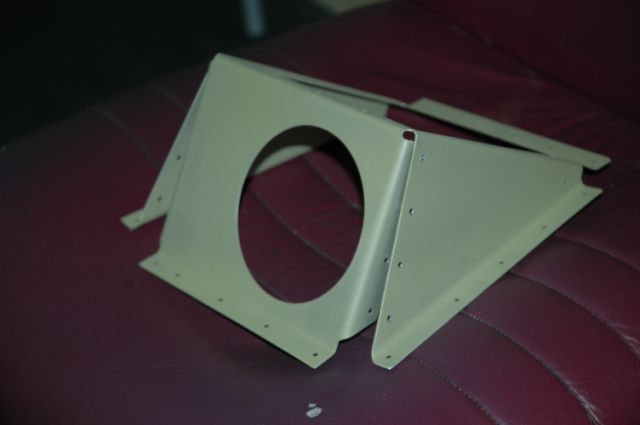

I have a question for those who have received FWF kits recently.  In the attached picture you can see the oil cooler bracket that I am working on.  Notice anything missing?  Van’s sent this to me, but it doesn’t have the flange for the scat tube.  Is it possible that they have modified the plans and we are supposed to rivet on a flange like goes on the baffles?  In the past it had the flange welded to the bracket.



Anybody else seen this?  I am going to call Van’s, but they haven’t opened yet.



Thanks.  Do not archive.



Jesse Saint

I-TEC, Inc.

jesse(at)itecusa.org (jesse(at)itecusa.org)

www.itecusa.org

Cell: 352-427-0285

Fax: 815-377-3694

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

17.03 KB

Viewed:

150 Time(s)

Tim(at)MyRV10.com
Guest

Posted: Wed Jan 03, 2007 7:24 am Post subject: Oil Cooler Bracket

Did they at least include the flange?  If not, then I'm sure it's just

a defect.  If so, perhaps it can be riveted and sealed.



Tim Olson - RV-10 N104CD - Flying

do not archive

Jesse Saint wrote:

 	  Quote:
		   I have a question for those who have received FWF kits recently.  In the

 attached picture you can see the oil cooler bracket that I am working

 on.  Notice anything missing?  Van’s sent this to me, but it doesn’t

 have the flange for the scat tube.  Is it possible that they have

 modified the plans and we are supposed to rivet on a flange like goes on

 the baffles?  In the past it had the flange welded to the bracket.







 Anybody else seen this?  I am going to call Van’s, but they haven’t

 opened yet.







 Thanks.  Do not archive.







 Jesse Saint



 I-TEC, Inc.



 jesse(at)itecusa.org <mailto:jesse(at)itecusa.org>



 www.itecusa.org <http://www.itecusa.org>



 Cell: 352-427-0285



 Fax: 815-377-3694









 ------------------------------------------------------------------------

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

jesse(at)itecusa.org
Guest

Posted: Wed Jan 03, 2007 7:40 am Post subject: Oil Cooler Bracket

The didn't include anything else.  I have an e-mail in to them.  Bruce in

tech support said it is probably a manufacturing defect, but "I don't know

much about parts" was his comment.



Jesse Saint

I-TEC, Inc.

jesse(at)itecusa.org

www.itecusa.org

Cell: 352-427-0285

Fax: 815-377-3694

--

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

Deems Davis

Joined: 09 Jan 2006
Posts: 925

Posted: Wed Jan 03, 2007 7:43 am Post subject: Oil Cooler Bracket

Jesse, I received mine recently and the scat tube ring is attached and

it's not riveted but welded (tack) to the oil cooler bracket.



Deems Davis # 406

Finishing - ( A Misnomer ! )

http://deemsrv10.com/



Mounting engine today !!!!!!!



Jesse Saint wrote:



 	  Quote:
		   I have a question for those who have received FWF kits recently. In

 the attached picture you can see the oil cooler bracket that I am

 working on. Notice anything missing? Van’s sent this to me, but it

 doesn’t have the flange for the scat tube. Is it possible that they

 have modified the plans and we are supposed to rivet on a flange like

 goes on the baffles? In the past it had the flange welded to the bracket.



 Anybody else seen this? I am going to call Van’s, but they haven’t

 opened yet.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

armywrights(at)adelphia.n
Guest

Posted: Wed Jan 03, 2007 7:09 pm Post subject: Oil Cooler Bracket

Got mine last week.  Flange was welded on but it sure was a bear to rivet to the firewall.



Rob Wright

#392

Fuse and Misc





From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Jesse Saint

 Sent: Wednesday, January 03, 2007 9:06 AM

 To: rv10-list(at)matronics.com

 Subject: Oil Cooler Bracket





I have a question for those who have received FWF kits recently.  In the attached picture you can see the oil cooler bracket that I am working on.  Notice anything missing?  Van’s sent this to me, but it doesn’t have the flange for the scat tube.  Is it possible that they have modified the plans and we are supposed to rivet on a flange like goes on the baffles?  In the past it had the flange welded to the bracket.



Anybody else seen this?  I am going to call Van’s, but they haven’t opened yet.



Thanks.  Do not archive.



Jesse Saint

I-TEC, Inc.

jesse(at)itecusa.org (jesse(at)itecusa.org)

www.itecusa.org

Cell: 352-427-0285

Fax: 815-377-3694



       [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
