 Posted: Mon Jan 08, 2007 1:04 pm Post subject: Where to mount a strobe |
 |
|
I have a single strobe light I need to mount on my Firefly. Is there a "best" or standard place to put it for maximum visibility to other traffic?
Thanks,
Jim
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Jim
N. Idaho |
|
| Back to top |
|
 |
planecrazzzy
Guest
|
| Posted: Mon Jan 08, 2007 1:10 pm Post subject: Re: Where to mount a strobe |
|
|

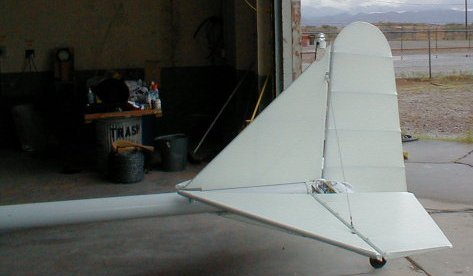

Here's where I stuck mine....I only have one.
.
.
Gotta Fly...
Mike in MN
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
47.44 KB |
| Viewed: |
417 Time(s) |
|
|
|
| Back to top |
|
|
Russ Kinne
Joined: 27 Jan 2006
Posts: 182
|
| Posted: Mon Jan 08, 2007 2:02 pm Post subject: Where to mount a strobe |
|
|
Jim
FWIW I think top of the rudder is best for a single strobe (not too
heavy; watch balance) You'll be most visible to traffic above you,
should be good for any low-flying craft. If you can have two, put
them on wingtips
Do not archive
On Jan 8, 2007, at 4:04 PM, jim wrote:
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
|
|
| Back to top |
|
|
beauford(at)tampabay.rr.c
Guest
|
| Posted: Mon Jan 08, 2007 4:33 pm Post subject: Where to mount a strobe |
|
|

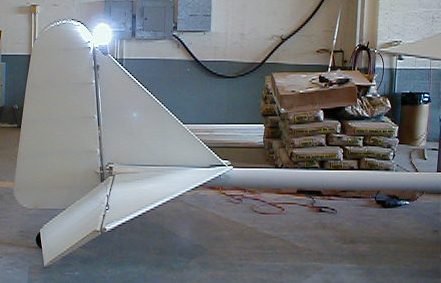

Here's another mounting possibility...This is a Kuntzleman SC-103.
Quiet Beauford
FF #076
---
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
60.44 KB |
| Viewed: |
380 Time(s) |
|
|
|
| Back to top |
|
|
biglar
Joined: 14 Jan 2006
Posts: 457
|
| Posted: Mon Jan 08, 2007 5:59 pm Post subject: Where to mount a strobe |
|
|

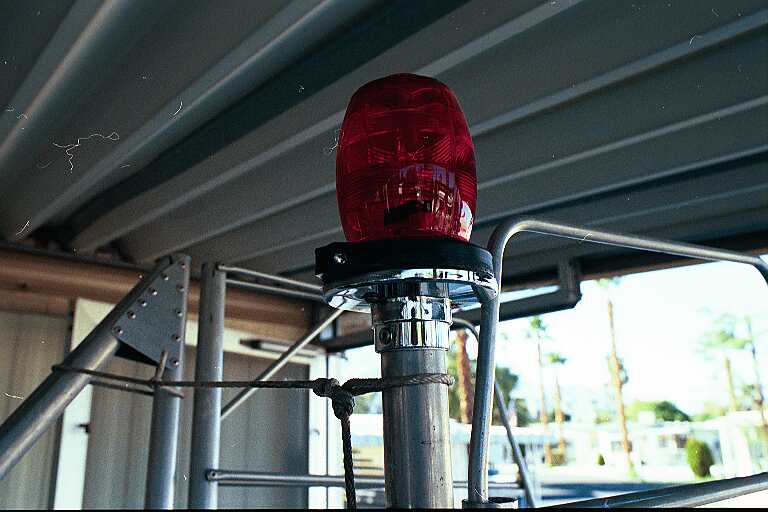

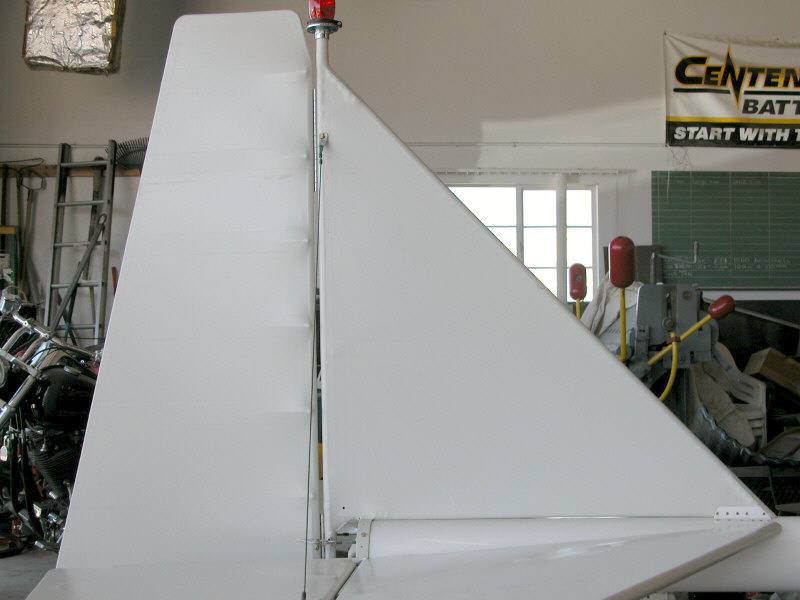

Here's another idea - this one on a Mk III. The red strobe is from Aircraft
Spruce, the chrome mount is a shower pipe cover from Ace Hardware.
Lar.
Larry Bourne
Santa Fe, NM
www.gogittum.com
---
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
42.06 KB |
| Viewed: |
380 Time(s) |
|
| Description: |
|
| Filesize: |
66.52 KB |
| Viewed: |
414 Time(s) |
|
_________________
Larry Bourne
Palm Springs, CA
Building Kolb Mk IIIC
"Vamoose" |
|
| Back to top |
|
|
jim
Joined: 03 Nov 2006
Posts: 107
Location: N. Idaho
|
| Posted: Tue Jan 09, 2007 7:45 am Post subject: Re: Where to mount a strobe |
|
|
Thanks for everybody's input. The pictures were very helpful.
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Jim
N. Idaho |
|
| Back to top |
|
|
Dennis.Kirby(at)kirtland.
Guest
|
| Posted: Tue Jan 09, 2007 8:07 am Post subject: Where to mount a strobe |
|
|
<< I have a single strobe light I need to mount on my Firefly. Is there
a "best" or standard place to put it for maximum visibility to other
traffic? Thanks, Jim >>
Jim -
I've heard that mounting your strobe high up on your vertical fin offers
the best overall visibility for a single-point location. I mounted my
Kuntzleman strobe on the leading edge of the fin, near the top.
Dennis Kirby
Mark-3, 912ul, Powerfin-72
Cedar Crest, NM
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
|
|
| Back to top |
|
|
WillUribe(at)aol.com
Guest
|
| Posted: Tue Jan 09, 2007 9:51 am Post subject: Where to mount a strobe |
|
|

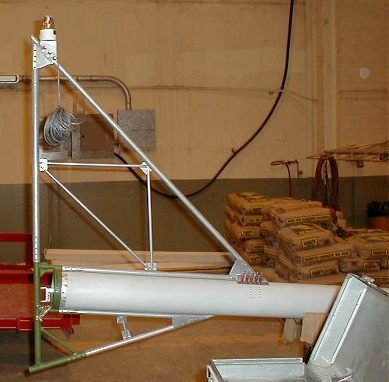

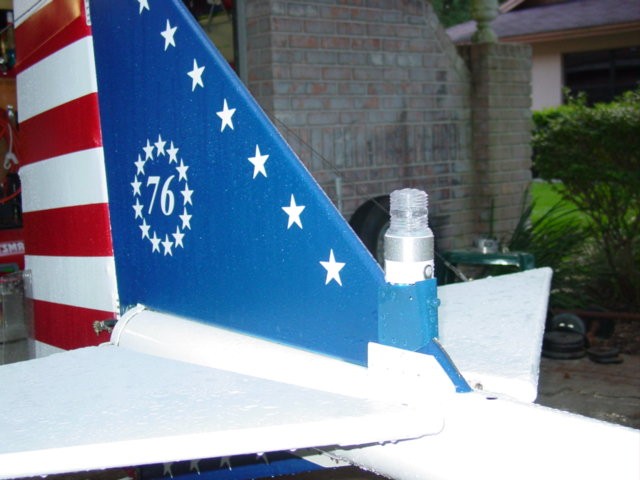

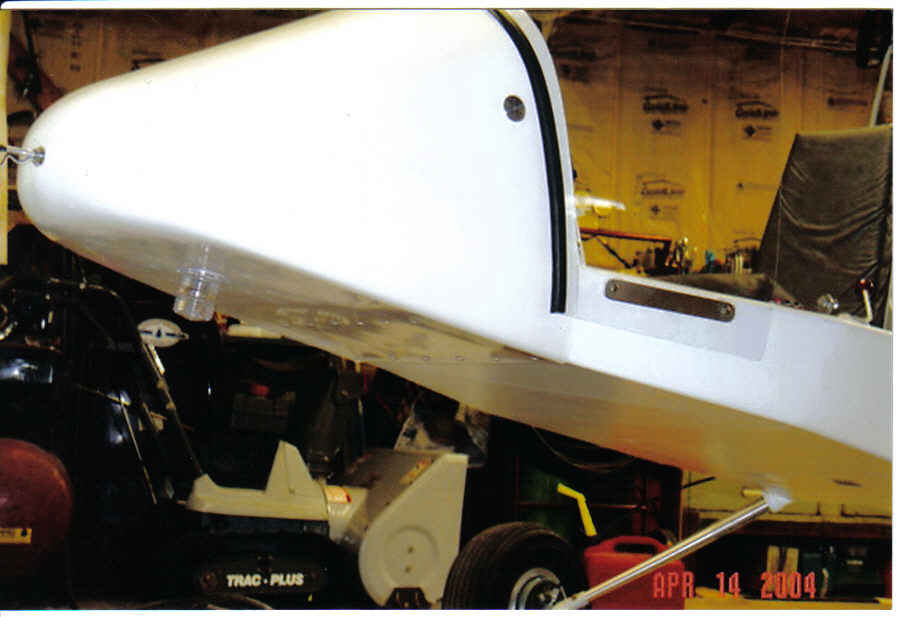

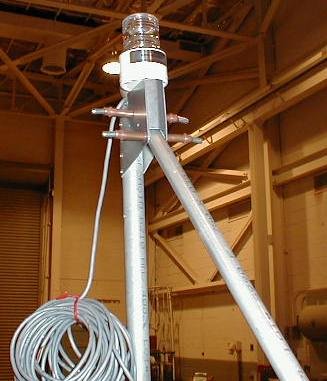

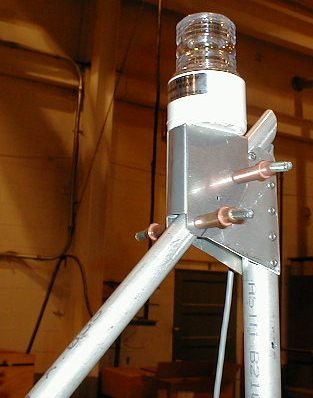

Here is how I mounted my Kuntzleman strobe.
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
10.35 KB |
| Viewed: |
391 Time(s) |
|
| Description: |
|
| Filesize: |
29.17 KB |
| Viewed: |
371 Time(s) |
|
| Description: |
|
| Filesize: |
31.56 KB |
| Viewed: |
362 Time(s) |
|
| Description: |
|
| Filesize: |
24.87 KB |
| Viewed: |
359 Time(s) |
|
| Description: |
|
| Filesize: |
24.09 KB |
| Viewed: |
386 Time(s) |
|
| Description: |
|
| Filesize: |
21.24 KB |
| Viewed: |
381 Time(s) |
|
|
|
| Back to top |
|
|
jim
Joined: 03 Nov 2006
Posts: 107
Location: N. Idaho
|
| Posted: Tue Jan 09, 2007 10:41 am Post subject: Where to mount a strobe |
|
|
It looks like the top of the v stab is where the overwhelming majority put
the stobe. I think I'll be putting it there too.
Thanks for your response.
Jim Dunn
N. Idaho
| Quote: |
<Dennis.Kirby(at)kirtland.af.mil>
<< I have a single strobe light I need to mount on my Firefly. Is there
a "best" or standard place to put it for maximum visibility to other
traffic? Thanks, Jim >>
Jim -
I've heard that mounting your strobe high up on your vertical fin offers
the best overall visibility for a single-point location. I mounted my
Kuntzleman strobe on the leading edge of the fin, near the top.
Dennis Kirby
Mark-3, 912ul, Powerfin-72
Cedar Crest, NM
|
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Jim
N. Idaho |
|
| Back to top |
|
|
biglar
Joined: 14 Jan 2006
Posts: 457
|
| Posted: Tue Jan 09, 2007 3:44 pm Post subject: Where to mount a strobe |
|
|
Well, ya can't be all bad, living where you do. Lar, once
from Weippe, ID. Do not Archive.
Larry Bourne
Santa Fe, NM
www.gogittum.com
---
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Larry Bourne
Palm Springs, CA
Building Kolb Mk IIIC
"Vamoose" |
|
| Back to top |
|
|
jim
Joined: 03 Nov 2006
Posts: 107
Location: N. Idaho
|
| Posted: Tue Jan 09, 2007 3:57 pm Post subject: Re: Where to mount a strobe |
|
|
About now I wish I lived farther south. We've had at least 4 bouts of storm-force winds, twice over 60mph peak gusts 69mph (I'm glad I have a hangar rated for 90mph).
Last Sunday I spent 3 hours plowing snow then ran out of daylight and couldn't fly. I'm off the next 5 days and hope to fly-fly-fly, although winds are forcast 20k tonight & Thu.
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Jim
N. Idaho |
|
| Back to top |
|
|
John Hauck
Joined: 09 Jan 2006
Posts: 4639
Location: Titus, Alabama (hauck's holler)
|
| Posted: Tue Jan 09, 2007 4:08 pm Post subject: Where to mount a strobe |
|
|
I'm off the next 5 days and hope to fly-fly-fly, although winds are
forcast 20k tonight & Thu.
|
| --------
| Jim
Jim:
Always look at the bright side. Seems you'll be saving lots of tire
rubber taking advantage of 20 kt winds, short take off and landing
roll.
john h
mkIII
DO NOT ARCHIVE
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
John Hauck
MKIII/912ULS
hauck's holler
Titus, Alabama |
|
