Posted: Tue Mar 13, 2007 7:31 pm Post subject: 914 Home grown 10MM Banjo 2 of 2

On Tue, Mar 13, 2007, rparigor(at)suffolk.lib.ny.us said:



 	  Quote:

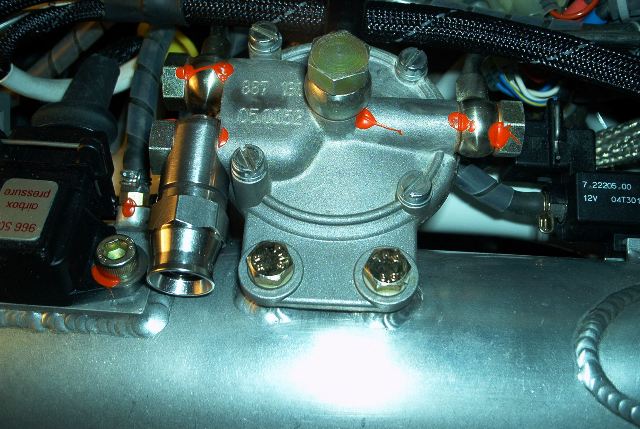

		   Completed Home grown 10mm to -6 Banjo for Aeroquip 666 Teflon hose with

 conductive lining.



 The 666 is smaller OD than other -6 hoses and allows me to plumb 914 from

 201B Flowscan senders under Airbrake horn, through firewall between

 footwell and UCMF.



 Made it out of 416 Stainless, replicating Aeroquips reusable fitting

 design.



 I used Aeroquip Olive and Nut.



 Ron Parigoris







--

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

66.38 KB

Viewed:

220 Time(s)

n100rh(at)sbcglobal.net
Guest

Posted: Tue Mar 13, 2007 8:20 pm Post subject: 914 Home grown 10MM Banjo 2 of 2

Looks like really nice work,



Ralph



rparigor(at)suffolk.lib.ny.us wrote:

 	  Quote:
		   On Tue, Mar 13, 2007, rparigor(at)suffolk.lib.ny.us said:





> Completed Home grown 10mm to -6 Banjo for Aeroquip 666 Teflon hose with

> conductive lining.

>

> The 666 is smaller OD than other -6 hoses and allows me to plumb 914 from

> 201B Flowscan senders under Airbrake horn, through firewall between

> footwell and UCMF.

>

> Made it out of 416 Stainless, replicating Aeroquips reusable fitting

> design.

>

> I used Aeroquip Olive and Nut.

>

> Ron Parigoris

>

>







 ------------------------------------------------------------------------

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

europa(at)pstewart.f2s.co
Guest

Posted: Wed Mar 14, 2007 9:42 am Post subject: 914 Home grown 10MM Banjo 2 of 2

Ron

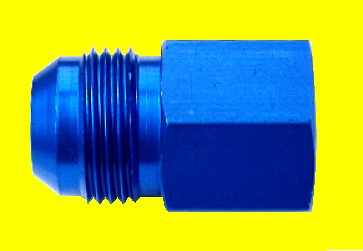

Very neat solution. The only other way I can find to get round it is

Speed flow (www.speedflow.co.uk) do 10mm banjo /AN fittings but the

largest is a AN-04   see attached pics. You would need to put a -o6

to 04 reducer in as well - not ideal. At present I'm planning to

stick with the standard banjo and a hose clamp.



Regards



Paul

G-GIDY





<pre><b><font size  color="#000000" face="courier new,courier">

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

7.09 KB

Viewed:

1587 Time(s)


Description:

Filesize:

6.42 KB

Viewed:

1588 Time(s)

rparigor(at)suffolk.lib.n
Guest

Posted: Wed Mar 14, 2007 10:11 am Post subject: 914 Home grown 10MM Banjo 2 of 2

Hello Paul



I searched extensive, could not find anything suitable.

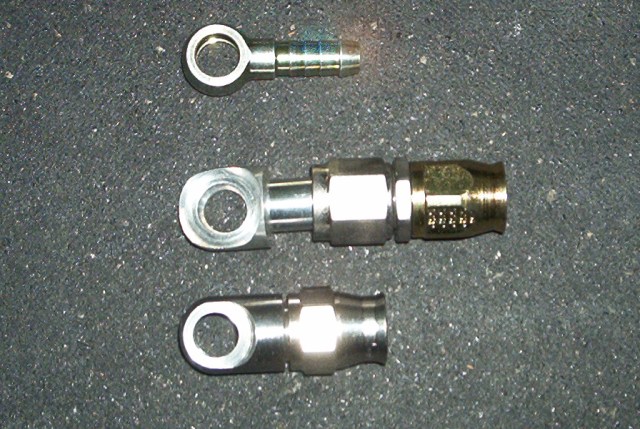

My first thought was to make a 10MM Banjo to -6 adapter. You can see the

middle mock up I hacked out of aluminium. A bit long but would have

worked.



Shorter and lighter is better IMHO.



Ron Parigoris

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

100.24 KB

Viewed:

252 Time(s)

rparigor(at)suffolk.lib.n
Guest

Posted: Wed Mar 14, 2007 10:11 am Post subject: 914 Home grown 10MM Banjo 2 of 2

Hello Paul



I searched extensive, could not find anything suitable.



My first thought was to make a 10MM Banjo to -6 adapter. You can see the

middle mock up I hacked out of aluminium. A bit long but would have

worked.



Shorter and lighter is better IMHO.



Ron Parigoris

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

100.24 KB

Viewed:

221 Time(s)

rparigor(at)suffolk.lib.n
Guest

Posted: Wed Mar 14, 2007 10:12 am Post subject: 914 Home grown 10MM Banjo 2 of 2

Hello Paul



I searched extensive, could not find anything suitable.



My first thought was to make a 10MM Banjo to -6 adapter. You can see the

middle mock up I hacked out of aluminium. A bit long but would have

worked.



Shorter and lighter is better IMHO.



Ron Parigoris

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

100.24 KB

Viewed:

234 Time(s)

fklein(at)orcasonline.com
Guest

Posted: Wed Mar 14, 2007 7:04 pm Post subject: 914 Home grown 10MM Banjo 2 of 2

Ron...you're quite a "hacker"!



Fred



do not archive



On Wednesday, March 14, 2007, at 10:10  AM,

<rparigor(at)suffolk.lib.ny.us> wrote:



 	  Quote:
		   You can see the

 middle mock up I hacked out of aluminium. A bit long but would have

 worked.



 Shorter and lighter is better IMHO.



 Ron Parigoris



 <(at)2 Middle was mock up for -6 adapter.JPG>
