Posted: Tue May 22, 2007 4:01 am Post subject: Baggage floor

Hello group ,question .When riveting the baggage  floor onto the side "L" angles the top longerons interfere with the rivet gun  .How is this best handled .   Thanks                      Wade Jones    South Texas

601XL plans building

Cont. 0200

   [quote][b]

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

rogers_pritchard(at)yahoo
Guest

Posted: Tue May 22, 2007 5:20 am Post subject: Baggage floor

Wade,



  Rivet the rear most L angels to the floor first and use a hand rivet gun with the nose



  piece ground on one side to fit in close where it will fit under the longeron.



  Roger,  also in NH





wade jones <wjones(at)brazoriainet.com> wrote:

  [quote]        Hello group ,question .When riveting the baggage floor onto the side "L" angles the top longerons interfere with the rivet gun .How is this best handled .  Thanks                     Wade Jones    South Texas

601XL plans       [url=http://us.rd.yahoo.com/evt=48226/*http://new.toolbar.yahoo.com/toolbar/features/norton/index.php]Get the free Yahoo! toolbar[/url] and rest assured with the added security of spyware protection.   [quote][b]

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

heatonhe36(at)msn.com
Guest

Posted: Tue May 22, 2007 5:40 am Post subject: Baggage floor

Wade,



I riveted the side "L" angles to the baggage floor first, then the assembly

can be folded about the center line and positioned under the longerons.



Herb

 	  Quote:
		  Hello group ,question .When riveting the baggage floor onto the side "L"

angles the top longerons interfere with the rivet gun .How is this best

handled .  Thanks                     Wade Jones    South Texas

601XL plans building

Cont. 0200

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

Jaybannist(at)cs.com
Guest

Posted: Tue May 22, 2007 7:29 am Post subject: Baggage floor

I did the same, except that I went one step further.  I split the baggage floor down the middle to ease the handling (w/ ZAC approval).  I riveted an .025 doubler under the seam.  Sure made it easier to manage.

Jay in Dallas

"Herbert Heaton" <heatonhe36(at)msn.com> wrote:

 	  Quote:

Wade,

I riveted the side "L" angles to the baggage floor first, then the assembly

can be folded about the center line and positioned under the longerons.

Herb

>Hello group ,question .When riveting the baggage floor onto the side "L"

>angles the top longerons interfere with the rivet gun .How is this best

>handled .  Thanks                     Wade Jones    South Texas

>601XL plans building

>Cont. 0200

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

billsewell(at)gmail.com
Guest

Posted: Tue May 22, 2007 7:40 am Post subject: Baggage floor

I riveted the L angles to the baggage floor and then installed the baggage floor into the fuselage and riveted the side skins to the angles.  Leave the baggage floor traverse L angles off until the floor is installed.  This way, you can bow the baggage floor to get it under the top longerons.



 Bill Sewell

 N601BZ





 On 5/22/07, wade jones <wjones(at)brazoriainet.com (wjones(at)brazoriainet.com)> wrote: [quote]  Hello group ,question .When riveting the baggage floor onto the side "L" angles the top longerons interfere with the rivet gun .How is this best handled .  Thanks                      Wade Jones    South Texas

601XL plans building

Cont. 0200

 	  Quote:





[b]

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

DaveG601XL

Joined: 27 Oct 2006
Posts: 351
Location: Cincinnati, Oh

Posted: Tue May 22, 2007 7:45 am Post subject: Re: Baggage floor

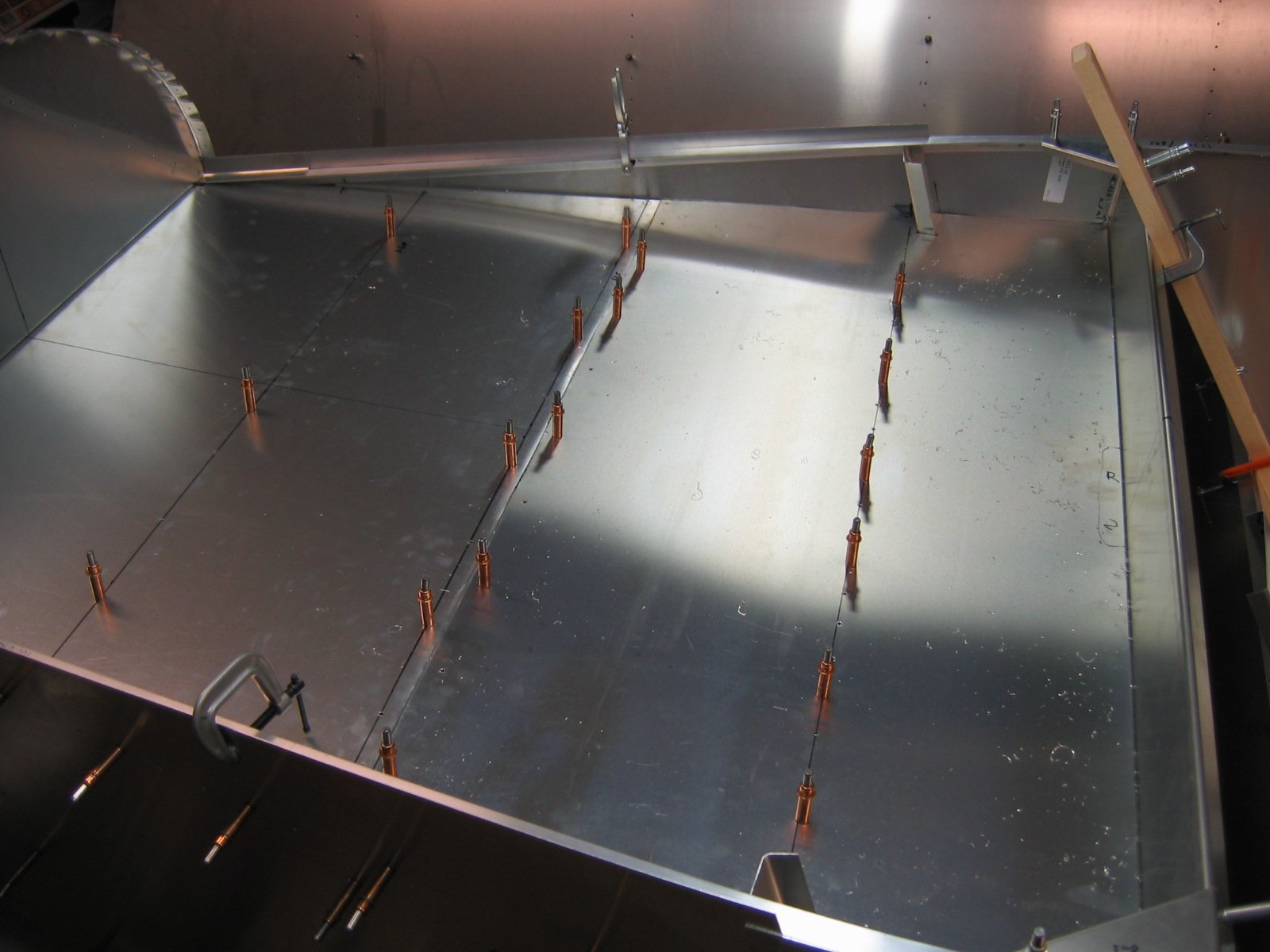

I did what Jay did and split the floor down the middle.  If my attached picture worked, you can see the double row of cleco's where I substituted a u-channel for the L-angle.  The aft floor will have the side L-angles riveted to it before placing the floor in the fuselage due to the longeron proximity.  The forward baggage floor will be left un-riveted until close to the end.



Good luck,

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List


Description:

Filesize:

187.38 KB

Viewed:

445 Time(s)

_________________
David Gallagher
Cincinnati, OH area

Gig Giacona

Joined: 10 Jan 2006
Posts: 1416
Location: El Dorado Arkansas USA

Posted: Tue May 22, 2007 8:57 am Post subject: Re: Baggage floor

Damn, I wish I'd thought of that.



Do Not Archive

 	  Jaybannist(at)cs.com wrote:
		  I did the same, except that I went one step further.  I split the baggage floor down the middle to ease the handling (w/ ZAC approval).  I riveted an .025 doubler under the seam.  Sure made it easier to manage.



Jay in Dallas

- The Matronics Zenith-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith-List

_________________
W.R. "Gig" Giacona
601XL Under Construction
See my progress at www.peoamerica.net/N601WR

wjones(at)brazoriainet.co
Guest

Posted: Tue May 22, 2007 5:34 pm Post subject: Baggage floor

Thanks to all that replied to my baggage floor  problem .I got some good ideas from you .I have spent too much time in this area  , seems more difficult than it should be . Thanks again.

 Wade Jones    South Texas

601XL plans building

Cont.  0200
