 Posted: Sun Jun 24, 2007 2:24 pm Post subject: Nylon Conduit Routing in Wing |
 |
|

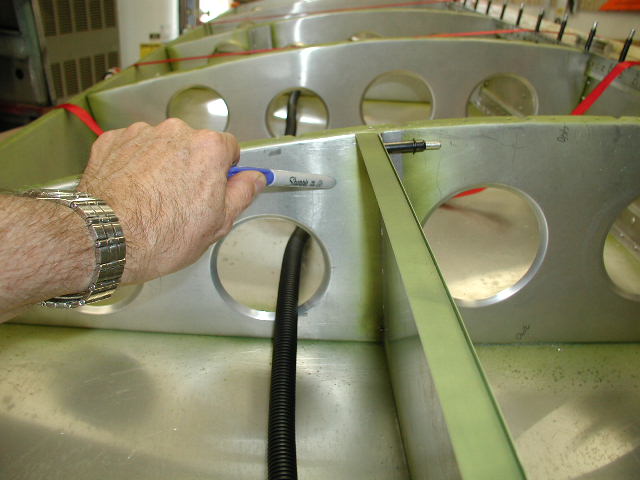

Working on wiring up my left wing (601XL) and I bought this nylon wire conduit from the Van's site. I'd like to keep it out of the wing locker area if possible and also clear of the two aft rear rib holes for the aileron cables. I'm thinking of routing the conduit at the point recommended on 6-LLO-1, 480mm aft of the spar and 40mm down from the top flange of the rear rib. See the pic attached. My question is will this area support a hole large enough for my conduit (about 7/8") without negatively impacting the structure of the rear rib. I may call ZAC tomorrow to get their input, but I'm sure someone has been down this path before. Thanks.
Dave Gardea
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
| Description: |
|
| Filesize: |
56.59 KB |
| Viewed: |
413 Time(s) |
|
_________________
Dave Gardea
CH650 - Corvair - flying!
http://n631dg.t15.org/home.html |
|
| Back to top |
|
 |
burbby
Joined: 22 Oct 2006
Posts: 34
Location: Millsap, TX
|
| Posted: Sun Jun 24, 2007 2:46 pm Post subject: Nylon Conduit Routing in Wing |
|
|
This is where I placed my conduit for electrical. Maybe this will help.
Thanks
Gary
Millsap, TX
Now that's room service! Choose from over 150,000 hotels
in 45,000 destinations on Yahoo! Travel to find your fit.
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
| Description: |
|
| Filesize: |
81.7 KB |
| Viewed: |
395 Time(s) |
|
|
|
| Back to top |
|
|
dredmoody(at)cox.net
Guest
|
| Posted: Sun Jun 24, 2007 3:03 pm Post subject: Nylon Conduit Routing in Wing |
|
|

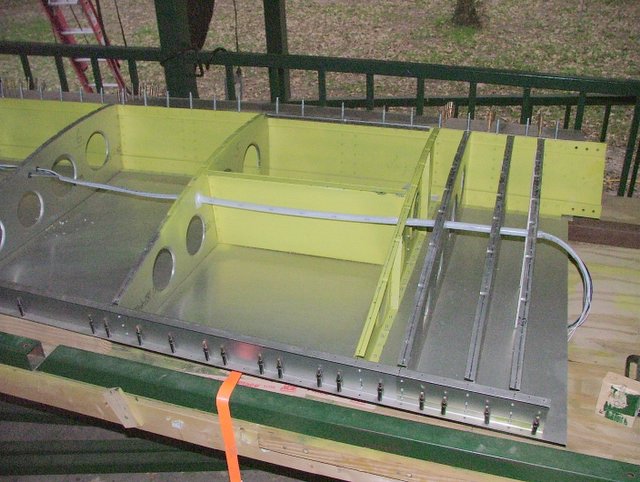

Dave what I did was to suspend my conduit in the first set of lightening holes aft of the spar. I made hangers out of 6061-T6 .016" and drilled them out with a Unibit to accept the correct grommet for the OD of my conduit. The hangers are rivetted to each rib along the way. I used thinwall aluminum tubing fron AS for the conduit. The connectors at the wingroot will enter the fuselage under the front seat support where the spar bolt access plate lets me get to them. I think the photo is small enough not upset anyone.
Dred
[quote] ---
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
| Description: |
|
| Filesize: |
272.42 KB |
| Viewed: |
399 Time(s) |
|
|
|
| Back to top |
|
|
planecrazydld(at)yahoo.co
Guest
|
| Posted: Mon Jun 25, 2007 2:29 am Post subject: Nylon Conduit Routing in Wing |
|
|
This reply is not meant to replace the call to ZAC but a 1" hole at that location, if made with uniform circularity and with a polished edge should be invisible to the structure. If concerned, flange the hole 1/4" x 45°.
"dgardea(at)gmail.com" <dgardea(at)gmail.com> wrote:[quote] --> Zenith-List message posted by: "dgardea(at)gmail.com"
Working on wiring up my left wing (601XL) and I bought this nylon wire conduit from the Van's site. I'd like to keep it out of the wing locker area if possible and also clear of the two aft rear rib holes for the aileron cables. I'm thinking of routing the conduit at the point recommended on 6-LLO-1, 480mm aft of the spar and 40mm down from the top flange of the rear rib. See the pic attached. My question is will this area support a hole large enough for my conduit (about 7/8") No need to miss a message. [url=http://us.rd.yahoo.com/evt=43910/*http://mobile.yahoo.com/mail ]Get email on-the-go [/url]
with Yahoo! Mail for Mobile. [url=http://us.rd.yahoo.com/evt=43910/*http://mobile.yahoo.com/mail ]Get started.[/url] [quote][b]
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
n85ae
Joined: 14 Mar 2007
Posts: 403
|
| Posted: Mon Jun 25, 2007 11:08 am Post subject: Re: Nylon Conduit Routing in Wing |
|
|
I made some aluminum L's, bent them into J's riveted them to the ribs
and cable tied my conduit to the J's, exactly where your conduit is routed
in the pic.
Jeff hays
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
dgardea(at)gmail.com
Joined: 26 Mar 2007
Posts: 50
Location: Indianapolis, IN
|
| Posted: Mon Jun 25, 2007 12:16 pm Post subject: Re: Nylon Conduit Routing in Wing |
|
|
Thanks to everyone for their replies. This is certainly a helpful group and I'm glad to be in this builder community. I did call ZAC today. Advice was that maybe my 7/8" conduit was too large for what I'd be running thru it. Zac takes the approach of bundling the wires and pitot tubes together with zip ties and routing thru the same point in the rear ribs, but with a hole that's a half inch in diameter. They recommended keeping the edge of any hole in the rib at least 20mm from the lightening hole and top flange.
Regards,
Dave
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
_________________
Dave Gardea
CH650 - Corvair - flying!
http://n631dg.t15.org/home.html |
|
