 Posted: Wed Jan 02, 2008 9:31 am Post subject: 601XL Motor Mount Dimension along 6B6-3 (Corvair) |
 |
|
Could somebody who has a WW 601XL Motor Mount in hand confirm a dimension for me...?
I'd like to get verification of the distance from "pilot hole center to pilot hole center" on 6B6-3 (the Firewall Side Stiffener).

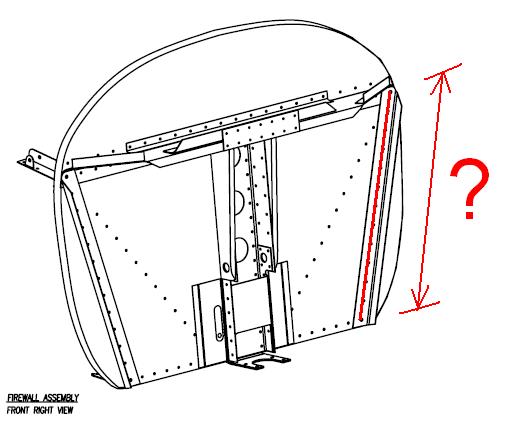

Since a picture is worth a thousand words, I've attached a couple of drawings that show exactly what I'm looking for.
I have calculated this distance needs to be 476 mm, and my pilot holes seem to bear this out.
But still, I'd sure feel better if I knew for sure what the center-to-center distance is on an actual Corvair motor mount actually is. I couldn't find this in the archives anyplace, and I don't have an actual WW motor mount in hand yet to measure for myself.
Thanks,
Pat
XL/Corvair
N63PZ
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
| Description: |
|
| Filesize: |
31.75 KB |
| Viewed: |
310 Time(s) |
|
| Description: |
|
| Filesize: |
22.98 KB |
| Viewed: |
319 Time(s) |
|
|
|
| Back to top |
|
 |
barcusc(at)comcast.net
Guest
|
| Posted: Wed Jan 02, 2008 9:57 am Post subject: 601XL Motor Mount Dimension along 6B6-3 (Corvair) |
|
|
Pat,
The motor mount I purchased from WW was not exactly the same as the holes in
my firewall which were to Zenith spec. I called William and he said the
mounts have some spring in them and to pull it into position, it worked just
as he said. I no longer have the Corvair engine and mount so I can't measure
how far it was out but I think it was about 2 or 3mm. I decided to go with a
Continental because my family said they would not fly with me if I used the
Corvair, not because of any concern on my part.
Regards.
Clyde Barcus
---
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
Afterfxllc(at)aol.com
Guest
|
| Posted: Wed Jan 02, 2008 5:07 pm Post subject: 601XL Motor Mount Dimension along 6B6-3 (Corvair) |
|
|
I just measured mine and they are 475 mm center to center.
top rated recipes and easy ways to stay in shape for winter.
[quote][b]
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
PatrickW
Joined: 27 Oct 2006
Posts: 380
Location: Fort Worth, Texas
|
| Posted: Wed Jan 02, 2008 6:57 pm Post subject: Re: 601XL Motor Mount Dimension along 6B6-3 (Corvair) |
|
|
| Afterfxllc wrote: | | I just measured mine and they are 475 mm center to center. |
Excellent. That helps me. Thanks.
Upward and onward.
Pat
XL/Corvair
