Silpruf Window installation

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

drfred(at)suddenlinkmail.
Guest

Posted: Wed Feb 13, 2008 7:06 am Post subject: Silpruf Window installation

Dave;



Thanks for the write up on the windows.  It looks like a good product

after reading the data sheet.



Three questions. , one request.



1. how many tubes does one need for doing the 4 windows?

2. best price /supplier to purchase?

3. I couldn't get the link to work for the video.

4. could you provide a close up picture of the finished edge?



Thanks.



Fred Williams

40515

Starting door fit

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

kearney(at)shaw.ca
Guest

Posted: Wed Feb 13, 2008 7:55 am Post subject: Silpruf Window installation

Hi Fred



Here is the link in a smaller form: http://tinyurl.com/2ndhr9



Dave's link was broken by a line break in the text.



Cheers



Les Kearney

#40643

C-GCWZ (Reserved)



--

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

ricksked(at)embarqmail.co
Guest

Posted: Wed Feb 13, 2008 8:24 am Post subject: Silpruf Window installation

I ordered 4 10 oz tubes, $68 including shipping total. If I have any left there is my building buddy Mr. Kaufmann who will most likely claim my leftovers. From what I read on the instructions, I'll need at least one tube after paint. Here's the link I bought it from.



http://www.nextag.com/silicone-sealant/search-html



Rick S.

40185

---

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

Dave(at)AirCraftersLLC.co
Guest

Posted: Wed Feb 13, 2008 9:46 am Post subject: Silpruf Window installation

Fred,



We bought 5 tubes and used 3 1/2.  The final step was done several months

after the first, so one of the partially used tubes was wasted.



I get SilPruf from a company called Lowry's in Hayward, CA:

http://www.halowry.com.  Late last year it was about $6/tube.



Les posted a better link to the video in another message:

http://tinyurl.com/2ndhr9

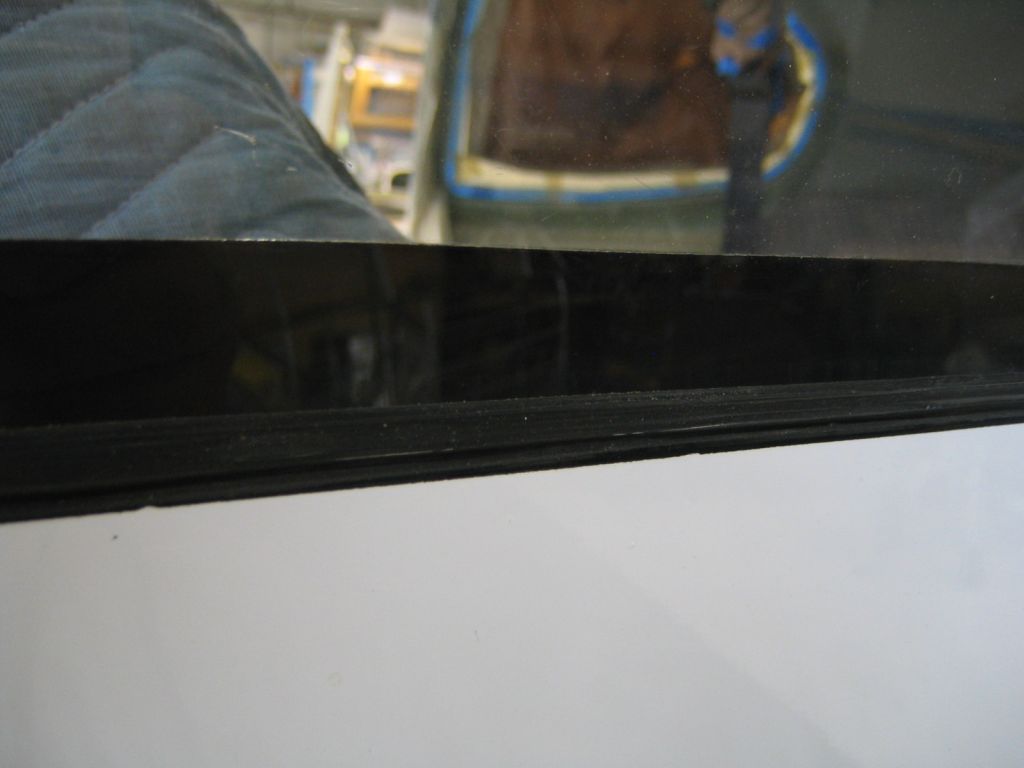

Here are some pictures.  The black all blends together so one picture is

edited and labled so you can see the different parts.  Real lilfe looks more

like the unlabled picture.



Dave Saylor

AirCrafters LLC

140 Aviation Way

Watsonville, CA

831-722-9141

831-750-0284 CL

www.AirCraftersLLC.com







--

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

48.43 KB

Viewed:

279 Time(s)


Description:

Filesize:

49.02 KB

Viewed:

265 Time(s)

drfred(at)suddenlinkmail.
Guest

Posted: Wed Feb 13, 2008 10:58 am Post subject: Silpruf window installation

Dave, Les and Rick.



Thanks for the information and pics.  Zooming in on the pics gives

enough detail to see how the bead lines up on the outside.   I think

with your help I can make it look good.  I ordered 4 tubes from

Technology LK for $67.  Now if I could quit this day job and get back to

work.  How did they ever build an airplane before the internet?  Musta

been real men and real airplanes.



Thanks



Fred Williams

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

planesmith(at)hotmail.com
Guest

Posted: Wed Feb 13, 2008 11:58 am Post subject: Silpruf Window installation

Dave,



 I would also like to throw in my thank you for sharing.



 This discussion has been centered around using SilPruf on the side windows. Did you also use it on the windscreen?



Vern Smith (#324 lost some where between the fuselage and finishing)



 > From: Dave(at)AirCraftersLLC.com

 	  Quote:
		   To: rv10-list(at)matronics.com

 Subject: RE: Silpruf Window installation

 Date: Wed, 13 Feb 2008 09:41:31 -0800



 Fred,



 We bought 5 tubes and used 3 1/2. The final step was done several months

 after the first, so one of the partially used tubes was wasted.



 I get SilPruf from a company called Lowry's in Hayward, CA:

 http://www.halowry.com. Late last year it was about $6/tube.



 Les posted a better link to the video in another message:

 http://tinyurl.com/2ndhr9



 Here are some pictures. The black all blends together so one picture is

 edited and labled so you can see the different parts. Real lilfe looks more

 like the unlabled picture.



 Dave Saylor

 AirCrafters LLC

 140 Aviation Way

 Watsonville, CA

 831-722-9141

 831-750-0284 CL

 www.AirCraftersLLC.com









Need to know the score, the latest news, or you need your Hotmail®-get your "fix". Check it out.  [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

Dave(at)AirCraftersLLC.co
Guest

Posted: Wed Feb 13, 2008 1:38 pm Post subject: Silpruf Window installation

Vern,



 I  installed the windshield per the plans, then overlaid a thin fiberglass layup  over the exposed bond at the joggle.  The edge is painted gloss black to  match the other windows.



 The windsheild could be installed with SilPruf but it would require quite  a bit of rework in order to create a joggle along the bottom edge.  I  wasn't quite prepared to do that.  Maybe next time.  The results would  be very similar to the other windows.



  Dave Saylor

 AirCrafters LLC

 140 Aviation Way

 Watsonville, CA

 831-722-9141

 831-750-0284 CL

 www.AirCraftersLLC.com

   From: owner-rv10-list-server(at)matronics.com  [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Vernon  Smith

Sent: Wednesday, February 13, 2008 11:53 AM

To:  rv10-list(at)matronics.com

Subject: RE: Silpruf Window  installation



Dave,



I would also like to throw in my thank you for  sharing.



This discussion has been centered around using  SilPruf on the side windows. Did you also use it on the windscreen?



Vern  Smith (#324 lost some where between the fuselage and finishing)



 	  Quote:
		   From: Dave(at)AirCraftersLLC.com

 To:  rv10-list(at)matronics.com

 Subject: RE: Silpruf Window  installation

 Date: Wed, 13 Feb 2008 09:41:31 -0800



  Fred,



 We bought 5 tubes and used 3 1/2. The final step was done  several months

 after the first, so one of the partially used tubes was  wasted.



 I get SilPruf from a company called Lowry's in Hayward,  CA:

 http://www.halowry.com. Late last year it was about $6/tube.



 Les posted a better link to the video in another message:

  http://tinyurl.com/2ndhr9



 Here are some pictures. The black all  blends together so one picture is

 edited and labled so you can see the  different parts. Real lilfe looks more

 like the unlabled  picture.



 Dave Saylor

 AirCrafters LLC

 140  Aviation Way

 Watsonville, CA

 831-722-9141

 831-750-0284  CL

 www.AirCraftersLLC.com











  Need to know the score, the latest news, or you need your Hotmail®-get your  "fix". Check it  out. [quote]



href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List

href="http://forums.matronics.com">http://forums.matronics.com

href="http://www.matronics.com/contribution">http://www.matronics.com/c

[b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

planesmith(at)hotmail.com
Guest

Posted: Thu Feb 14, 2008 7:37 am Post subject: Silpruf Window installation

Dave,



 Thanks for the additional explanation. I think installing the windows is one area there is a need for more information. The workmanship is highly visible and it's not like you can drill the hole out and use an Oops rivet.

 Thanks again,



 Vern

 do not archive



  	  Quote:
		    From: Dave(at)AirCraftersLLC.com

To: rv10-list(at)matronics.com

Subject: RE: Silpruf Window installation

Date: Wed, 13 Feb 2008 13:30:53 -0800



   .ExternalClass .EC_hmmessage P {padding:0px;} .ExternalClass EC_body.hmmessage {font-size:10pt;font-family:Tahoma;}   Vern,



 I installed the windshield per the plans, then overlaid a thin fiberglass layup over the exposed bond at the joggle.  The edge is painted gloss black to match the other windows.



 The windsheild could be installed with SilPruf but it would require quite a bit of rework in order to create a joggle along the bottom edge.  I wasn't quite prepared to do that.  Maybe next time.  The results would be very similar to the other windows.



  Dave Saylor

 AirCrafters LLC

 140 Aviation Way

 Watsonville, CA

 831-722-9141

 831-750-0284 CL

 www.AirCraftersLLC.com

   From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Vernon Smith

Sent: Wednesday, February 13, 2008 11:53 AM

To: rv10-list(at)matronics.com

Subject: RE: Silpruf Window installation



Dave,



I would also like to throw in my thank you for sharing.



This discussion has been centered around using SilPruf on the side windows. Did you also use it on the windscreen?



Vern Smith (#324 lost some where between the fuselage and finishing)



 	  Quote:


Need to know the score, the latest news, or you need your Hotmail®-get your "fix". Check it out.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
