Clive J
Joined: 03 Nov 2007
Posts: 340
Location: UK
|
 Posted: Tue Feb 12, 2008 11:40 pm Post subject: Rotor arm pictures |
 |
|

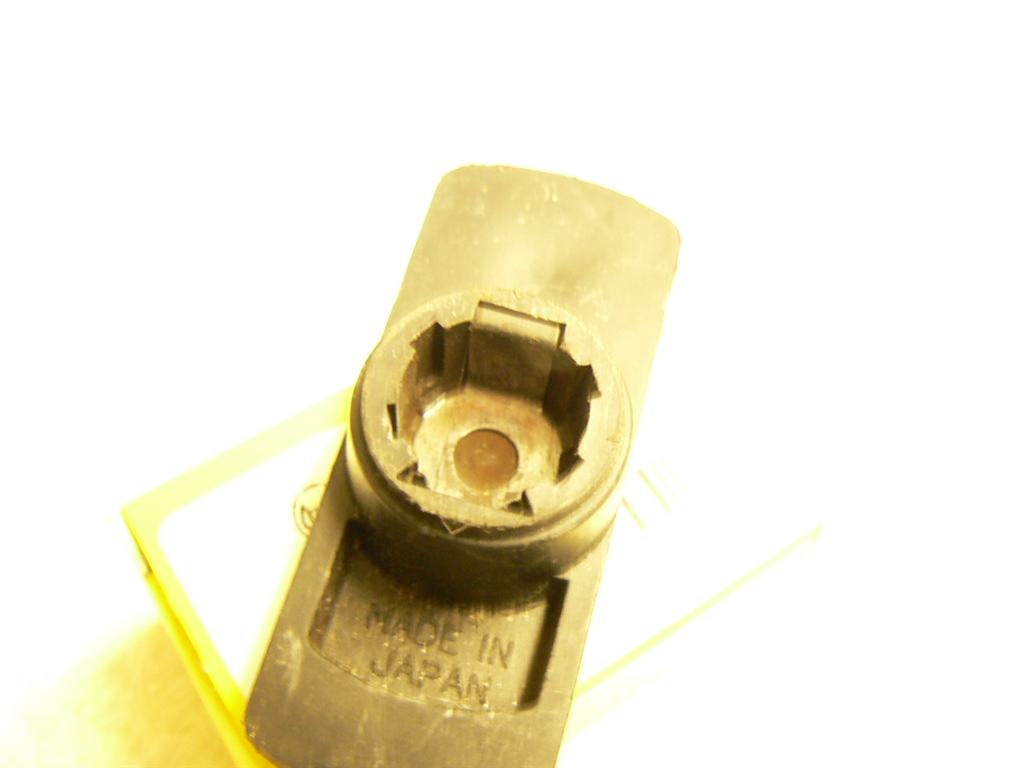

On Yahoo Jabiru engine group and attached are some pictures of the arms
for the 2200 and 3300 as most folk won't have seen both types, The 3300
looks to have a lot more substantial fitting and from what's been posted
here and on Yahoo doesn't have the same issues at the 2200 (clip
failing, falling off, gluing recomendation).
For the 2200 the two plastic 'rivets' can be seen. I tried some cheap
ones once but with only one 'rivet' and the gear whine or whatever
causes the situation with the arms vibrating + falling off soon had the
metal plate loose.
Regards, Clive
