 Posted: Fri Apr 04, 2008 1:06 pm Post subject: Steel legs and wheel pants |
 |
|
Kolb guys and a couple of ladies,

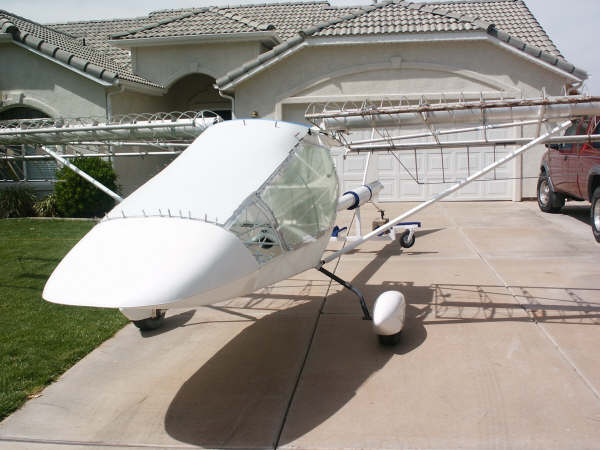

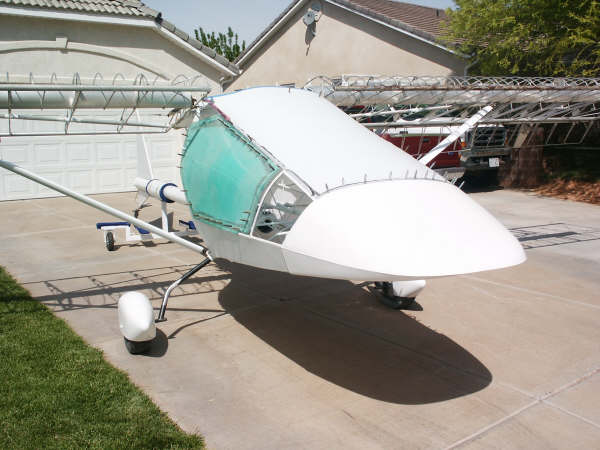

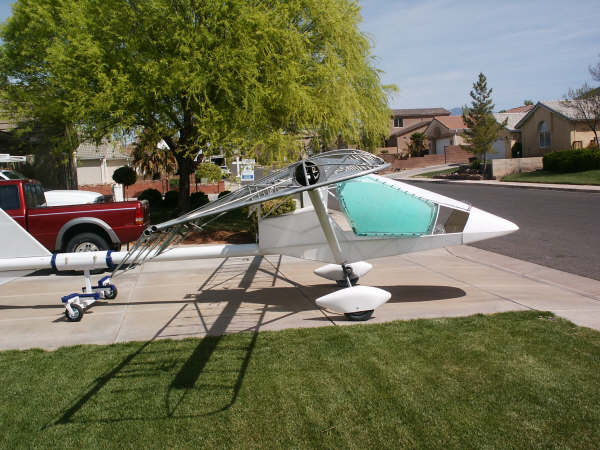

I am just about to wrap up most of my (latest) modifications to my MkIII Classic. The most recent accomplishment was finishing the steel gear legs, and then installing the wheel pants.

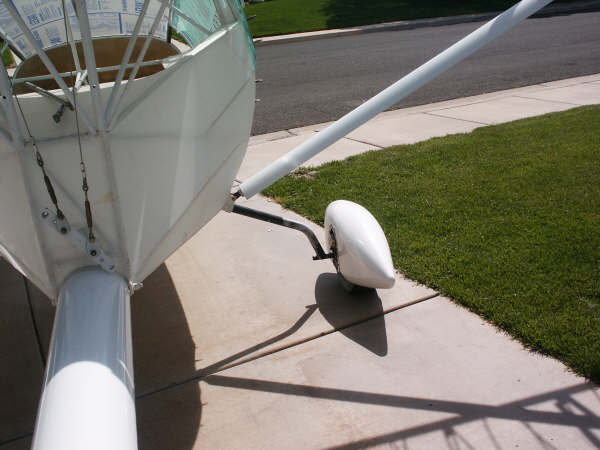

The final result on the gear legs is 3.4 degrees positive camber. The fuselage was raised about 5 inches, but to be honest, I haven't actually measured the old ones, to compare to the new height, yet. The flat bottom of the wheel pants are set at 5.7 degrees, with the boom raised to flying position. I must admit, all the fabrication for the wheel pants mounts was quite a bit of work. But they are absolutely solid!! I wouldn't hesitate landing on grass, if I ever get to fly this thing.
Now I have to remove the gear legs, and send them off to Salt Lake City, for heat treatment to Rockwell 48.
Once they get back, I will make small fiberglass "brake caliper covers/fairings" that go on the wheel pants, to steamline the disk brake openings.
Like I said, my modifications are almost finished. Very soon, I hope to finally begin covering the wings with
fabric. One thing I will do, prior to covering the wings, is to install mounts for the droop tips I intend on adding.
It is getting harder and harder to find the MkIII Classic in my shop. What do ya think??
Mike Welch
MkIII
My thanks to Rex Rodebush and John Bickham, for their help in suppying me with drawings, pictures, dimensions, etc., for the steel gear legs.
