 Posted: Sat Aug 09, 2008 1:35 pm Post subject: 6k2-3 side fairings |
 |
|
Hi Gang
I just replaced my center stick with a set of dual sticks. I received the 3 pages of dual stick drawings from zenith with the kit, what I did not get was a drawing for the different side fairing and fuel selector panel area.
Is there a different drawing of this side panel to allow for the cutout of the duel stick. I see lots of pictures/ photos of the QB kits with it and the parts catalog shows the larger side panel on 6-XN-24.
its the weekend and so I cannot ring the factory and ask? Was I missing something?? My original plans just show the old side fairing and old center console on page 6-K-2 Do I need to ask for something different
Chris
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
 |
jaybannist(at)cs.com
Guest
|
| Posted: Sat Aug 09, 2008 6:40 pm Post subject: 6k2-3 side fairings |
|
|
Chris,
I had the same problem. I had already made the console shown on the
drawings, but, of course, that one won't work with the dual sticks.
There was no drawing, so I just made one that works for me. I can send
photos if you want. Just ask.
Jay in Dallas
Do not archive
--
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
chris Sinfield
Joined: 28 Nov 2006
Posts: 270
Location: Sydney Australia
|
| Posted: Sat Aug 09, 2008 7:11 pm Post subject: Re: 6k2-3 side fairings |
|
|
yes please,
photos would be great, measurements around the duel stick area would be even better?. I wonder why Zenith don't have this as a drawing since it is what is on the QB kits..
Chris..
| | - The Matronics Zenith-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith-List |
|
|
|
| Back to top |
|
|
jaybannist(at)cs.com
Guest
|
| Posted: Sun Aug 10, 2008 6:38 am Post subject: 6k2-3 side fairings |
|
|
Chris,

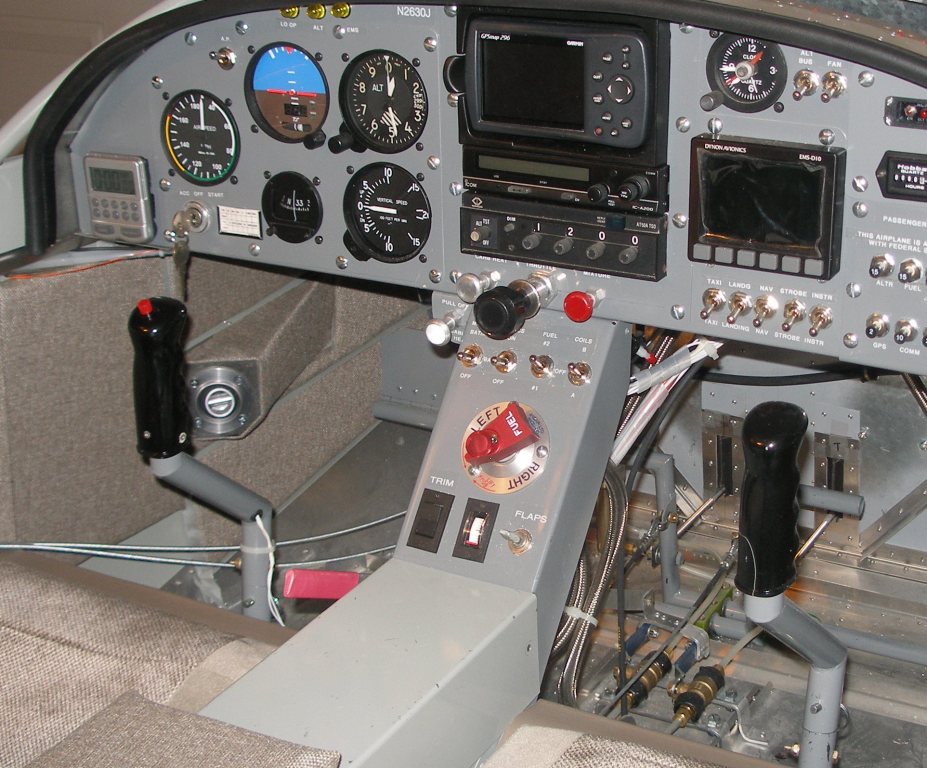

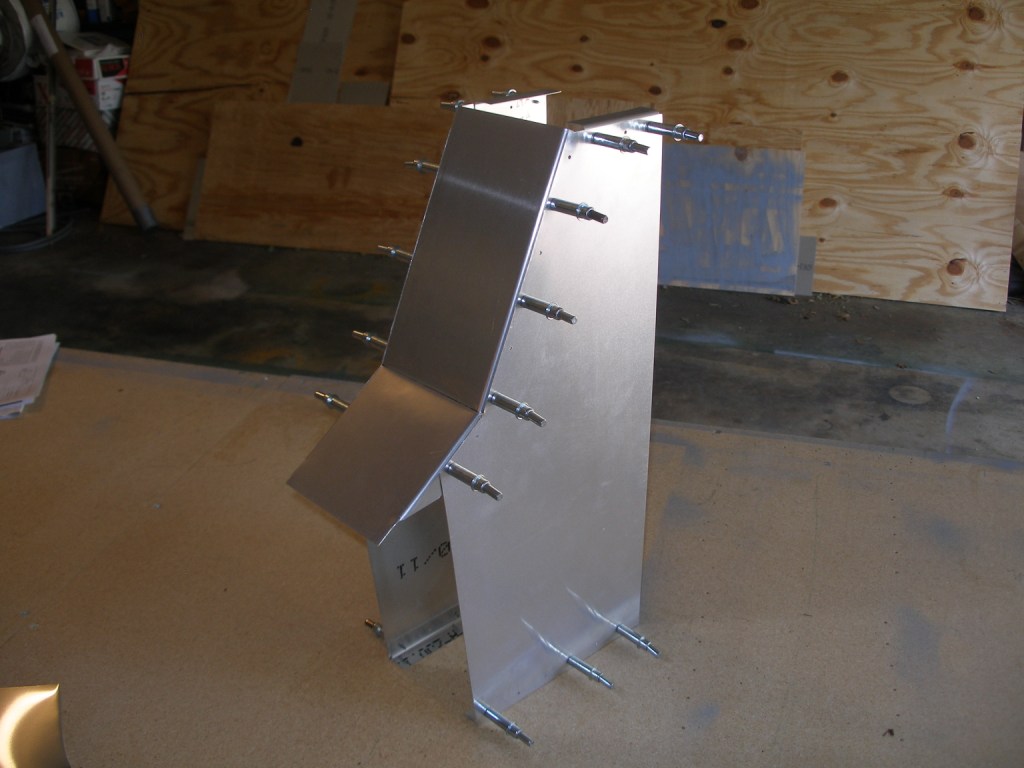

I have attached photos and drawings of my center console.
