Kitfox-List: CHT probe placement


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> JabiruEngine-List
View previous topic :: View next topic
Author Message
Lynn Matteson



Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan
PostPosted: Wed Oct 01, 2008 1:19 pm    Post subject: Kitfox-List: CHT probe placement Reply with quote
Here are some pictures for those interested in pursuing an alternate
location for the CHT probes.

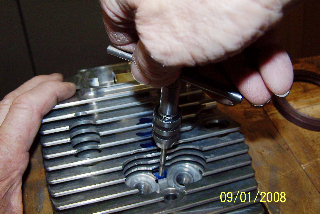

tapping the hole

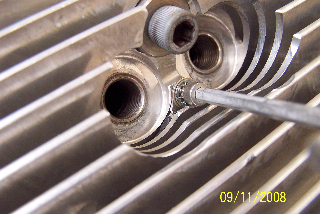

thermocouple prepared and ready to install

keeping the thermocouple clear of the spark plug socket


I ran some tests with two thermocouples in place...one in new
location, and the other under the spark plug....at one point 96° F
hotter at the "against-the-head" location, as opposed to having the
t'couple up in the airstream. You can't tell how high it sticks up
here, but it does.

Lynn Matteson
Kitfox IV Speedster
Jabiru 2200, 562 hrs, and counting...all systems are go, or nearly so...
