kmccune

Joined: 22 Sep 2007
Posts: 577
Location: Wisconsin, USA

Posted: Thu Nov 20, 2008 3:50 am Post subject: Folding wing option pics

Does anyone have good pictures showing what this is?  Some have commented that it is ugly, but the best I can tell from the poor pictures on the Zenith site is that it has a removable bar in the front and a cradle in the back that is also removable. From the comments I've read I don't want it for common storage, but for ground transport.



 I helped my buddy trailer his Challenger to the airport a few months ago. I'll tell ya that was a long slow trip worrying about the wings tied down, ad padded with every cushion and pillow from the house. Now ft his wings had folded it would not have been a big deal at all.



I started the wing rib router cutting template yesterday and so I'm about to the point of deciding and the folding wing.



Kevin

- The Matronics Zenith701801-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith701801-List

_________________
“Always do what you are afraid to do.”
R.W. Emerson (1803-1882)

"Real freedom is the sustained act of being an individual." WW - 2009

"Life is a good deal...it's worth it" Feb 1969
Dorothy McCune

Jon(at)joncroke.com
Guest

Posted: Thu Nov 20, 2008 11:10 am Post subject: Folding wing option pics

> --> Zenith701801-List message posted by: "kmccune" <kmccune(at)somtel.net (kmccune(at)somtel.net)>

 	  Quote:


  Does anyone have good pictures showing what this is?  Some  have commented that it is ugly, but the best I can tell from the poor pictures  on the Zenith site is that it has a removable bar in the front and a cradle in  the back that is also removable. From the comments I've read I don't want it for  common storage, but for ground transport.







 Here is a picture of someone that is actively using the folding 701 option  to his advantage:

 Complete story on this and many more pics in the next issue if the Zenair  Newsletter, mailed in a week or so.

 Dont miss this issue!  Subscribe at www.zenair.org



 [img]cid:90B8D3096C5240B89F39B01CFF43BA0F(at)JonsPC[/img]

- The Matronics Zenith701801-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith701801-List


Description:

Filesize:

101.52 KB

Viewed:

429 Time(s)

kmccune

Joined: 22 Sep 2007
Posts: 577
Location: Wisconsin, USA

Posted: Thu Nov 20, 2008 3:53 pm Post subject: Re: Folding wing option pics

Now thats just cool!



kevin

do not archive

- The Matronics Zenith701801-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Zenith701801-List

Jon(at)joncroke.com
Guest

Posted: Thu Nov 20, 2008 4:21 pm Post subject: Folding wing option pics

Jon, that sure is a nice hangar (portable) for the yellow 701  on floats!

Looks like there may be a sufficient number of people available to  do the fold/un-fold operation.



Sure hope I didn't start the  flames.



 There was a boatload of helpers!

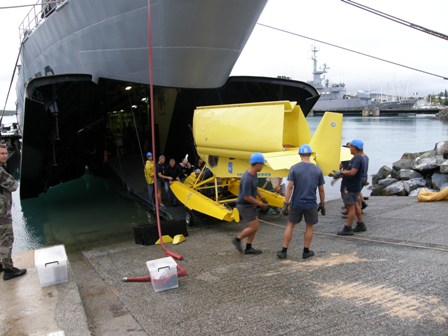

 Note below the dockworkers... but I guess they  didnt do the folding.  I will try to followup with a story about the effort  required to fold/unfold from this guy that has personal experience... I am quite  curious also.  This 701 pilot is from New Caledonia... now I had to get out  my globe to locate that country!  The newsletter went to the printer today  so by Turkey-day weekend they should be heading out the door... and this  issue will include a DVD of contributed video segments from  601/701/801 builders and pilots !  Even I am excited!
