Routing Elevator Trim Tab Servo Wires


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> RV-List
View previous topic :: View next topic
Author Message
gareywittich2000(at)yahoo
Guest
PostPosted: Sat Jan 24, 2009 10:02 pm    Post subject: Routing Elevator Trim Tab Servo Wires Reply with quote
Greetings:

Looking for a better solution than routing the Trim Tab Servo wires thru the hole in the Elevator Spar (where the long Servo Motor Screw goes).

Does anybody have any pictures or diagrams of the Wire Routing of the Trim Tab Motor wires in the Elevator to the Horizontal STABILIZER to the fuselage.

Not much given on this subject on Matronics.

Thanks, Garey Santa Monica, CA

- The Matronics RV-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV-List
Back to top
Matt Dralle
Site Admin


Joined: 08 Nov 2005
Posts: 26321
Location: Livermore CA USA
PostPosted: Sat Jan 24, 2009 11:10 pm    Post subject: Routing Elevator Trim Tab Servo Wires Reply with quote
At 10:01 PM 1/24/2009 Saturday, you wrote:
Quote:


Greetings:

Looking for a better solution than routing the Trim Tab Servo wires thru the hole in the Elevator Spar (where the long Servo Motor Screw goes).

Does anybody have any pictures or diagrams of the Wire Routing of the Trim Tab Motor wires in the Elevator to the Horizontal STABILIZER to the fuselage.

Not much given on this subject on Matronics.

Thanks, Garey Santa Monica, CA

Hi Garey,

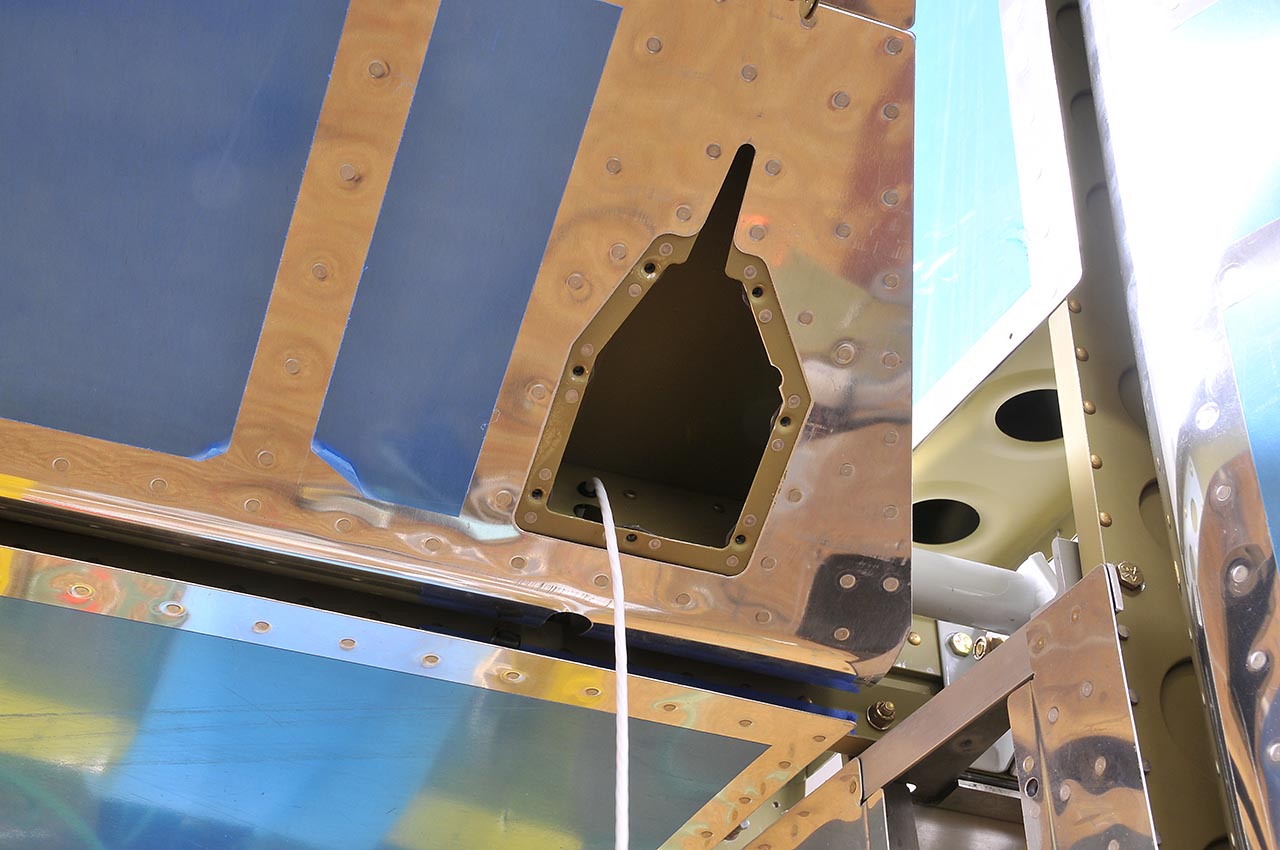

I just did this task. I simply drilled a 1/4" hole above the servo screw hole and added a little black plastic bushing. Attached is a picture.

Best regards,

Matt Dralle
RV-8 #82880 N998RV (res)
Building Time Since July 2008: 728.75 Hours

- The Matronics RV-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV-List


 Description:
 Filesize:  150.47 KB
 Viewed:  176 Time(s)


_________________
Matt Dralle
Matronics Email List Administrator
Back to top
View user's profile Send private message Send e-mail Visit poster's website
mike(at)profishenterprise
Guest
PostPosted: Sun Jan 25, 2009 6:41 am    Post subject: Routing Elevator Trim Tab Servo Wires Reply with quote
I'm not that far along yet so I hope this doesn't sound dumb but what does
the wire go to, and what does it do?

Mike Schulz
Pro Fish Enterprises, LLC
4878 Edgewater Drive
Mound, MN 55364
612-590-8604

--

- The Matronics RV-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV-List
Back to top
chaskuss(at)yahoo.com
Guest
PostPosted: Sun Jan 25, 2009 9:36 am    Post subject: Routing Elevator Trim Tab Servo Wires Reply with quote
Garey,
Drill a hole in the inboard elevator rib close to the elevator mounting weldment. Pass the wires inboard thru the rib. Attach the wiring to the round tube part of the weldment and then bring the wiring forward. Using this method, you impart a twisting type of bend along the length of the wires, rather than a pure bending.
Vans has also mentioned numerous times that additional holes in the spar will weaken it.
Charlie Kuss
--- On Sun, 1/25/09, Garey Wittich <gareywittich2000(at)yahoo.com> wrote:

Quote:
From: Garey Wittich <gareywittich2000(at)yahoo.com>
Subject: Routing Elevator Trim Tab Servo Wires
To: rv-list(at)matronics.com, rv7-list(at)matronics.com, rv8-list(at)matronics.com
Date: Sunday, January 25, 2009, 1:01 AM

<gareywittich2000(at)yahoo.com>

Greetings:

Looking for a better solution than routing the Trim Tab
Servo wires thru the hole in the Elevator Spar (where the
long Servo Motor Screw goes).

Does anybody have any pictures or diagrams of the Wire
Routing of the Trim Tab Motor wires in the Elevator to the
Horizontal STABILIZER to the fuselage.

Not much given on this subject on Matronics.

Thanks, Garey Santa Monica, CA






- The Matronics RV-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV-List
Back to top
