MT prop governor rotation - final position

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

AirMike

Joined: 27 Feb 2007
Posts: 514
Location: Nevada

Posted: Wed Feb 04, 2009 12:23 pm Post subject: MT prop governor rotation - final position

I need to position my MT prop governor to set the opening in the fwd baffle on the left front area of the engine. I know that you loosen the six screws that retain the governor arm. You only loosen the screws - DO NOT REMOVE. Then you can rotate the arm part of the prop governor. This related to me by Jurgen at MT.



Question: What is the final position of the arm on the MT prop governor?



It looks like the passive position of the arm should be in the 10:00 position as you look at it from the pilot side. Could anyone already flying please set me straight on this.........

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
See you OSH '18
Q/B - sold.

orchidman

Joined: 10 Jul 2006
Posts: 277
Location: Oklahoma City - KRCE

Posted: Sat Feb 07, 2009 6:59 am Post subject: Re: MT prop governor rotation - final position

 	  AirMike wrote:
		  I need to position my MT prop governor to set the opening in the fwd baffle on the left front area of the engine. I know that you loosen the six screws that retain the governor arm. You only loosen the screws - DO NOT REMOVE. Then you can rotate the arm part of the prop governor. This related to me by Jurgen at MT.



Question: What is the final position of the arm on the MT prop governor?



It looks like the passive position of the arm should be in the 10:00 position as you look at it from the pilot side. Could anyone already flying please set me straight on this.........




Did you ever find out the starting 'clocking' position.  I want to do this, this weekend also.

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Gary Blankenbiller
RV10 - # 40674
(N2GB Flying)

AirMike

Joined: 27 Feb 2007
Posts: 514
Location: Nevada

Posted: Sat Feb 07, 2009 9:52 am Post subject: MT prop governor rotation - final position

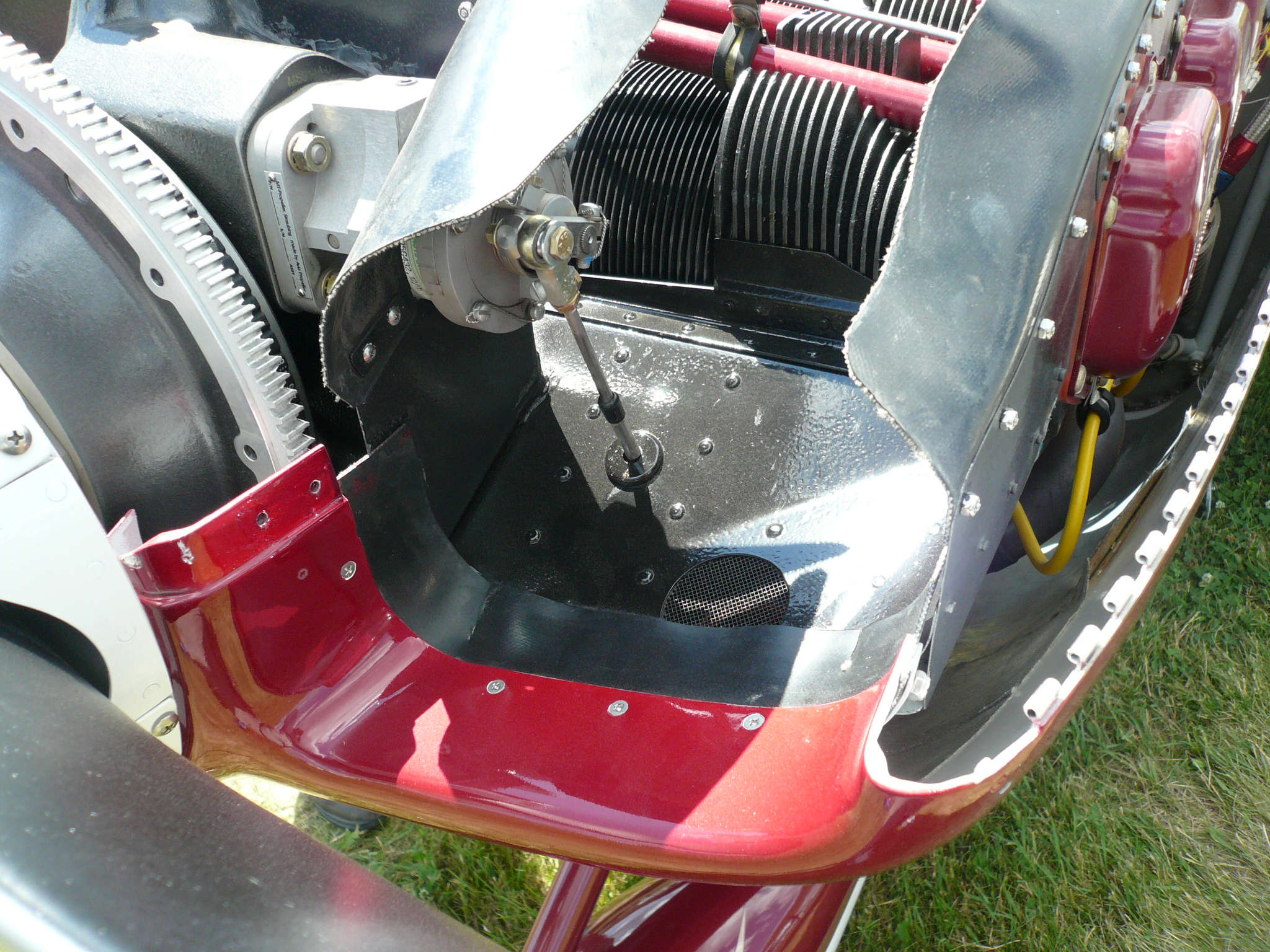

I looked in my archives from OSH-08 and found some pictures that indicate that the arm should be in the 10:00-10:30 position. See my prior comments on rotation. You want the arm to be able to pull down without too much fore and aft movement on the bushing



One thing that this taught me was that my 200+ pictures of RV10's that I took at OSH were a real help in finishing this project. If you are a newbee, I cannot tell you how valuable the pictures that you take at OSH (of RV10's) are in finishing this plane

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

1.44 MB

Viewed:

414 Time(s)

_________________
See you OSH '18
Q/B - sold.

AV8ORJWC

Joined: 13 Jul 2006
Posts: 1149
Location: Aurora, Oregon "Home of VANS"

Posted: Sat Feb 07, 2009 1:20 pm Post subject: MT prop governor rotation - final position

Deems and Tim are my baseline when it comes to thousands of pictures.





  John Cox





  From: owner-rv10-list-server(at)matronics.com on behalf of AirMike

Sent: Sat 2/7/2009 9:52 AM

To: rv10-list(at)matronics.com

Subject: Re: MT prop governor rotation - final position



--> RV10-List message posted by: "AirMike" <Mikeabel(at)Pacbell.net>



I looked in my archives from OSH-08 and found some pictures that indicate that the arm should be in the 10:00-10:30 position. See my prior comments on rotation. You want the arm to be able to pull down without too much fore and aft movement on the bushing



One thing that this taught me was that my 200+ pictures of RV10's that I took at OSH were a real help in finishing this project. If you are a newbee, I cannot tell you how valuable the pictures that you take at OSH (of RV10's) are in finishing this plane



--------

OSH '08 or Bust (busted) be there in &quot;09

Q/B Kit - wiring and FWF





Read this topic online here:



http://forums.matronics.com/viewtopic.php?p=229069#229069





Attachments:



http://forumhref="http://www.matronics.com/Navigator?RV10-List">http://www.matronic--> http://forums.matronics.com

p;         - List Contribution bsp;                    -Matt Dralle, List href="http://www.matronics.com/contribution">http://www.matronics.com/c=================





 [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

orchidman

Joined: 10 Jul 2006
Posts: 277
Location: Oklahoma City - KRCE

Posted: Sat Feb 07, 2009 3:13 pm Post subject: Re: MT prop governor rotation - final position

 	  AirMike wrote:
		  I looked in my archives from OSH-08 and found some pictures that indicate that the arm should be in the 10:00-10:30 position.


A picture is worth a 1000 words.  Thanks

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Gary Blankenbiller
RV10 - # 40674
(N2GB Flying)
