Anyone have info how they mounted wing tip strobe power sup

Matronics Email Lists Forum Index -> Europa-List

View previous topic :: View next topic

Author Message

jimpuglise(at)comcast.net
Guest

Posted: Tue Feb 17, 2009 7:21 am Post subject: Anyone have info how they mounted wing tip strobe power sup

Ron-

Mine is on the bottom of the port access panel in the baggage bay.  I ran irrigation tubing through the wings containing #18 wire for both the strobes and position lights.  I did not want to mount something that weighed as much as the strobe controller in the wing.  I have seen a few mounted directly to the spar with an access panel in the wing skin.  I did not want to put another panel in the wing.  The answer for you might be to use very light weight coaxial cable for the strobe portion with the shields well grounded and your controllers located on the port and starboard baggage bay access panels.



Jim Puglise

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

jan_de_jong(at)casema.nl
Guest

Posted: Tue Feb 17, 2009 9:36 am Post subject: Anyone have info how they mounted wing tip strobe power sup

Hi Ron,

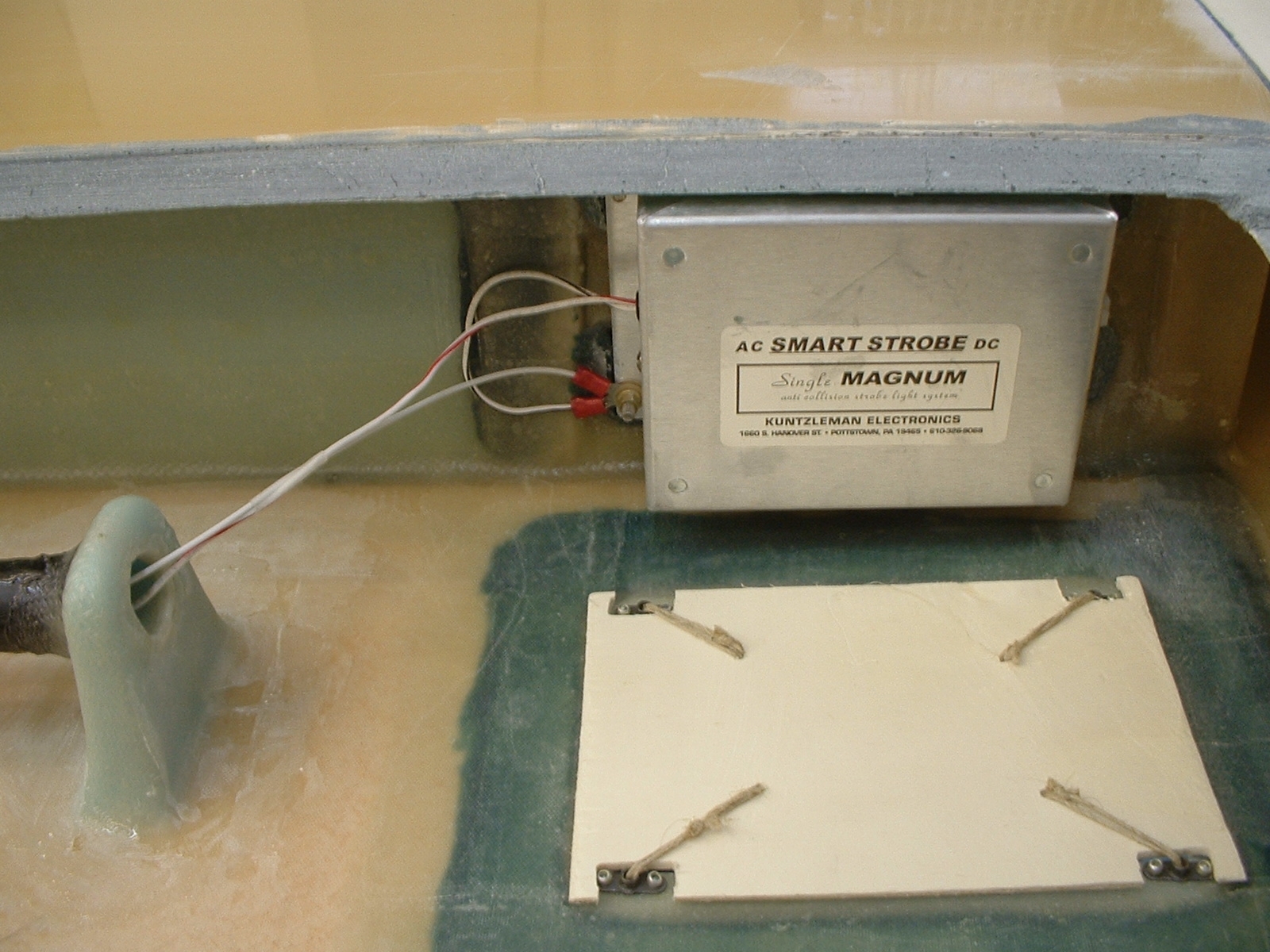

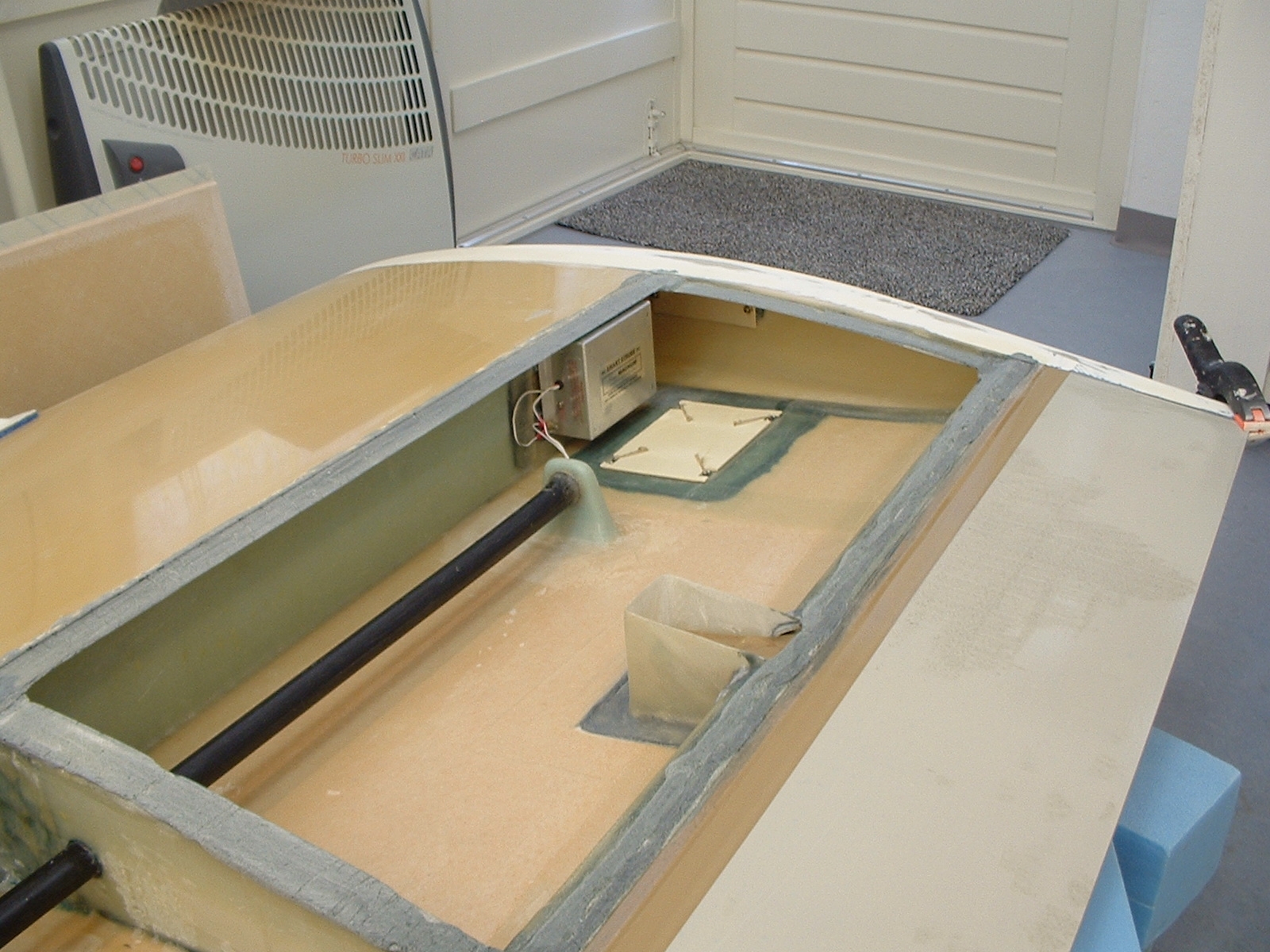

I put a single strobe power supply on the outboard end of each spar with

an access hole below.

The strobes will be uncoordinated, but I keep the high voltage wires short.

Attached some pictures, quality soso.



Access holes are a little large, because my first plan was putting the

power supplies on the lids.

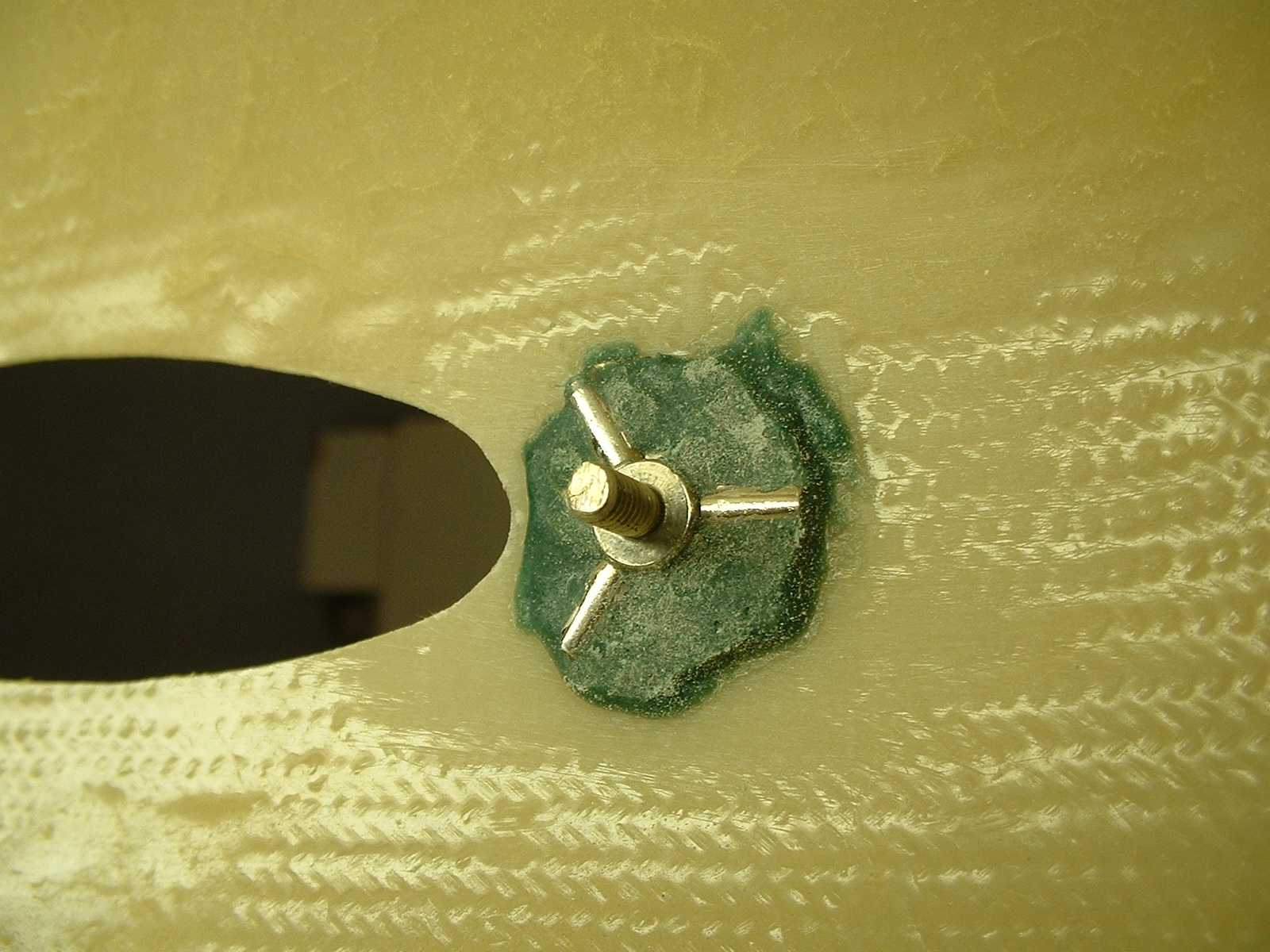

Power supply attachment using reduxed McMaster-Carr studs and bid.

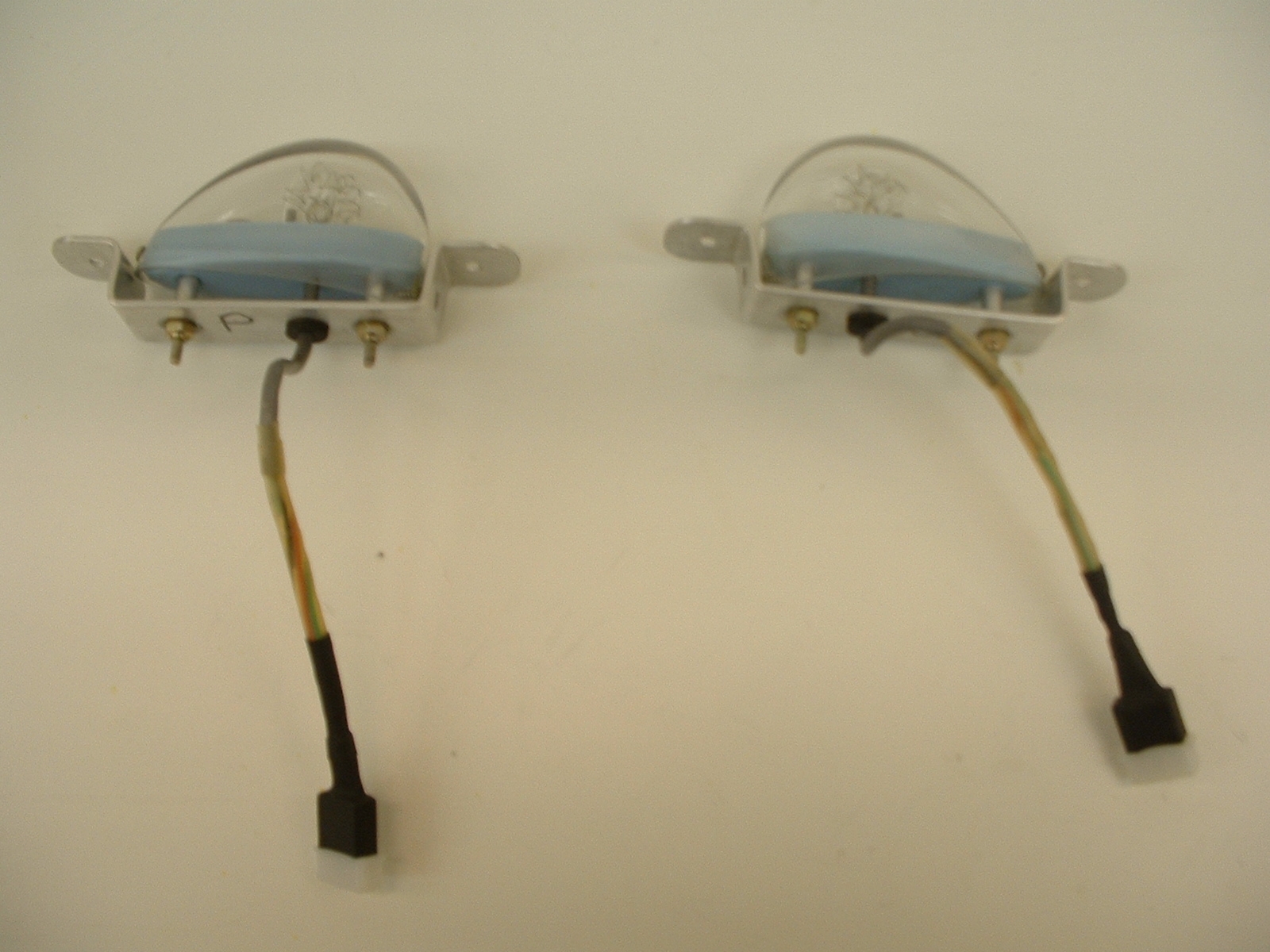

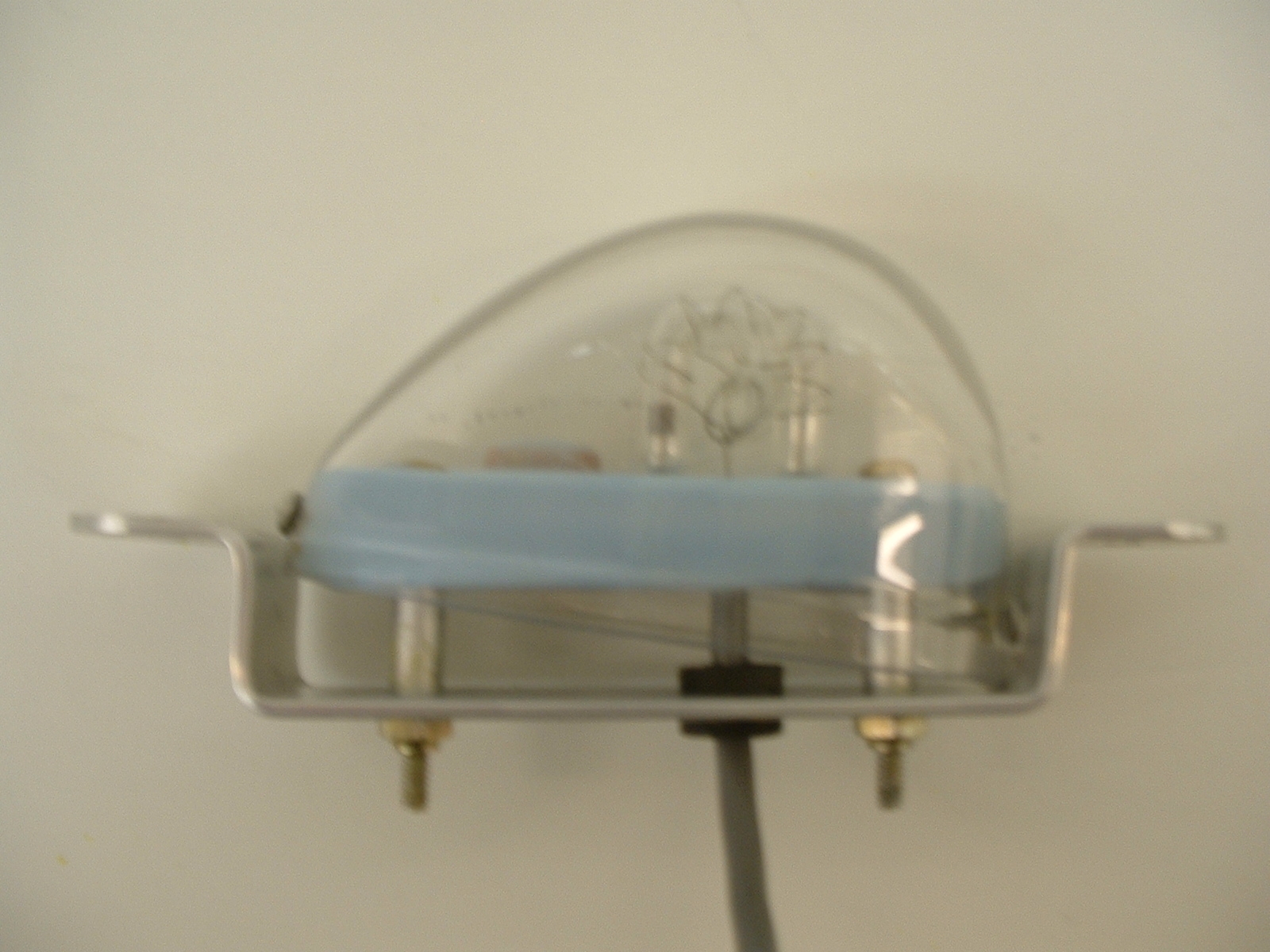

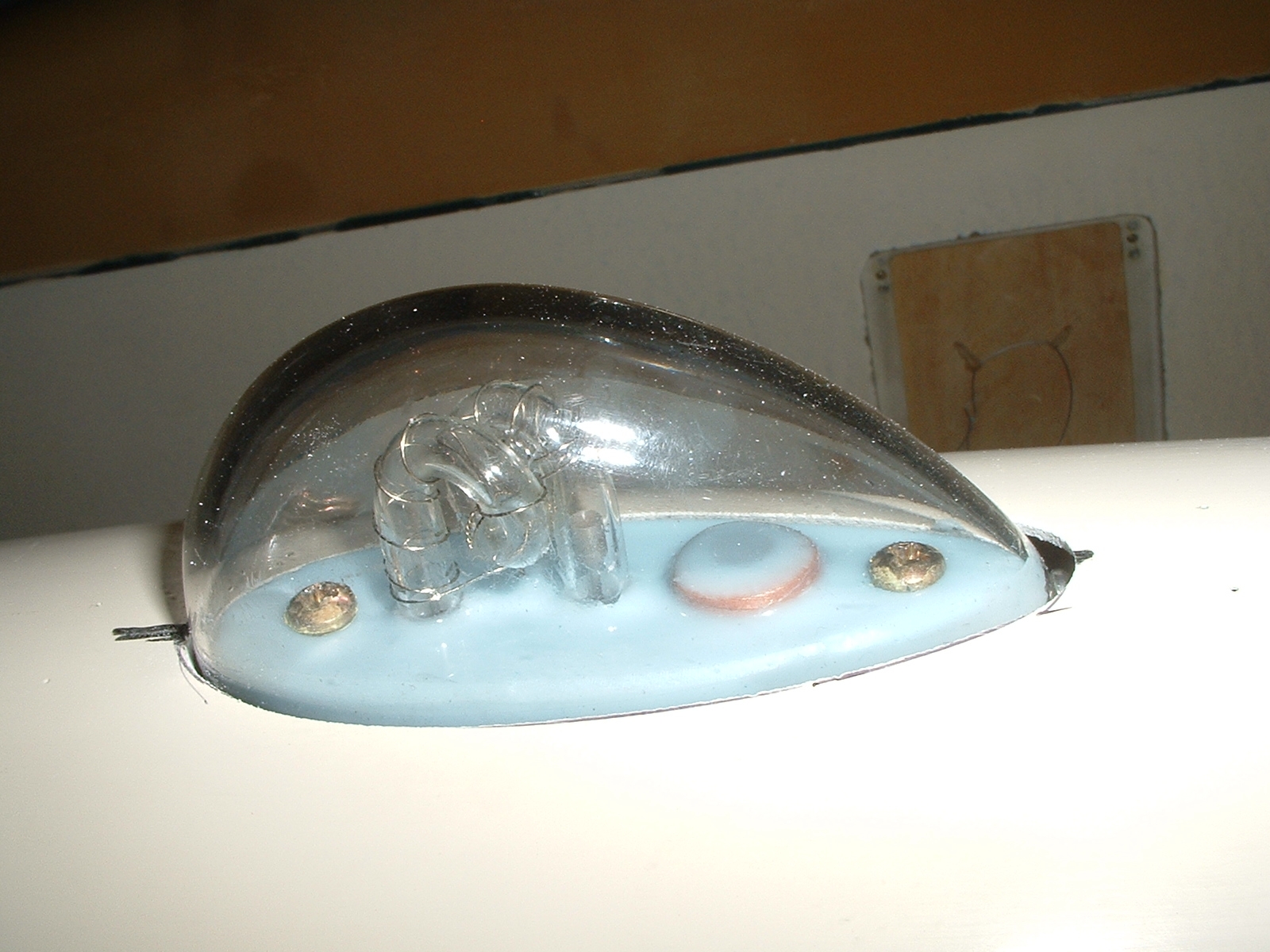

Light fixtures attached with cut down studs reduxed only.



Regards,

Jan de Jong

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

833.93 KB

Viewed:

3743 Time(s)


Description:

Filesize:

836.21 KB

Viewed:

3743 Time(s)


Description:

Filesize:

841.5 KB

Viewed:

3743 Time(s)

jan_de_jong(at)casema.nl
Guest

Posted: Tue Feb 17, 2009 9:36 am Post subject: Anyone have info how they mounted wing tip strobe power sup

Hi Ron,



The other 3 pictures I thought to send.



Regards,

Jan de Jong

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List


Description:

Filesize:

910.3 KB

Viewed:

3743 Time(s)


Description:

Filesize:

936.11 KB

Viewed:

3743 Time(s)


Description:

Filesize:

984.19 KB

Viewed:

3743 Time(s)

rlborger(at)mac.com
Guest

Posted: Tue Feb 17, 2009 2:20 pm Post subject: Anyone have info how they mounted wing tip strobe power sup

Ron,



FWIW... Absolutely no noise problems with my Whelen strobe power supply (mounted on the baggage bay bulkhead below "D" door).  Power supply is grounded.  Strobe HV lines have shields grounded at the power supply end and strobe shields are connected through any connector in the link.

Also, I have the LED/Strobe heads on the Europa.  The LEDs are VERY bright!  Much brighter than standard incandescent lamps.  Everyone who has seen the Nav lights on the aircraft in the air has commented on how bright they are.

Now I have a set of Nav/Strobe heads with incandescent lamps that I'll never use.  Was going to put them on my Toot but have changed my mind.  From now on, only LED units go on my aircraft!

Check six,

 Bob Borger

Europa Kit #A221 N914XL, XS Mono, Intercooled 914, Airmaster C/S

http://www.europaowners.org/N914XL

Aircraft Flying!

3705 Lynchburg Dr.

Corinth, TX  76208

Home:  940-497-2123

Cel:  817-992-1117





On Feb 17, 2009, at 10:20, rparigor(at)suffolk.lib.ny.us (rparigor(at)suffolk.lib.ny.us) wrote:

 	  Quote:


Hi group



Thx. for the replies about strobe power supply positioning.



Jim:

"> Mine is on the bottom of the port access panel in the baggage bay. I ran

 	  Quote:
		   irrigation tubing through the wings containing #18 wire for both the

 strobes and position lights. A  I did not want to mount something that

 weighed as much as the strobe controller in the wing."





That's exactly what I did, beautiful installation of my Kuntzleman power supply on the starboard baggage bay rib.  When I tested, if there is an antenna cable (RG-400 or RG-142), radio or antenna within 8 feet of power supply, tick, tick, tick. Nothing I tried helps. Power supply is grounded. Supply lines are shielded, I tried no ground, ground on supply side and ground on power supply side. I tried wrapping power supply in 2 layers of aluminium foil figuring RFI leaking out of connectors, no joy grounded or un grounded. I tried wrapping antenna cable with aluminium foil, grounded and un grounded. i tried grounding antenna cable. Nothing works, have to turn squelch up where don't get what it is I want.



The only thing that helps is moving power supply at least 8 feet away. I hear from a local IA that Whelen is the only powers supply he uses because he had noise issues with others.



Kunzleman power supply is pretty small, 10 oz and each one uses ~ 1.5 amps. I have their combo LED/strobe heads already mounted.



When you test yours, let us know if you have good results.



My experience is pretty much identical to this builder:

http://home.hiwaay.net/~langford/antennas.html



Ron Parigoris

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

fklein(at)orcasonline.com
Guest

Posted: Tue Feb 17, 2009 4:45 pm Post subject: Anyone have info how they mounted wing tip strobe power sup

On Feb 17, 2009, at 2:18 PM, Robert Borger wrote:



 	  Quote:
		   FWIW... Absolutely no noise problems with my Whelen strobe power

 supply (mounted on the baggage bay bulkhead below "D" door).  Power

 supply is grounded.  Strobe HV lines have shields grounded at the

 power supply end and strobe shields are connected through any

 connector in the link.





Bob,



What is your set up for your antenna(s)?



Fred

A194

--

This message has been scanned for viruses and

dangerous content by MailScanner, and is

believed to be clean.

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

rlborger(at)mac.com
Guest

Posted: Tue Feb 17, 2009 7:53 pm Post subject: Anyone have info how they mounted wing tip strobe power sup

Fred,



I have a Bob Archer Model 6 big E antenna in the tail with the coax

running forward to the center seam then down the fuselage port side

seam thence following the fuselage seam to the firewall.



I have an AAE VHF-5T mounted vertically on the port side window frame

down to the floor with the connector at the fuselage seam and the coax

running along the seam forward to the firewall.



I have two Bob Archer Model 7 "V" antennas for VHF Nav.



One mounted on the bottom of the fuselage aft of the baggage bay with

the coax running down the center line to the front of the lower

baggage bay where it turns port and runs up the fuselage to the seam

and then forward to the firewall.



The second is in the area over the baggage bay with the coax running

forward to the back door frame where it turns port and down to the

fuselage seam then forward to the firewall.



Finally, I have a Bob Archer Model 5 Transponder antenna mounted on

the port side of the balance arm containment with the coax running

down to the bottom and up the side of the fuselage to the seam and

forward to the firewall.



All the antenna coax run down the port side fuselage seam  All

electrical stuff runs down the starboard side fuselage seam.  Not sure

all that is necessary, but it doesn't hurt either.



I have not had the opportunity to work with the VORs yet so I can't

say how that antenna arrangement works for sure.



I hope that helps.



Bob Borger

Europa Kit #A221 N914XL, XS Mono, Intercooled 914, Airmaster C/S

http://www.europaowners.org/N914XL

Aircraft Flying!

3705 Lynchburg Dr.

Corinth, TX  76208

Home:  940-497-2123

On Feb 17, 2009, at 18:43, Fred Klein wrote:



 	  Quote:


 On Feb 17, 2009, at 2:18 PM, Robert Borger wrote:



> FWIW... Absolutely no noise problems with my Whelen strobe power

> supply (mounted on the baggage bay bulkhead below "D" door).  Power

> supply is grounded.  Strobe HV lines have shields grounded at the

> power supply end and strobe shields are connected through any

> connector in the link (eg. fuselage to wings).



 Bob,



 What is your set up for your antenna(s)?



 Fred

 A194

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

fklein(at)orcasonline.com
Guest

Posted: Tue Feb 17, 2009 9:36 pm Post subject: Anyone have info how they mounted wing tip strobe power sup

Bob...thanks for all this info...sounds like an exquisite

installation...I have a couple questions, inserted and indented below.



 	  Quote:






 	  Quote:
		   I have a Bob Archer Model 6 big E antenna in the tail with the coax

 running forward to the center seam then down the fuselage port side

 seam thence following the fuselage seam to the firewall.





	I take it the coax is on the centerline of the "roof" (not the floor)

of the fuselage.



 	  Quote:
		   I have an AAE VHF-5T mounted vertically on the port side window

 frame down to the floor with the connector at the fuselage seam and

 the coax running along the seam forward to the firewall.





	ok



 	  Quote:
		   I have two Bob Archer Model 7 "V" antennas for VHF Nav.





	Why two?...Are you running dual Navs? Are you IFR equipped?



	(Note: The Aviator's Guide to GPS sez the FAA's phase-out of the

whole VOR/DME network is 				expected to be complete by 2010...or has

that been postponed?)



 	  Quote:
		   One mounted on the bottom of the fuselage aft of the baggage bay

 with the coax running down the center line to the front of the lower

 baggage bay where it turns port and runs up the fuselage to the seam

 and then forward to the firewall.





	ok



 	  Quote:
		   The second is in the area over the baggage bay with the coax running

 forward to the back door frame where it turns port and down to the

 fuselage seam then forward to the firewall.





	Is this antenna superimposed over the coax from the Big E?



 	  Quote:
		   Finally, I have a Bob Archer Model 5 Transponder antenna mounted on

 the port side of the balance arm containment with the coax running

 down to the bottom and up the side of the fuselage to the seam and

 forward to the firewall.





	ok



 	  Quote:
		   All the antenna coax run down the port side fuselage seam  All

 electrical stuff runs down the starboard side fuselage seam.  Not

 sure all that is necessary, but it doesn't hurt either.





	better safe than sorry



 	  Quote:
		   I have not had the opportunity to work with the VORs yet so I can't

 say how that antenna arrangement works for sure.





	please let us know



 	  Quote:
		   I hope that helps.





	indeed it does, especially for this RF-challenged guy...thanks again



Fred

A194



--

This message has been scanned for viruses and

dangerous content by MailScanner, and is

believed to be clean.

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

jan_de_jong(at)casema.nl
Guest

Posted: Wed Feb 18, 2009 1:58 am Post subject: Anyone have info how they mounted wing tip strobe power sup

Hi Ron,



Don't even have an antenna yet so no results and still counting on luck.

 From your link it would appear that the Kunzleman switching power

supply radiates some at radio frequencies.

You probably should determine whether that is your problem too.

Separation will help, orientation may help.



Regards,

Jan de Jong

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List

johnwigney(at)windstream.
Guest

Posted: Thu Feb 19, 2009 8:18 am Post subject: Anyone have info how they mounted wing tip strobe power sup

Dear Europaphiles,



I know that this may be a little late for those of you who have already

bought their strobe power units, but my installation works well without

any interference. I have Whelen equipment and I mounted an HTS power

supply at each wing tip. They are mounted on removable panels on the

bottom surface. There is a weight penalty of about 1 pound compared to a

single HDA power supply in the fuselage but all the high voltage cables

are short and at the tip. No problems.



Cheers, John

N262WF, mono XS, 912S

- The Matronics Europa-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Europa-List
