Posted: Thu Apr 30, 2009 5:11 pm Post subject: "forest of tabs" location on firewall

I'm trying to do much of the wiring on my -10 now, so I need to put the common ground somewhere.  Does anyone have know of a good place to put the B&C "forest of tabs" on the firewall (both sides of the firewall, as described in Bob's book)?  I'll be doing the FWF by the plans (except for the grounds, I suppose).



 Thanks...



 -Rob



  [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

ricksked(at)embarqmail.co
Guest

Posted: Thu Apr 30, 2009 5:50 pm Post subject: "forest of tabs" location on firewall

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">   I put mine up next to the brake reservoir. I didn't need any tabs on the firewall side, dedicated grounds ran into the cabin using bulkhead AMP connectors. The engine is also grounded to the same tab plate through the 3/8 mounting bolt.

Sent via BlackBerry by AT&T

From:  Rob Kochman

Date: Thu, 30 Apr 2009 18:10:20 -0700

To: <rv10-list(at)matronics.com>

Subject: RV10-List: "forest of tabs" location on firewall

I'm trying to do much of the wiring on my -10 now, so I need to pu= t the common ground somewhere.=A0 Does anyone have know of a good place to = put the B&C "forest of tabs" on the firewall (both sides of t= he firewall, as described in Bob's book)?=A0 I'll be doing the FWF = by the plans (except for the grounds, I suppose).

 =A0

Thanks...

=A0

-Rob



  	  Quote:
		    _-=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D _-=3D          - The RV10-List Email Forum - _-=3D Use the Matronics List Features Navigator to browse _-=3D the many List utilities such as List Un/Subscription, _-=3D Archive Search & Download, 7-Day Browse, Chat, FAQ, _-=3D Photoshare, and much much more: _-=3D _-=3D   --> http://www.matronics.com/Navigator?RV10-List _-=3D _-=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D _-=3D               - MATRONICS WEB FORUMS - _-=3D Same great content also available via the Web Forums! _-=3D _-=3D   --> http://forums.matronics.com _-=3D _-=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D _-=3D             - List Contribution Web Site - _-=3D  Thank you for your generous support! _-=3D                              -Matt Dralle, List Admin. _-=3D   --> http://www.matronics.com/contribution _-=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D=3D

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

MauleDriver(at)nc.rr.com
Guest

Posted: Thu Apr 30, 2009 6:11 pm Post subject: "forest of tabs" location on firewall

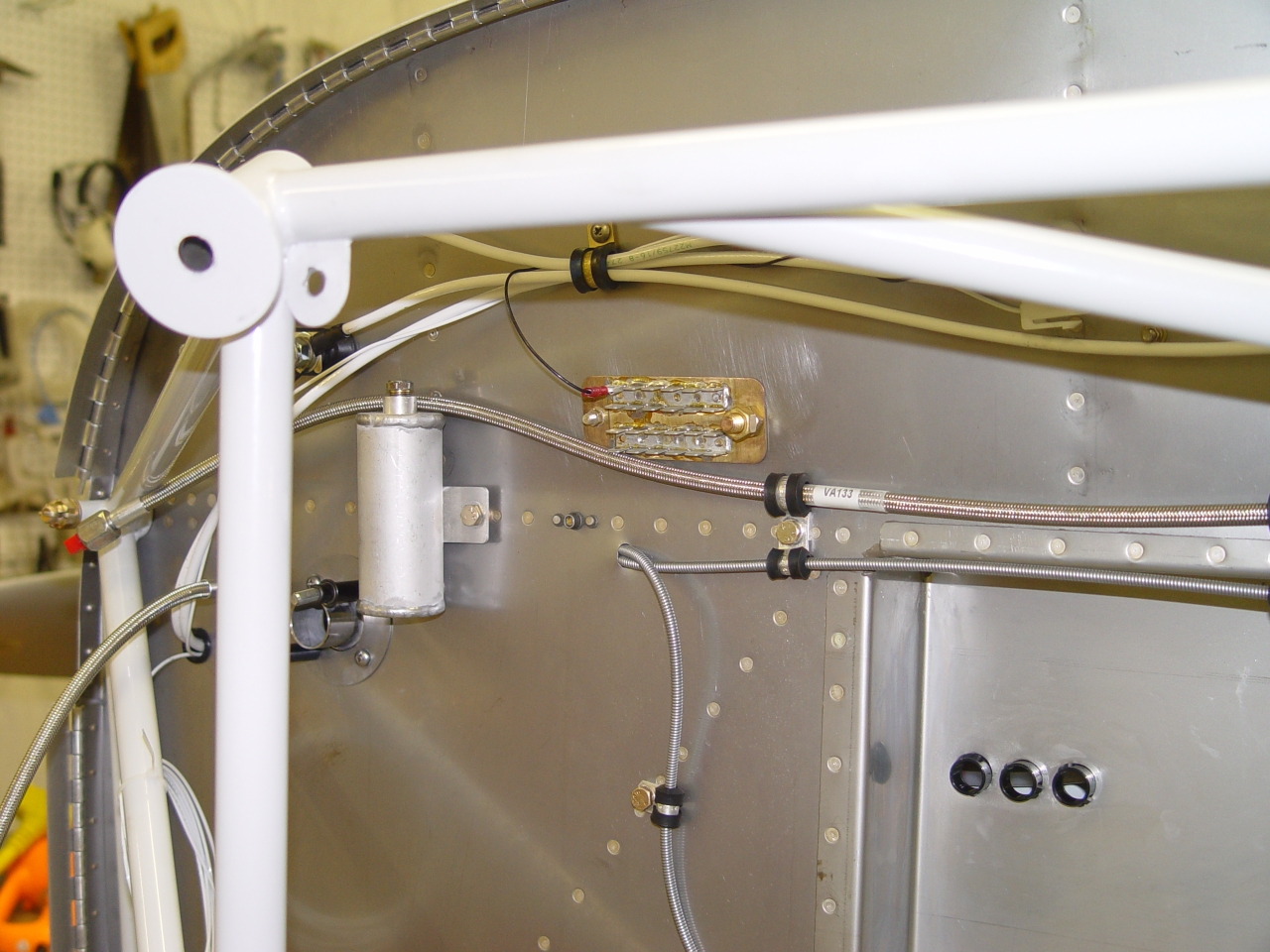

This has worked well for me so far... at least no regrets so far.  You can locate this by reference to the brake fluid resevoir.  Access to the cockpit side is primarily thru one of the holes the plans suggest you make in the instrument panel bulkhead.  I'm wiring it up now.



 Bill "wiring like crazy" Watson







 Rob Kochman wrote:  	  Quote:
		     I'm trying to do much of the wiring on my -10 now, so I need to put the common ground somewhere.  Does anyone have know of a good place to put the B&C "forest of tabs" on the firewall (both sides of the firewall, as described in Bob's book)?  I'll be doing the FWF by the plans (except for the grounds, I suppose).



   Thanks...



   -Rob

    	  Quote:




 href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List

 href="http://forums.matronics.com">http://forums.matronics.com

 href="http://www.matronics.com/contribution">http://www.matronics.com/contribution

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List


Description:

Filesize:

768.76 KB

Viewed:

3330 Time(s)

roadmaps

Joined: 08 Nov 2007
Posts: 49

Posted: Fri May 01, 2009 11:11 am Post subject: "forest of tabs" location on firewall

Rob,



I put mine of the inside of the firewall on the far left and ran a #2 ground from the rear battery. On the engine side I ran a braided cable from the mounting bolt to the engine. There was really nothing to ground on the engine side of the firewall. As it ended up most of the grounds came from the avionics and I put 3 10-tab ground ‘buses’ (got from Stein) next to/on the avionics stack.





John Testement

N311RV flying





From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Bill Mauledriver Watson

 Sent: Thursday, April 30, 2009 10:11 PM

 To: rv10-list(at)matronics.com

 Subject: Re: RV10-List: "forest of tabs" location on firewall





This has worked well for me so far... at least no regrets so far.  You can locate this by reference to the brake fluid resevoir.  Access to the cockpit side is primarily thru one of the holes the plans suggest you make in the instrument panel bulkhead.  I'm wiring it up now.



 Bill "wiring like crazy" Watson







 Rob Kochman wrote:

I'm trying to do much of the wiring on my -10 now, so I need to put the common ground somewhere.  Does anyone have know of a good place to put the B&C "forest of tabs" on the firewall (both sides of the firewall, as described in Bob's book)?  I'll be doing the FWF by the plans (except for the grounds, I suppose).







Thanks...







-Rob

   	  Quote:
		     href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List href="http://forums.matronics.com">http://forums.matronics.com href="http://www.matronics.com/contribution">http://www.matronics.com/contribution






No virus found in this incoming message.

 Checked by AVG - www.avg.com

 04/29/09 06:37:00



    [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

bcondrey

Joined: 03 Apr 2006
Posts: 580

Posted: Fri May 01, 2009 11:44 am Post subject: "forest of tabs" location on firewall

There are a number of potential items on the engine side of the firewall are pressure senders, pressure switches, hall effect current sensor, tach generator for RPM pickup, etc.  Depending on your installation you might have all, none or any combination.  Also, some sensors will ground through the case and others have a ground wire.  I think I’ve got 4 items grounded on the engine side of the firewall.



Bob





From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of John Testement

 Sent: Friday, May 01, 2009 2:11 PM

 To: rv10-list(at)matronics.com

 Subject: RE: RV10-List: "forest of tabs" location on firewall





Rob,



I put mine of the inside of the firewall on the far left and ran a #2 ground from the rear battery. On the engine side I ran a braided cable from the mounting bolt to the engine. There was really nothing to ground on the engine side of the firewall. As it ended up most of the grounds came from the avionics and I put 3 10-tab ground ‘buses’ (got from Stein) next to/on the avionics stack.





John Testement

N311RV flying





From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Bill Mauledriver Watson

 Sent: Thursday, April 30, 2009 10:11 PM

 To: rv10-list(at)matronics.com

 Subject: Re: RV10-List: "forest of tabs" location on firewall





This has worked well for me so far... at least no regrets so far.  You can locate this by reference to the brake fluid resevoir.  Access to the cockpit side is primarily thru one of the holes the plans suggest you make in the instrument panel bulkhead.  I'm wiring it up now.



 Bill "wiring like crazy" Watson







 Rob Kochman wrote:

I'm trying to do much of the wiring on my -10 now, so I need to put the common ground somewhere.  Does anyone have know of a good place to put the B&C "forest of tabs" on the firewall (both sides of the firewall, as described in Bob's book)?  I'll be doing the FWF by the plans (except for the grounds, I suppose).







Thanks...







-Rob

   	  Quote:
		     href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List href="http://forums.matronics.com">http://forums.matronics.com href="http://www.matronics.com/contribution">http://www.matronics.com/contribution




No virus found in this incoming message.

 Checked by AVG - www.avg.com

 04/29/09 06:37:00   	  Quote:

0 	  Quote:

1 	  Quote:

2 	  Quote:

3 	  Quote:

4 	  Quote:

5 	  Quote:

6 	  Quote:

7 	  Quote:

8 	  Quote:

9 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
0 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
1 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
2 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
3 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
4 	  Quote:
		   href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List
5

      [quote][b]

- The Matronics RV10-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

rv10rob(at)gmail.com
Guest

Posted: Sun May 03, 2009 9:04 am Post subject: "forest of tabs" location on firewall

Thanks, guys for the advice; very helpful.  I think I'll go with the same spot Bill shows in his picture.  I stumbled across a pic of Van's prototype that seems to show it's a good location, too:

 http://www.myrv10.com/N610RV/undercowl/P0003082.html



 -Rob

 On Fri, May 1, 2009 at 12:43 PM, Condrey, Bob (US SSA) <bob.condrey(at)baesystems.com (bob.condrey(at)baesystems.com)> wrote:

  	  Quote:


There are a number of potential items on the engine side of the firewall are pressure senders, pressure switches, hall effect current sensor, tach generator for RPM pickup, etc.  Depending on your installation you might have all, none or any combination.  Also, some sensors will ground through the case and others have a ground wire.  I think I’ve got 4 items grounded on the engine side of the firewall.



Bob





From: owner-rv10-list-server(at)matronics.com (owner-rv10-list-server(at)matronics.com) [mailto:owner-rv10-list-server(at)matronics.com (owner-rv10-list-server(at)matronics.com)] On Behalf Of John Testement

 Sent: Friday, May 01, 2009 2:11 PM

To: rv10-list(at)matronics.com (rv10-list(at)matronics.com)



Subject: RE: "forest of tabs" location on firewall







Rob,



I put mine of the inside of the firewall on the far left and ran a #2 ground from the rear battery. On the engine side I ran a braided cable from the mounting bolt to the engine. There was really nothing to ground on the engine side of the firewall. As it ended up most of the grounds came from the avionics and I put 3 10-tab ground ‘buses’ (got from Stein) next to/on the avionics stack.





John Testement

N311RV flying





From: owner-rv10-list-server(at)matronics.com (owner-rv10-list-server(at)matronics.com) [mailto:owner-rv10-list-server(at)matronics.com (owner-rv10-list-server(at)matronics.com)] On Behalf Of Bill Mauledriver Watson

 Sent: Thursday, April 30, 2009 10:11 PM

To: rv10-list(at)matronics.com (rv10-list(at)matronics.com)

 Subject: Re: "forest of tabs" location on firewall





This has worked well for me so far... at least no regrets so far.  You can locate this by reference to the brake fluid resevoir.  Access to the cockpit side is primarily thru one of the holes the plans suggest you make in the instrument panel bulkhead.  I'm wiring it up now.



Bill "wiring like crazy" Watson



Rob Kochman wrote:

I'm trying to do much of the wiring on my -10 now, so I need to put the common ground somewhere.  Does anyone have know of a good place to put the B&C "forest of tabs" on the firewall (both sides of the firewall, as described in Bob's book)?  I'll be doing the FWF by the plans (except for the grounds, I suppose).







Thanks...







-Rob

 	  Quote:
		     href="http://www.matronics.com/Navigator?RV10-List">http://www.matronics.com/Navigator?RV10-List href="http://forums.matronics.com">http://forums.matronics.com href="http://www.matronics.com/contribution">http://www.matronics.com/contribution




www.avg.com

04/29/09 06:37:00  	  Quote:

0  	  Quote:

1  	  Quote:

2

 	  Quote:

3  	  Quote:

4 	  Quote:

5 	  Quote:

6 	  Quote:

7

  	  Quote:

8












--

Rob Kochman

RV-10 Wings

Woodinville, WA (near Seattle)

http://kochman.net/N819K
