 Posted: Mon Jun 15, 2009 5:32 am Post subject: Baffling - How did you guys go about the engine mount gap? |
 |
|
Hi

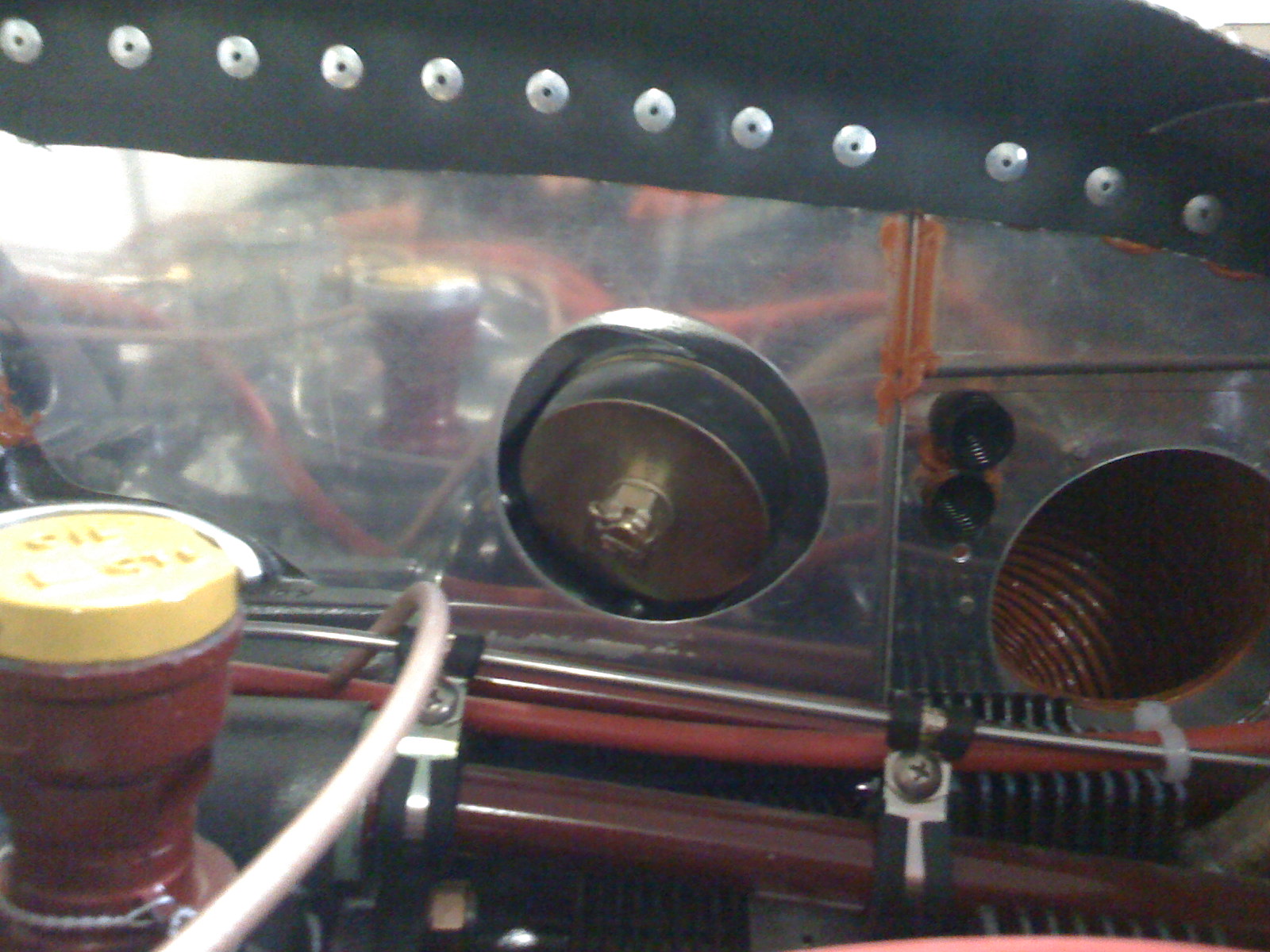

I was wondering if you sealed the gap between engine mounts and baffling with RTV. Is there another way since the gap seams quite big.
Michael
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
378.08 KB |
| Viewed: |
2952 Time(s) |
|
_________________
RV-10 builder (flying)
#511 |
|
| Back to top |
|
 |
rene(at)felker.com
Guest
|
| Posted: Mon Jun 15, 2009 6:08 am Post subject: Baffling - How did you guys go about the engine mount gap? |
|
|
That is what I did. Held up so far.....~90 hours.
Rene' Felker
RV-10 N423CF Flying
801-721-6080
--
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
Dick Sipp
Joined: 11 Jan 2006
Posts: 215
Location: Hope, MI
|
| Posted: Mon Jun 15, 2009 6:11 am Post subject: Baffling - How did you guys go about the engine mount gap? |
|
|
I cut some pieces of baffle material into small patch circles to cover that
area and pop riveted them on.
Dick Sipp
N110DV 40065
---
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
aerosport1
Joined: 07 Nov 2007
Posts: 231
|
| Posted: Mon Jun 15, 2009 8:36 pm Post subject: Re: Baffling - How did you guys go about the engine mount ga |
|
|

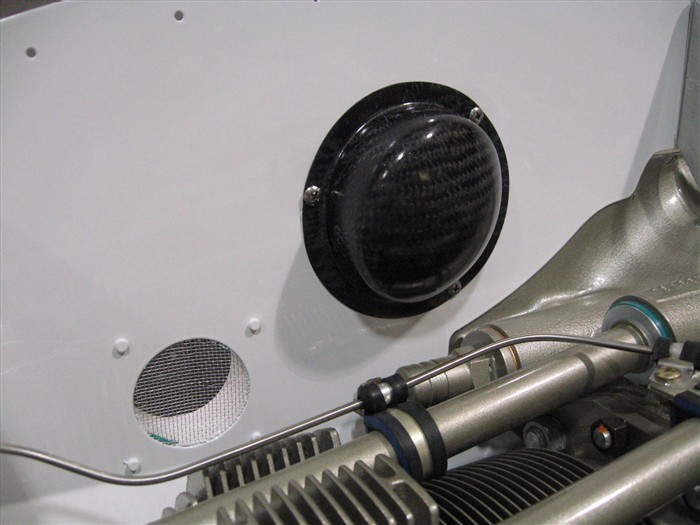

Michael I made these for my RV-10 and decided that I would offer these to everyone. They are very easy to put on. They require 3 #6 nut plates.
They are real easy to take on and off. Cost is round 70.00 a pair. They are carbon fiber. Here is a link below to my web page for more pictures
in the firewall forward area.
http://albums.phanfare.com/isolated/L5LenCCI/7068012/3161550[/code]
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
72.51 KB |
| Viewed: |
2921 Time(s) |
|
_________________
Geoff Combs
RV-10 QB N829GW
Flying 500 hrs
40033 |
|
