 Posted: Sat Aug 15, 2009 2:38 pm Post subject: IO-390 Governor Oil Line...? |
 |
|

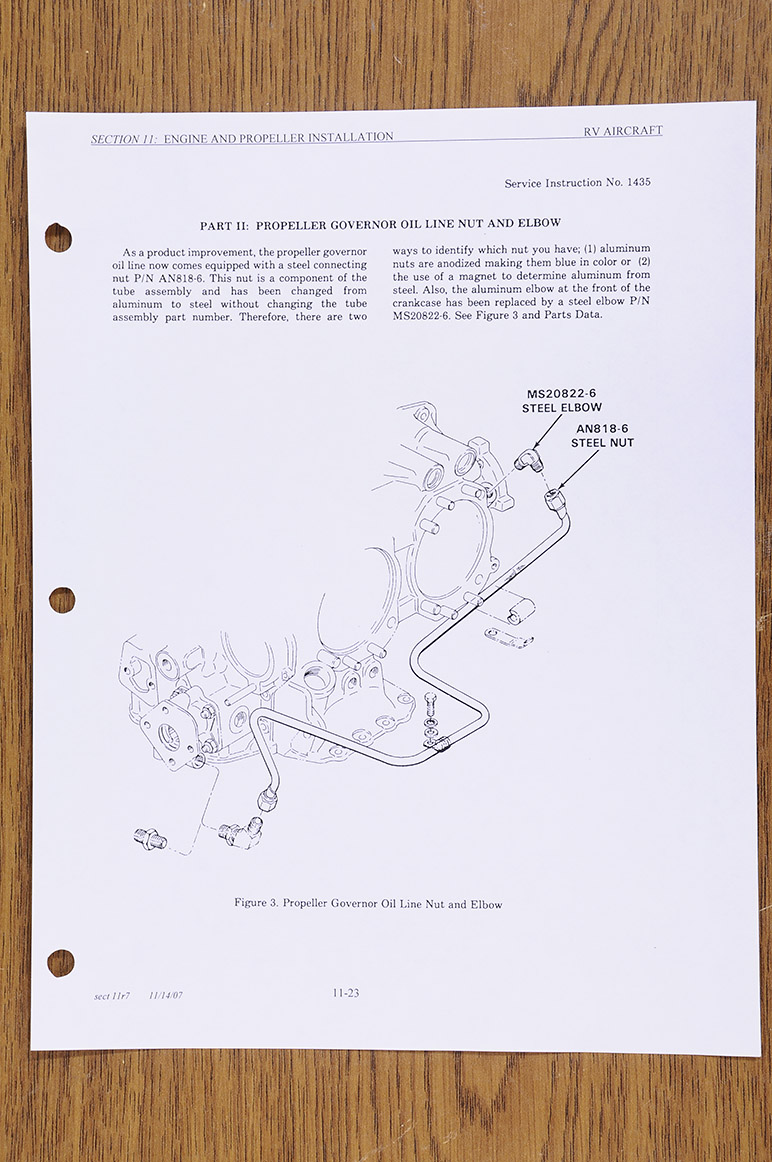

Van's includes a document called "Service Instruction No. 1435" describing a long, aluminimum tube that connects from the front of the engine to the rear where the prop governor is attached (see attached photo).
Since the prop governor on the IO-390 is mounted up front, is there even such a tube for this application? If so, what's the part number and where's a good place to get one?
Thanks!
Matt Dralle
RV-8 #82880 N998RV
http://www.mykitlog.com/dralle
Engine and Exhaust Mounted; Now What...?
| | - The Matronics RV-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV-List |
|
| Description: |
|
| Filesize: |
195.47 KB |
| Viewed: |
1746 Time(s) |
|
| Description: |
|
| Filesize: |
229.36 KB |
| Viewed: |
1746 Time(s) |
|
_________________
Matt Dralle
Matronics Email List Administrator |
|
| Back to top |
|
 |
khorton01(at)rogers.com
Guest
|
| Posted: Sat Aug 15, 2009 4:08 pm Post subject: IO-390 Governor Oil Line...? |
|
|
On 15 Aug 2009, at 18:35, Matt Dralle wrote:
| Quote: | Van's includes a document called "Service Instruction No. 1435"
describing a long, aluminimum tube that connects from the front of
the engine to the rear where the prop governor is attached (see
attached photo).
Since the prop governor on the IO-390 is mounted up front, is there
even such a tube for this application? If so, what's the part
number and where's a good place to get one?
|
No. With the front-mounted governor, all the oil passages are
internal to the engine.
--
Kevin Horton
RV-8 (Flight Test Phase)
Ottawa, Canada
http://www.kilohotel.com/rv8
