Posted: Sat Oct 10, 2009 11:16 am Post subject: Starter Cable and Engine Ground

Hello



In the Z diagrams that I’ve seen, Bob shows wiring from the battery positive to the master contactor, then to the starter contactor. Some people wire directly from the battery positive terminal to the starter contactor instead, then to the master contactor. This seems like it would provide more juice to the starter and eliminate a short section of heavy cable. Is there a disadvantage to doing this?



And I understand it is best to ground everything to a common ground block on the firewall. Jabiru suggests grounding the starter case to the negative battery terminal. I would instead run this starter ground to the firewall ground block. Would this take the place of a separate engine block ground called out in the Z diagrams? If not, then where on a Jabiru 3300 would I connect for this ground?  I would also have ground cable between the battery and firewall ground block.



Attached are pics from the Jabiru manual and service bulletin.

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

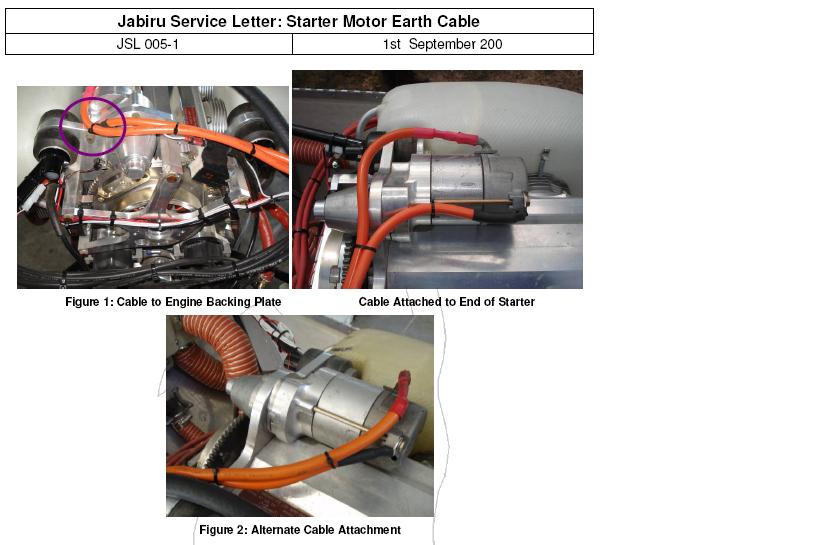

Jabiru Starter Ground.JPG

Description:

Filesize:

58.28 KB

Viewed:

6094 Time(s)

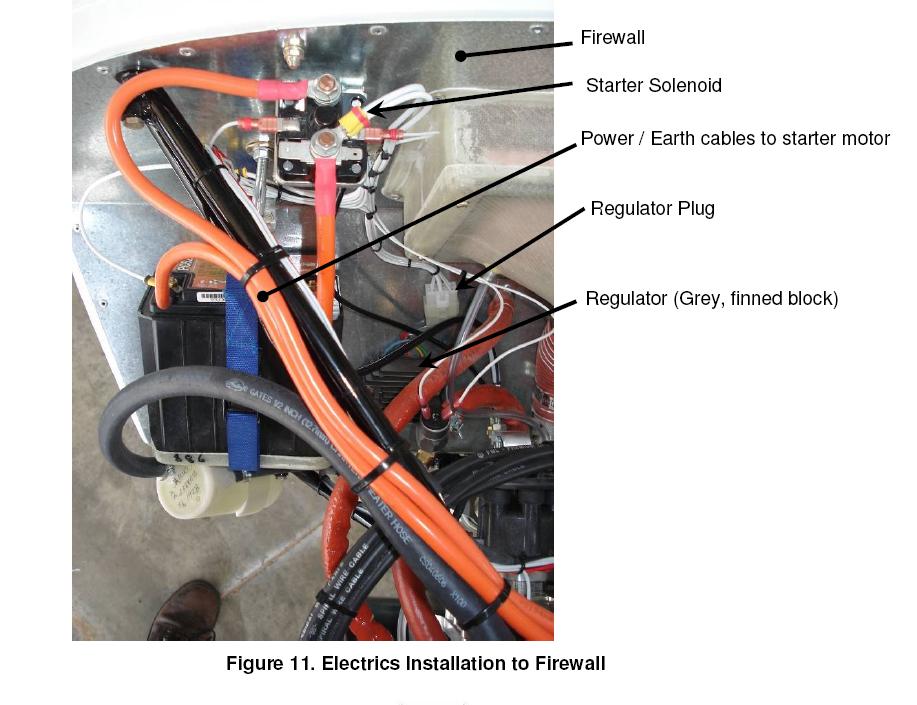

Jabiru Starter Contactor and Battery.JPG

Description:

Filesize:

81.59 KB

Viewed:

6094 Time(s)

Jabiru Starter Contactor and Battery.JPG

_________________
Dan

nuckolls.bob(at)aeroelect
Guest

Posted: Sat Oct 10, 2009 12:41 pm Post subject: Starter Cable and Engine Ground

At 02:16 PM 10/10/2009, you wrote:

 	  Quote:




Hello



In the Z diagrams that I’ve seen, Bob shows

wiring from the battery positive to the master

contactor, then to the starter contactor. Some

people wire directly from the battery positive

terminal to the starter contactor instead, then

to the master contactor. This seems like it

would provide more juice to the starter and

eliminate a short section of heavy cable. Is

there a disadvantage to doing this?





   If the starter contactor or starter switch

   sticks, there's no way to shut down a runaway

   starter.

 	  Quote:
		  And I understand it is best to ground everything

to a common ground block on the firewall. Jabiru

suggests grounding the starter case to the

negative battery terminal. I would instead run

this starter ground to the firewall ground

block. Would this take the place of a separate

engine block ground called out in the Z

diagrams? If not, then where on a Jabiru 3300

would I connect for this ground?  I would also

have ground cable between the battery and firewall ground block.





   The z-figures are a product of many years refinement

   tailored to the single-engine light aircraft but are

   not "carved in stone". What you propose would work.

   One suitable conductor between the crankcase and central

   point ground is sufficient.

        Bob . . .



         ---------------------------------------

        ( . . .  a long habit of not thinking   )

        ( a thing wrong, gives it a superficial )

        ( appearance of being right . . .       )

        (                                       )

        (                  -Thomas Paine 1776-  )

         ---------------------------------------

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

messydeer

Joined: 13 Feb 2006
Posts: 214
Location: Bellingham, WA

Posted: Sat Oct 10, 2009 4:35 pm Post subject: Re: Starter Cable and Engine Ground

 	  Quote:
		  If the starter contactor or starter switch

sticks, there's no way to shut down a runaway

starter.




Doh! I knew it must have been something simple I'd overlooked.



 	  Quote:
		  One suitable conductor between the crankcase and central

point ground is sufficient.




Goodie!



Thanks,

Dan
