 Posted: Thu Oct 22, 2009 2:43 pm Post subject: Muffler pics for Thom... |
 |
|
Hi Thom / and Gang...

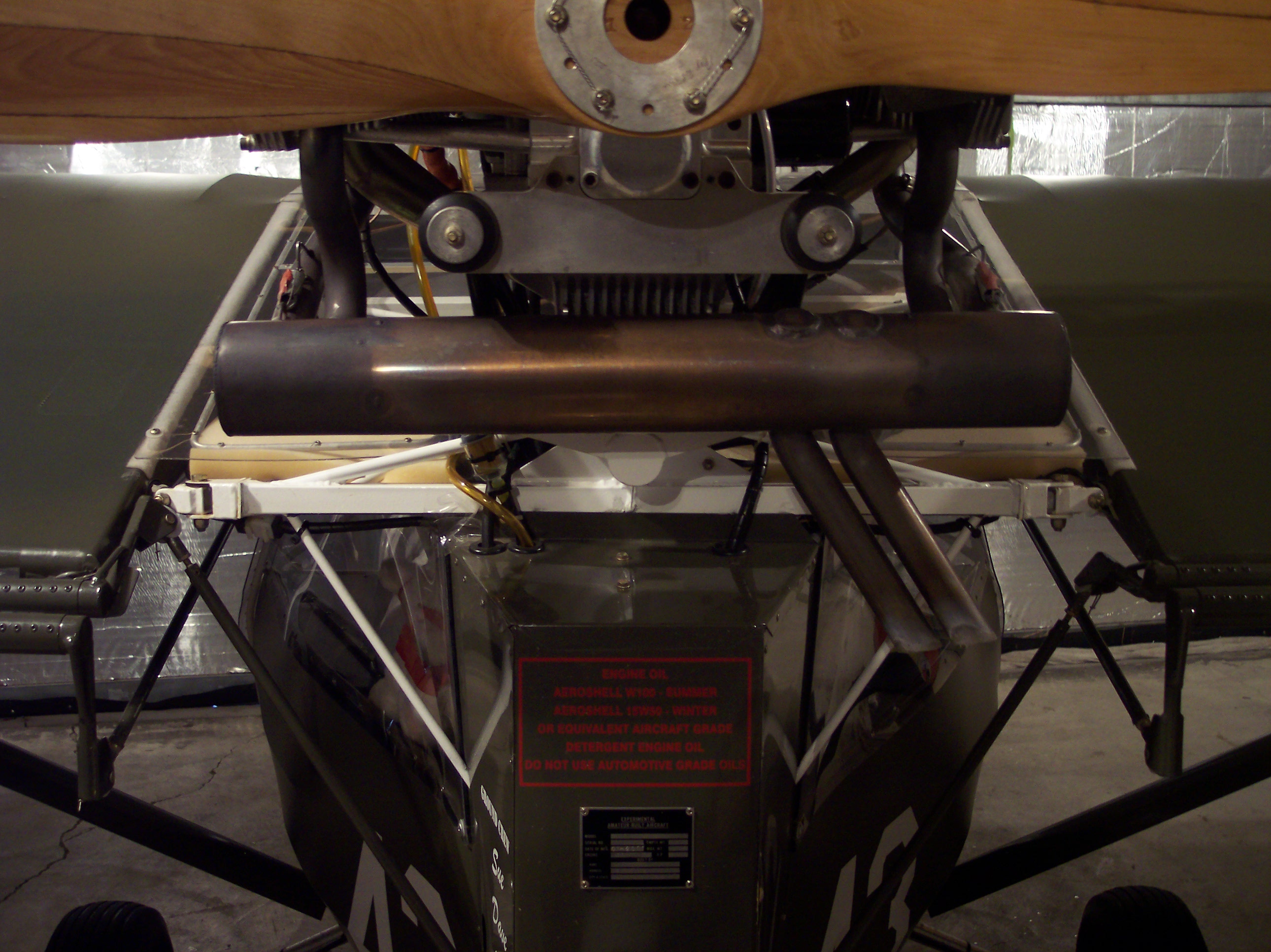

here are the pictures of the muffler...I do not have to remove the muffler to fold the wings... What does yours look like???
chris ambrose
M3X/Jab 74.0 hrs
N327CS
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
1.04 MB |
| Viewed: |
2915 Time(s) |
|
| Description: |
|
| Filesize: |
986.61 KB |
| Viewed: |
2915 Time(s) |
|
| Description: |
|
| Filesize: |
800.83 KB |
| Viewed: |
2915 Time(s) |
|
|
|
| Back to top |
|
 |
Thom Riddle
Joined: 10 Jan 2006
Posts: 1597
Location: Buffalo, NY, USA (9G0)
|
| Posted: Fri Oct 23, 2009 4:15 am Post subject: Re: Muffler pics for Thom... |
|
|
Thanks for the photos, Chris. It appears that our exhaust systems are virtually identical.
Now that I look at these photos I see why you can fold your wings and I can't fold mine without removing the muffler. The aft end of the Slingshot, because it is a tandem seat arrangement is much narrower than the side-by-side seating arrangement. Therefore the pivot points on the wing fold hinges are much closer together and inboard of the outer ends of the muffler. When you fold the wings the aileron torque tubes rise well above the muffler bottom. If the hinge points and torque tubes are outboard of the muffler ends they will clear the muffler. On the narrower SS the folded wings are much closer together and thus interfere with the muffler when folded.
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________
Thom Riddle
Buffalo, NY (9G0)
Don't worry about old age... it doesn't last very long.
- Anonymous |
|
| Back to top |
|
|
Thom Riddle
Joined: 10 Jan 2006
Posts: 1597
Location: Buffalo, NY, USA (9G0)
|
| Posted: Fri Oct 23, 2009 4:36 am Post subject: Re: Muffler pics for Thom... |
|
|
Chris,
I forgot to post a photo of my muffler. Here it is before I had the prop refinished. The prop is now natural color with polyurethane coating with inlaid leading edge protection instead of that peel-away-in-the-rain black coating shown in this photo.
| | - The Matronics Kolb-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
| Description: |
|
| Filesize: |
2.31 MB |
| Viewed: |
2873 Time(s) |
|
_________________
Thom Riddle
Buffalo, NY (9G0)
Don't worry about old age... it doesn't last very long.
- Anonymous |
|
