 Posted: Wed Feb 03, 2010 2:54 am Post subject: AW: Wing tip LED strobes |
 |
|
John,
I have used the LED system from CreativeAir.com.
They offer LED’s only and also combos with landing light.

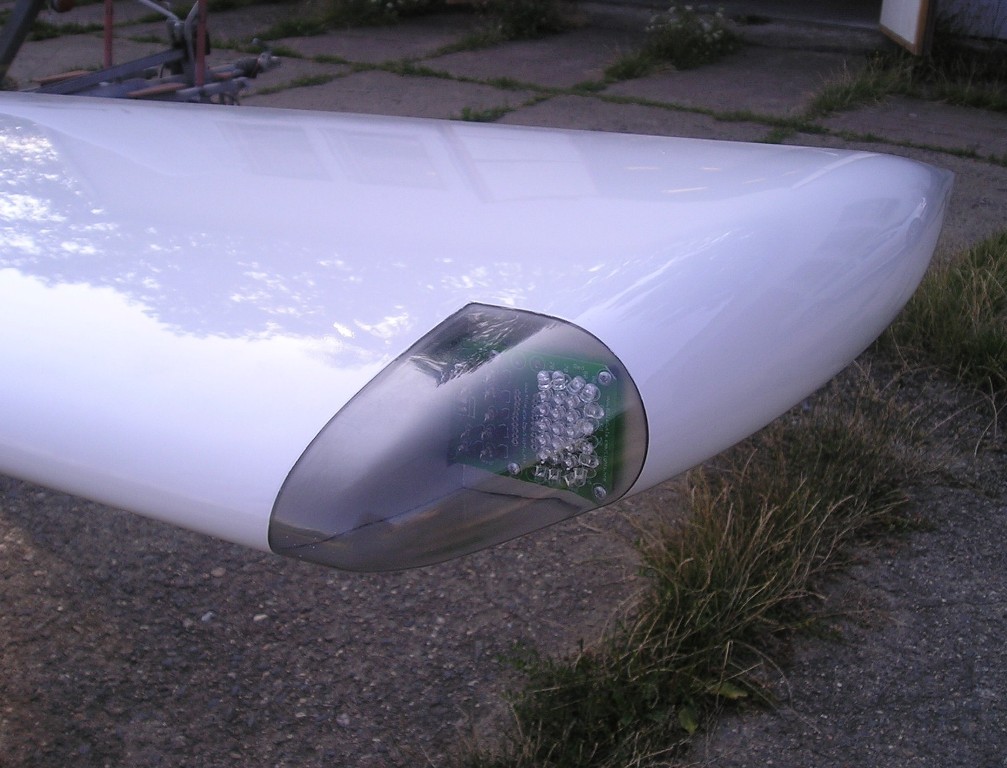

They are integrated in the wing tips. The covers for this I have got from Fred Klein.
It is a very clean solution.

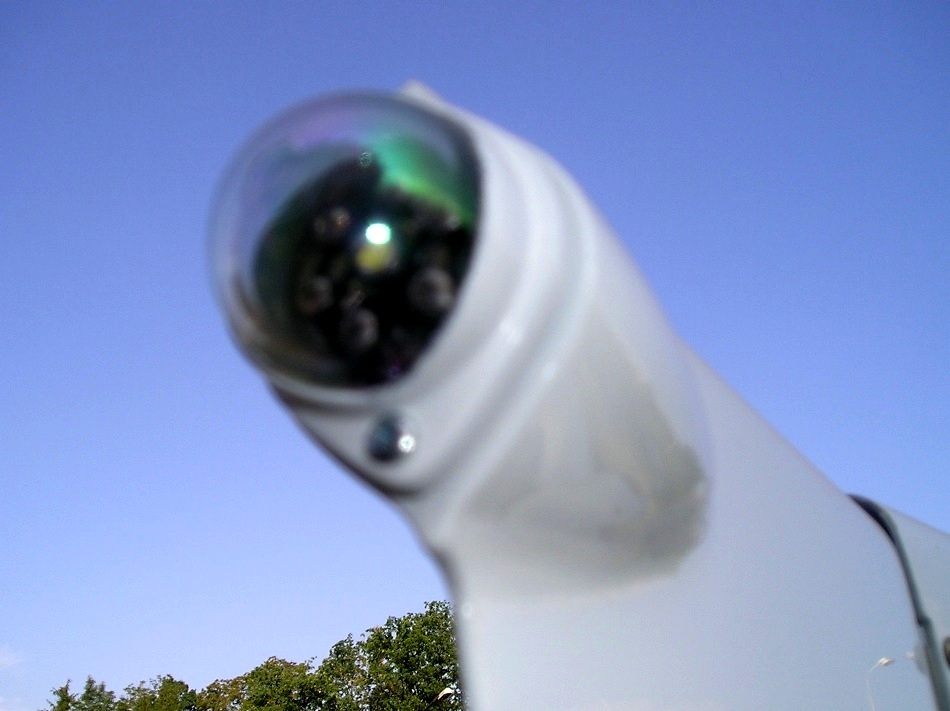

As tail light (when LED’s, than all over) I have installed the very bright LED from PerihelionDesign.com
See pictures.
Best Regards,
Bruno
Von: owner-europa-list-server(at)matronics.com [mailto:owner-europa-list-server(at)matronics.com] Im Auftrag von John Wighton
Gesendet: Mittwoch, 3. Februar 2010 10:16
An: europa-list(at)matronics.com
Betreff: Wing tip LED strobes
I own G-IPOD (XS Kit #573), the builder, Steve Vestuti, installed some cabling into the wings for wing tip strobes and/or nav lights. The cabling spec is good for LED type.
I would like some recommendations/feedback on equipment installed by other owners, including positioning, installation details, any info you have.
I can open up the wingtip at the LE to give access, making provision (possibly) for landing lights as well. Alternatively access could be made from the underside, the hole being made into an access hatch or sealed up.
______________________________
John Wighton
--
__________________________________
John Wighton
uk mob: +44 7767 623600
Business uk tel: +44 700 345 0071
Business uk fax: +44 700 345 0072
__________________________________ | Quote: | | http://www.matronics.com/Navigator?Europa-List |
