wire ties, NACA vents


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> RV10-List
View previous topic :: View next topic
Author Message
larkrv10(at)yahoo.ca
Guest





PostPosted: Sat Oct 30, 2010 5:50 pm    Post subject: wire ties, NACA vents Reply with quote

Hi all

I'm just starting to rivet my tail cone together and thinking am about add ons for the interior of the tail cone. I am wondering where to purchase the NACA vents that have been used to supply air to the overhead consoles? Also the plastic or nylon lightening hole wire ties?

I'd also like anyones opinions on where to place doublers for Nav and Com antennaes. I recall seeing a doubler near the aft end of the bottom skin for a nav antennae. I also believe others have placed one com antennae on the the bottom, but think they usually go under the baggage area?

As well I'd like to rivet the little Avery Tools rudder cable fairings to the aft side skin and am wondering about placement over the long narrow oval holes? I guess I'm wondering where the cable actually exits the skin?

Thx.

Rick
#40956
Southampton, Ont.





[quote][b]


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
Back to top

rleffler



Joined: 05 Nov 2006
Posts: 680

PostPosted: Sun Oct 31, 2010 3:13 am    Post subject: wire ties, NACA vents Reply with quote

Rick,

You’ll probably get as many different responses as there are folks on this list.

There is no hurry for the naca vents in the rear. The top skin is one of the last items you rivet, so you can be 95% done with the whole aircraft and still install the naca vents. I installed mine well after I attached the empennage to the fuselage. You also want to check out Aerosport Products naca vent controller.

I’m not sure what you mean by lightening hole wire ties. There are wire ties, but none are specific for holes. I prefer adel clamps and lacing, but you’ll find folks that are just as satisfied with nylon wire ties. There should be plenty in the archives debating the merit of both approaches and using wire ties firewall forward. There is also a special grommet edging for the holes to protect wiring from rubbing. (http://www.aircraftspruce.com/catalog/appages/grommetedging.php) For bringing wires through holes, I prefer using F-10111 (-R-L) and an adel clamp. You can order the F-10111 from Vans or simply make your own. I’ve included an excerpt from the plans that you probably don’t have yet (OP37-11) to show you.

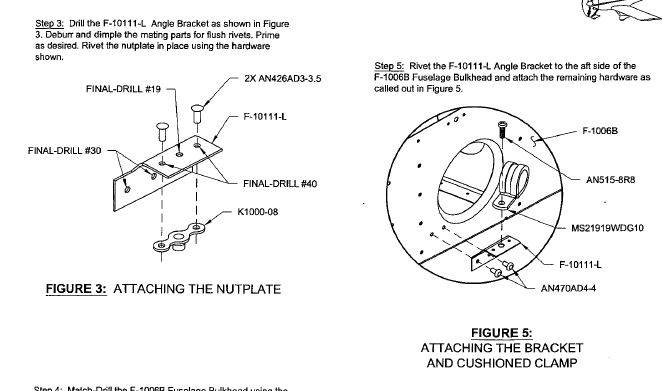

<![endif]--><![if !vml]>[img]cid:image003.jpg(at)01CB78CA.69C55CA0[/img]<![endif]>


For the locations of the antenna, there are also many opinions. You’ll want to understand the minimum distance required between each antenna. Do you have a list of all the devices you’ll need an antenna for? Be sure to include all GPS antenna (you may have more than one) and other options like XM and Navworx (ADS-B). My comm antenna are under the rear seat. Some folks prefer one on the bottom and one on the top for better ground communication. You’ll want to keep about 3’ between them. As far as the NAV goes, I haven’t decided on whether I’m going to locate it on the rear of the empennage or in the top of the vertical. I’ve seen both install locations. I’ve also seen the cat whisker type installed backwards too and it seems to work ok. Commant’s instructions stat that the whiskers should point forward. Others have put something like Bob Archer’s antenna in the wing tips with mixed results. Some work great and some don’t.

On the fairings, wait until you have the cable installed for precise placement of the fairing. Then you can judge how forward or aft you want to locate the fairing. I also used the fairings where the rudder cables come out of the tunnel in the cabin.

Hope this helps…….

Bob
http://mykitlog.com/rleffler

From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Rick Lark
Sent: Saturday, October 30, 2010 9:47 PM
To: RV10-list
Subject: wire ties, NACA vents

Hi all



I'm just starting to rivet my tail cone together and thinking am about add ons for the interior of the tail cone. I am wondering where to purchase the NACA vents that have been used to supply air to the overhead consoles? Also the plastic or nylon lightening hole wire ties?



I'd also like anyones opinions on where to place doublers for Nav and Com antennaes. I recall seeing a doubler near the aft end of the bottom skin for a nav antennae. I also believe others have placed one com antennae on the the bottom, but think they usually go under the baggage area?



As well I'd like to rivet the little Avery Tools rudder cable fairings to the aft side skin and am wondering about placement over the long narrow oval holes? I guess I'm wondering where the cable actually exits the skin?



Thx.



Rick

#40956

Southampton, Ont.
Quote:


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List



 Description:
 Filesize:  37.52 KB
 Viewed:  6296 Time(s)




 Description:
 Filesize:  9.98 KB
 Viewed:  6296 Time(s)




_________________
Bob Leffler
N410BL - Phase I
http://mykitlog.com/rleffler
Back to top
View user's profile Send private message
larkrv10(at)yahoo.ca
Guest





PostPosted: Sun Oct 31, 2010 9:24 am    Post subject: wire ties, NACA vents Reply with quote

Hi Bob. Thx for the advise.

Looks like I'm jumping the gun a bit with the vents, so I'm glad to hear they can go in much later. Do you know where to purchase the vents? It takes lots of time to get things shipped up here in the "wilds of Canada".

I am concerned about the rudder cable fairings as I don't see how I'd get in there after the aft deck is in place, so I may take a chance and put them in before I close up back there.

With regards to the lightening hole wire ties, I got lucky this morning and found them in the Panduit Co. web site. They are part # LHMS-S10, under the "cable management accessories>wire management mounts used with cable ties>screws/rivet applied" part of the Panduit web site. I think they're pretty slick. Just gotta find out who stocks them.

I do know what I'm going to install as far as avionics, just got to decide where I want the antenna's. If anyone has a picture of the rear mounted "cat's whisker", please let me know.

Regards,

Rick
#40956





--- On Sun, 10/31/10, Bob Leffler <rv(at)thelefflers.com> wrote:

Quote:

From: Bob Leffler <rv(at)thelefflers.com>
Subject: RE: wire ties, NACA vents
To: rv10-list(at)matronics.com
Received: Sunday, October 31, 2010, 11:08 AM


Rick,



You’ll probably get as many different responses as there are folks on this list.



There is no hurry for the naca vents in the rear. The top skin is one of the last items you rivet, so you can be 95% done with the whole aircraft and still install the naca vents.� I installed mine well after I attached the empennage to the fuselage. You also want to check out Aerosport Products naca vent controller.



I’m not sure what you mean by lightening hole wire ties. There are wire ties, but none are specific for holes. I prefer adel clamps and lacing, but you’ll find folks that are just as satisfied with nylon wire ties. There should be plenty in the archives debating the merit of both approaches and using wire ties firewall forward. There is also a special grommet edging for the holes to protect wiring from rubbing. (http://www.aircraftspruce.com/catalog/appages/grommetedging.php) �For bringing wires through holes, I prefer using F-10111 (-R-L) and an adel clamp. You can order the F-10111 from Vans or simply make your own. I’ve included an excerpt from the plans that you probably don’t have yet (OP37-11) to show you.



[img]cid:1.1725059738(at)web120717.mail.ne1.yahoo.com[/img]





For the locations of the antenna, there are also many opinions. You’ll want to understand the minimum distance required between each antenna. Do you have a list of all the devices you’ll need an antenna for? Be sure to include all GPS antenna (you may have more than one) and other options like XM and Navworx (ADS-B). My comm antenna are under the rear seat. Some folks prefer one on the bottom and one on the top for better ground communication. You’ll want to keep about 3’ between them. As far as the NAV goes, I haven’t decided on whether I’m going to locate it on the rear of the empennage or in the top of the vertical. I’ve seen both install locations. � I’ve also seen the cat whisker type installed backwards too and it seems to work ok. Commant’s instructions stat that the whiskers should point forward. Others have put something like Bob Archer’s antenna in the wing tips with mixed results. Some work great and some don’t.



On the fairings, wait until you have the cable installed for precise placement of the fairing. Then you can judge how forward or aft you want to locate the fairing. I also used the fairings where the rudder cables come out of the tunnel in the cabin.



Hope this helps…….



Bob

http://mykitlog.com/rleffler



From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Rick Lark
Sent: Saturday, October 30, 2010 9:47 PM
To: RV10-list
Subject: wire ties, NACA vents



Hi all





I'm just starting to rivet my tail cone together and thinking am about add ons for the interior of the tail cone. I am wondering where to purchase the NACA vents that have been used to supply air to the overhead consoles? Also the plastic or nylon lightening hole wire ties?





I'd also like anyones opinions on where to place doublers for Nav and Com antennaes. I recall seeing a doubler near the aft end of the bottom skin for a nav antennae. I also believe others have placed one com antennae on the the bottom, but think they usually go under the baggage area?





As well I'd like to rivet the little Avery Tools rudder cable fairings to the aft side skin and am wondering about placement over the long narrow oval holes? I guess I'm wondering where the cable actually exits the skin?





Thx.





Rick


#40956


Southampton, Ont.

Quote:




- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List



 Description:
 Filesize:  9.98 KB
 Viewed:  6286 Time(s)



Back to top

Lenny Iszak



Joined: 23 Mar 2008
Posts: 270

PostPosted: Sun Oct 31, 2010 10:24 am    Post subject: Re: wire ties, NACA vents Reply with quote

Rick,

Mouser has those wire mounts:

http://www.mouser.com/ProductDetail/Panduit/LHMS-S10-D/?qs=sGAEpiMZZMuXpqUce5NjkbL3gaN3TcZpHd8Oc2kgTA4%3D

Lenny


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
Back to top
View user's profile Send private message
rleffler



Joined: 05 Nov 2006
Posts: 680

PostPosted: Sun Oct 31, 2010 11:56 am    Post subject: wire ties, NACA vents Reply with quote

You can order the naca vents from Vans.  SV-1 for the vent and sc-3 for hose.     Don’t order their sv-5.  Get the eyeball vents from Steinair.

Until you put the horizontal and vertical on, you’ve got plenty of room to get a hand in to buck.

bob


From: owner-rv10-list-server(at)matronics.com [mailto:owner-rv10-list-server(at)matronics.com] On Behalf Of Rick Lark
Sent: Sunday, October 31, 2010 1:17 PM
To: rv10-list(at)matronics.com
Subject: RE: wire ties, NACA vents

Hi Bob. Thx for the advise.



Looks like I'm jumping the gun a bit with the vents, so I'm glad to hear they can go in much later. Do you know where to purchase the vents? It takes lots of time to get things shipped up here in the "wilds of Canada".



I am concerned about the rudder cable fairings as I don't see how I'd get in there after the aft deck is in place, so I may take a chance and put them in before I close up back there.



With regards to the lightening hole wire ties, I got lucky this morning and found them in the Panduit Co. web site. They are part # LHMS-S10, under the "cable management accessories>wire management mounts used with cable ties>screws/rivet applied" part of the Panduit web site. I think they're pretty slick. Just gotta find out who stocks them.



I do know what I'm going to install as far as avionics, just got to decide where I want the antenna's. If anyone has a picture of the rear mounted "cat's whisker", please let me know.



Regards,



Rick

#40956




Quote:



[quote][b]


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
Bob Leffler
N410BL - Phase I
http://mykitlog.com/rleffler
Back to top
View user's profile Send private message
johngoodman



Joined: 18 Sep 2006
Posts: 530
Location: GA

PostPosted: Sun Oct 31, 2010 12:45 pm    Post subject: Re: wire ties, NACA vents Reply with quote

Rick,
Bob's advice is good. Get the naca vents from Van - I did. As far as the Avery rudder cable fairings, I fretted like you and got them on as soon as I had the cables in. Don't bother. Like Bob said, you can rivet them on just before the tail feathers go on for the last time. As a suggestion, I riveted them, but it occurred to me that using a little pro-seal or JB Weld would do a good job as well. Also, you wouldn't need to drill holes. In my paint prep, the rudder cable fairings required a little "fill" because of minor (but noticeable) bulging between rivets.

John


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List

_________________
#40572 Phase One complete in 2011
Back to top
View user's profile Send private message Send e-mail Visit poster's website
larkrv10(at)yahoo.ca
Guest





PostPosted: Sun Oct 31, 2010 2:25 pm    Post subject: wire ties, NACA vents Reply with quote

All right then.....I can't argue with the advise of either of you John or Bob, so I will wait on the rudder cable fairings. I will have a look on Vans web site again for those NACA vents. I did look but must have missed them. Thx to both of you...

Rick
#40956

--- On Sun, 10/31/10, johngoodman <johngoodman(at)earthlink.net> wrote:

Quote:

From: johngoodman <johngoodman(at)earthlink.net>
Subject: Re: wire ties, NACA vents
To: rv10-list(at)matronics.com
Received: Sunday, October 31, 2010, 8:45 PM

--> RV10-List message posted by: "johngoodman" <johngoodman(at)earthlink.net (johngoodman(at)earthlink.net)>

Rick,
Bob's advice is good. Get the naca vents from Van - I did. As far as the Avery rudder cable fairings, I fretted like you and got them on as soon as I had the cables in. Don't bother. Like Bob said, you can rivet them on just before the tail feathers go on for the last time. As a suggestion, I riveted them, but it occurred to me that using a little pro-seal or JB Weld would do a good job as well. Also, you wouldn't need to drill holes. In my paint prep, the rudder cable fairings required a little "fill" because of minor (but noticeable) bulging between rivets.

John

--------
#40572 QB. Working on Cowling &amp; Panel
N711JG reserved


Read this topic online here:

http://forums.matronics.com/viewtopic.php?p=31atronics.com/Navigator?RV10-List" target=_blank>http://www.matronics.com/= - MATRONICS href="http://forums.matronics.com/" target=_blank>http://forums.matronbsp; - List Contribution Web Site -http://www=======================



[quote][b]


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
Back to top

rene(at)felker.com
Guest





PostPosted: Sun Oct 31, 2010 3:06 pm    Post subject: wire ties, NACA vents Reply with quote

I used proseal to put them on. Worked great and have held up well.

Rene'
801-721-6080
--


- The Matronics RV10-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV10-List
