18t oleo

Matronics Email Lists Forum Index -> Yak-List

View previous topic :: View next topic

Author Message

JOE HOWSE

Joined: 10 Jan 2006
Posts: 140
Location: DUNCAN BC CANADA

Posted: Sun Dec 05, 2010 9:55 am Post subject: 18t oleo

Does anyone have a drawing for the landing gear  oleo struts,



 Joe

   [quote][b]

- The Matronics Yak-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Yak-List

_________________
J.C. HOWSE

czech6(at)mesanetworks.ne
Guest

Posted: Sun Dec 05, 2010 11:43 am Post subject: 18t oleo

Yes.

 [quote]   ---

- The Matronics Yak-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Yak-List

Vic

Joined: 12 Aug 2008
Posts: 116
Location: Southern Bavaria

Posted: Sun Dec 05, 2010 4:32 pm Post subject: Re: 18t oleo

Hello Joe,



maybe some photos could help : For disassembling open top and bottom gas valves, drain the oil from the top valve. Unscrew the threaded ring at the bottom and pull the leg out. There are  sets of o-rings for static and dynamic sealing, and a felt "seal" . The damping valve could do with some mod I believe. Watch this place for my findings.



Cheers

Vic

- The Matronics Yak-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Yak-List

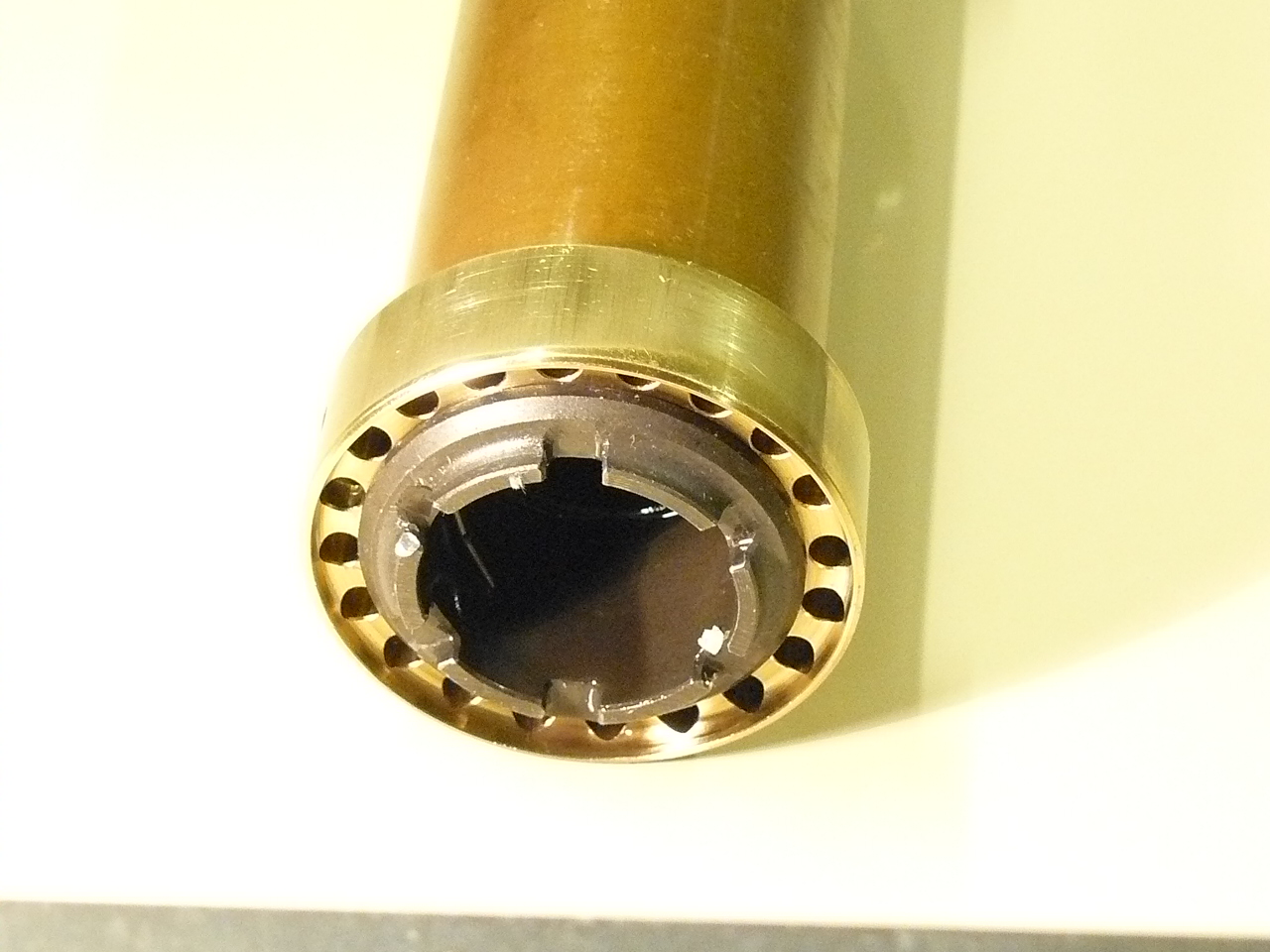

top bush.JPG

Description:

Filesize:

392.22 KB

Viewed:

2280 Time(s)

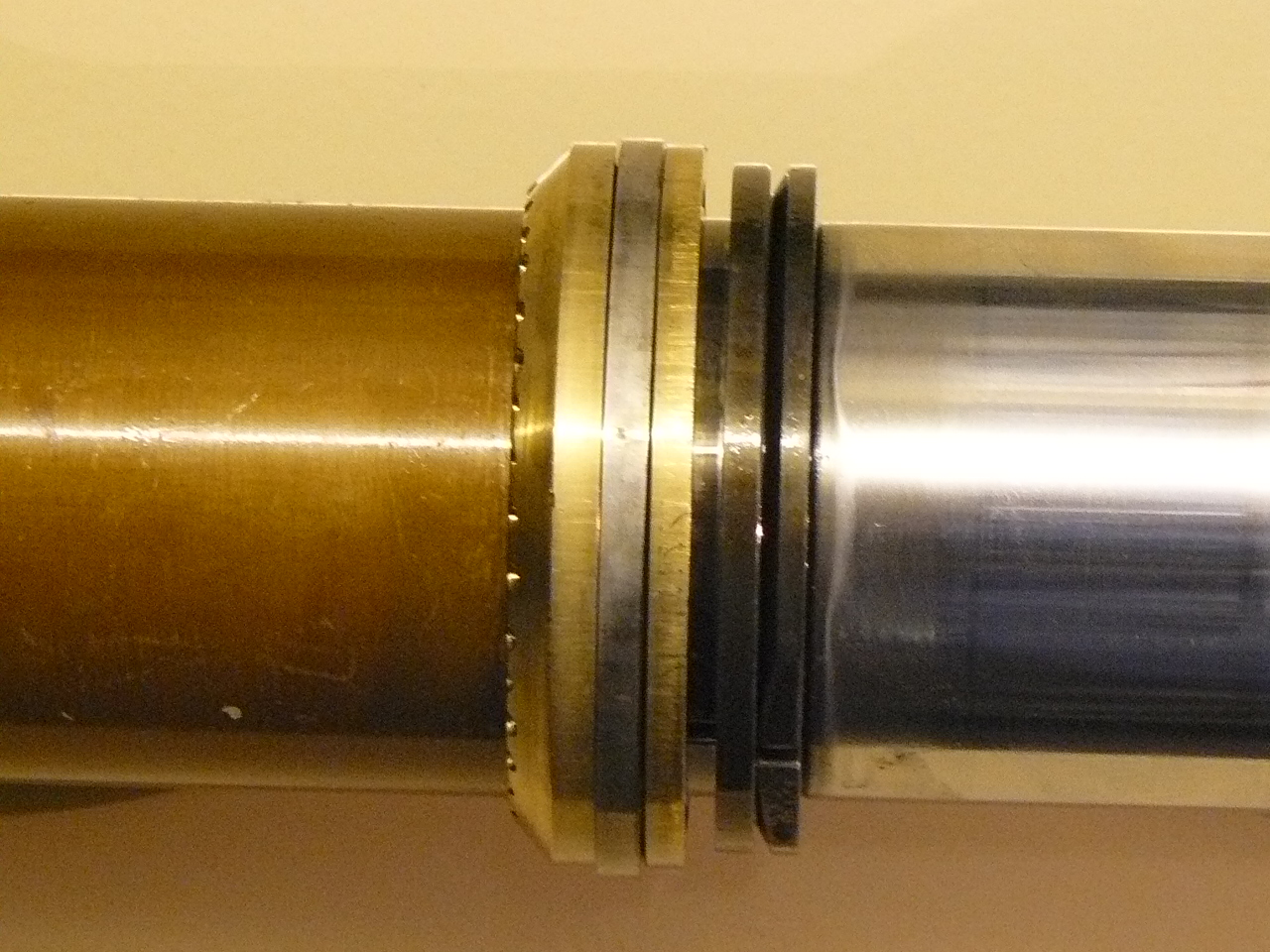

damping valve.JPG

Description:

Filesize:

617.57 KB

Viewed:

2280 Time(s)

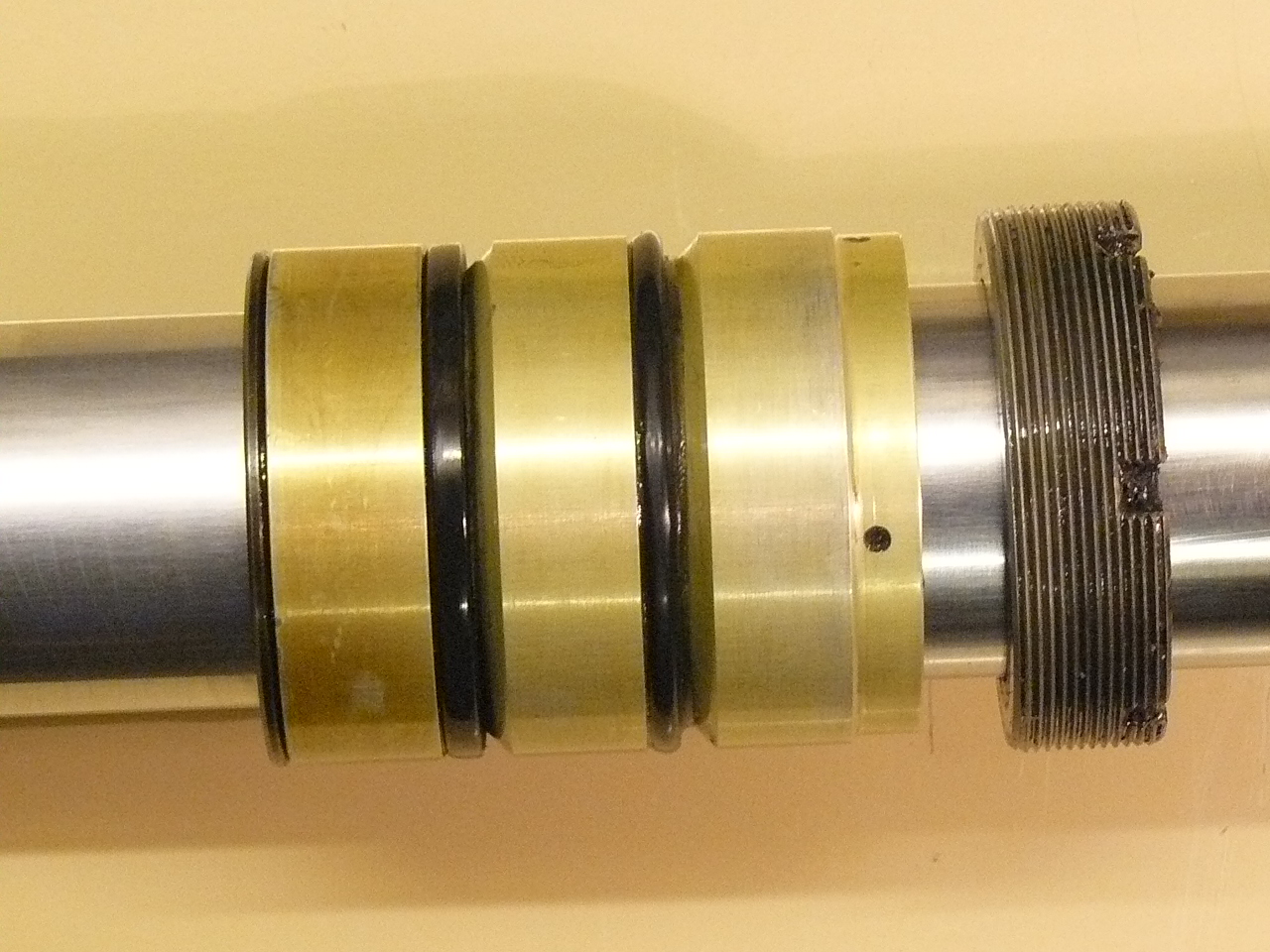

bottom bush.JPG

Description:

Filesize:

624.82 KB

Viewed:

2280 Time(s)

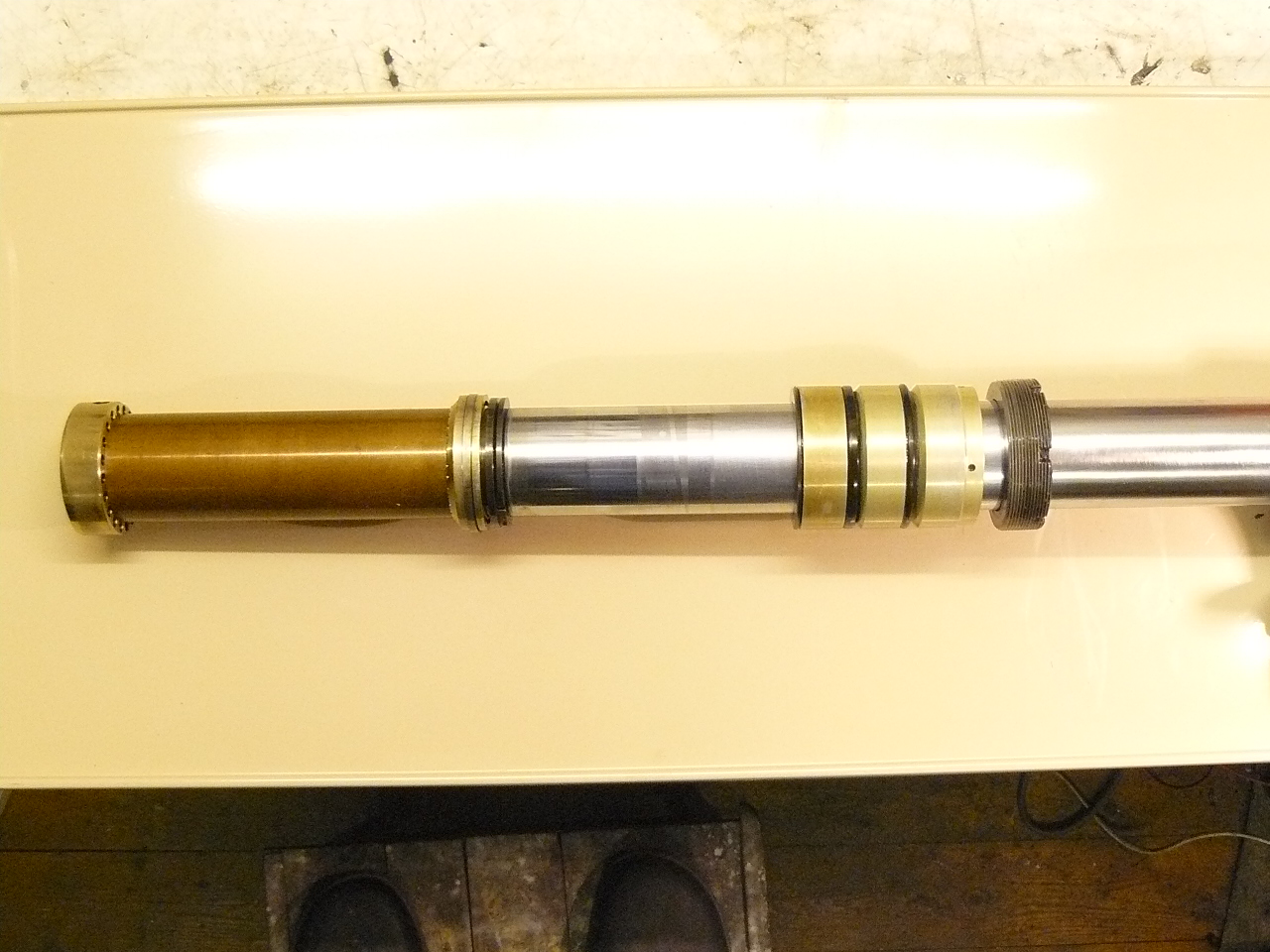

Description:

Filesize:

507.57 KB

Viewed:

2280 Time(s)

JOE HOWSE

Joined: 10 Jan 2006
Posts: 140
Location: DUNCAN BC CANADA

Posted: Sun Dec 05, 2010 6:34 pm Post subject: 18t oleo

 	  Quote:
		  Vic





Thanks, we have not tied to drop it out yet but your observations are

already a help



Joe

 	  Quote:




 maybe some photos could help : For disassembling open top and bottom gas

 valves, drain the oil from the top valve. Unscrew the threaded ring at the

 bottom and pull the leg out. There are  sets of o-rings for static and

 dynamic sealing, and a felt "seal" . The damping valve could do with some

 mod I believe. Watch this place for my findings.



 Cheers

 Vic





 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=322394#322394





 Attachments:



 http://forums.matronics.com//files/top_bush_203.jpg

 http://forums.matronics.com//files/damping_valve_883.jpg

 http://forums.matronics.com//files/bottom_bush_186.jpg

 http://forums.matronics.com//files/assembly_190.jpg

- The Matronics Yak-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?Yak-List

_________________
J.C. HOWSE
