Mike Whisky
Joined: 05 Jun 2006
Posts: 336
Location: Switzerland
|
 Posted: Mon May 02, 2011 11:26 am Post subject: Ignition wire routing on IO-540 with lightspeed ignition |
 |
|
Hello builders,
I am trying to find my way back into building and plan to finalize the FWF wiring.
How did other route the ignition wires from the Lightspeed ignition coils to the spark plugs. I have an TMX-540 with single Lightspeed ignition.
It would be great to see some pictures.
Many thanks
Mike
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
_________________
RV-10 builder (flying)
#511 |
|
| Back to top |
|
 |
Tim Olson
Joined: 25 Jan 2007
Posts: 2879
|
| Posted: Mon May 02, 2011 11:54 am Post subject: Ignition wire routing on IO-540 with lightspeed ignition |
|
|
I just enlarged the hole in a standard eyeball pass through
and put all 3 cables through that, and RTV'd them in
so they wouldn't vibrate. Then used standard spark plug
baffle pass throughs on the baffling, and RTV'd them there
too since they're smaller cables than plug wires are.
Nothing too fancy.
Tim Olson - RV-10 N104CD
do not archive
On 5/2/2011 2:26 PM, Michael Wellenzohn wrote:
| Quote: |
Hello builders,
I am trying to find my way back into building and plan to finalize the FWF wiring.
How did other route the ignition wires from the Lightspeed ignition coils to the spark plugs. I have an TMX-540 with single Lightspeed ignition.
It would be great to see some pictures.
Many thanks
Mike
--------
RV-10 builder (interior,avionics, wiring)
#511
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=338651#338651
|
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
n223rv(at)wolflakeairport
Guest
|
| Posted: Mon May 02, 2011 12:25 pm Post subject: Ignition wire routing on IO-540 with lightspeed ignition |
|
|

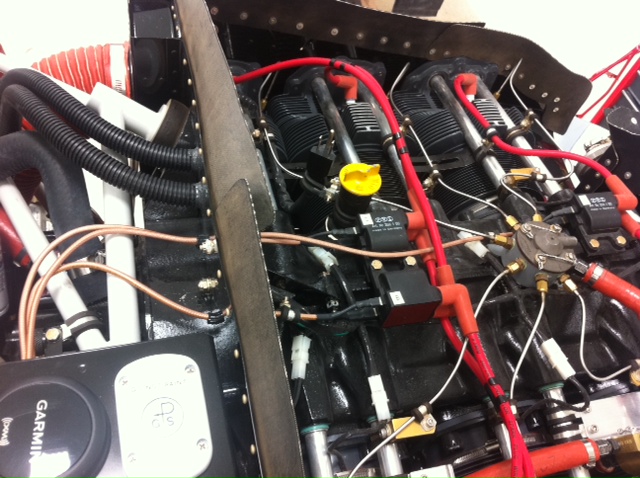

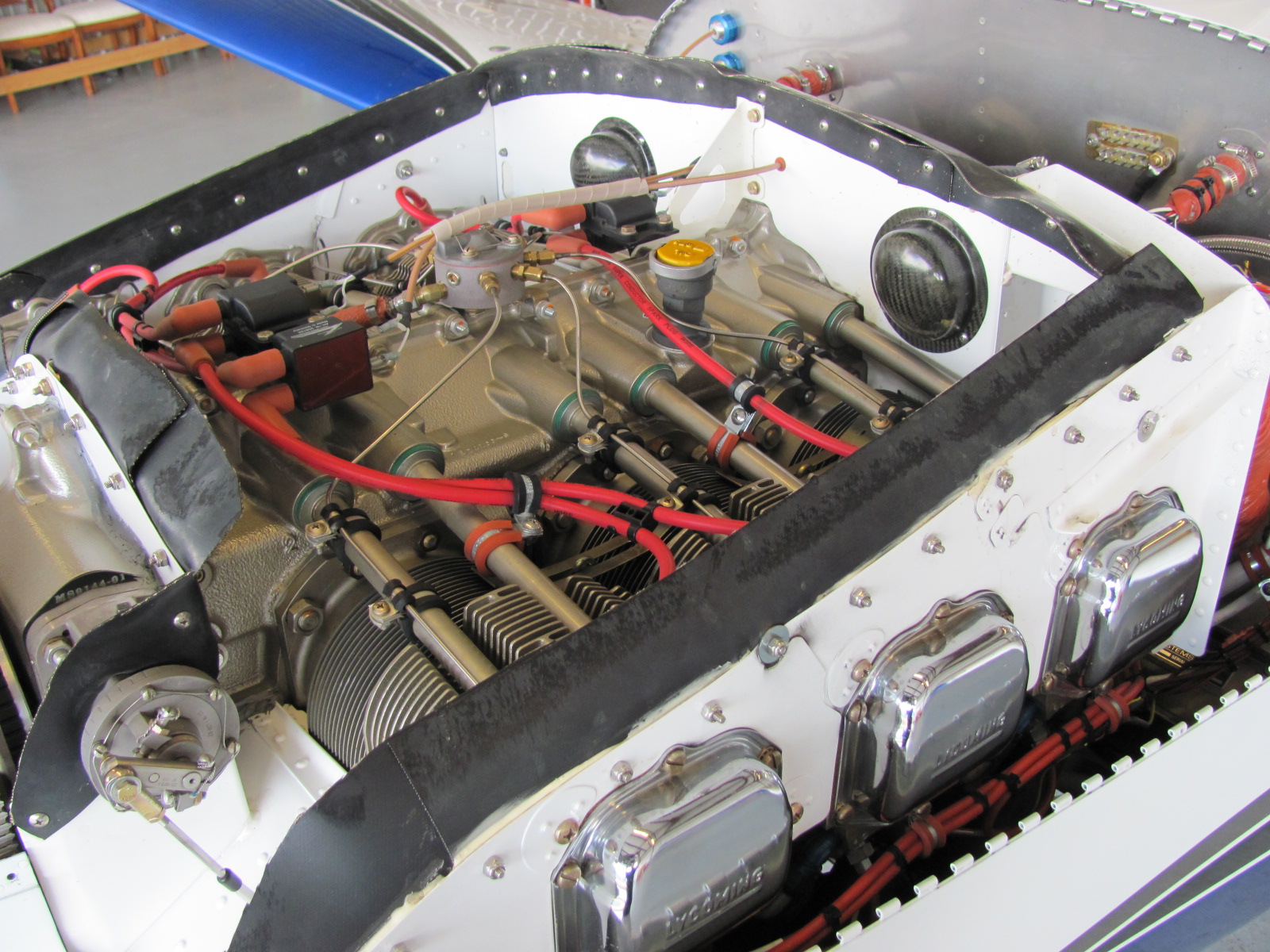

Here is what I did.
-Mike Kraus
Sent from my iPhone
On May 2, 2011, at 3:26 PM, "Michael Wellenzohn" <rv-10(at)wellenzohn.net> wrote:
| Quote: |
Hello builders,
I am trying to find my way back into building and plan to finalize the FWF wiring.
How did other route the ignition wires from the Lightspeed ignition coils to the spark plugs. I have an TMX-540 with single Lightspeed ignition.
It would be great to see some pictures.
Many thanks
Mike
--------
RV-10 builder (interior,avionics, wiring)
#511
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=338651#338651
====================================
|
====================================
====================================
====================================
<pre><b><font size=2 color="#000000" face="courier new,courier">
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
| Description: |
|
| Filesize: |
113.7 KB |
| Viewed: |
4337 Time(s) |
|
| Description: |
|
| Filesize: |
148.55 KB |
| Viewed: |
4337 Time(s) |
|
| Description: |
|
| Filesize: |
130.69 KB |
| Viewed: |
4337 Time(s) |
|
|
|
| Back to top |
|
|
aerosport1
Joined: 07 Nov 2007
Posts: 231
|
| Posted: Mon May 02, 2011 12:25 pm Post subject: Ignition wire routing on IO-540 with lightspeed ignition |
|
|

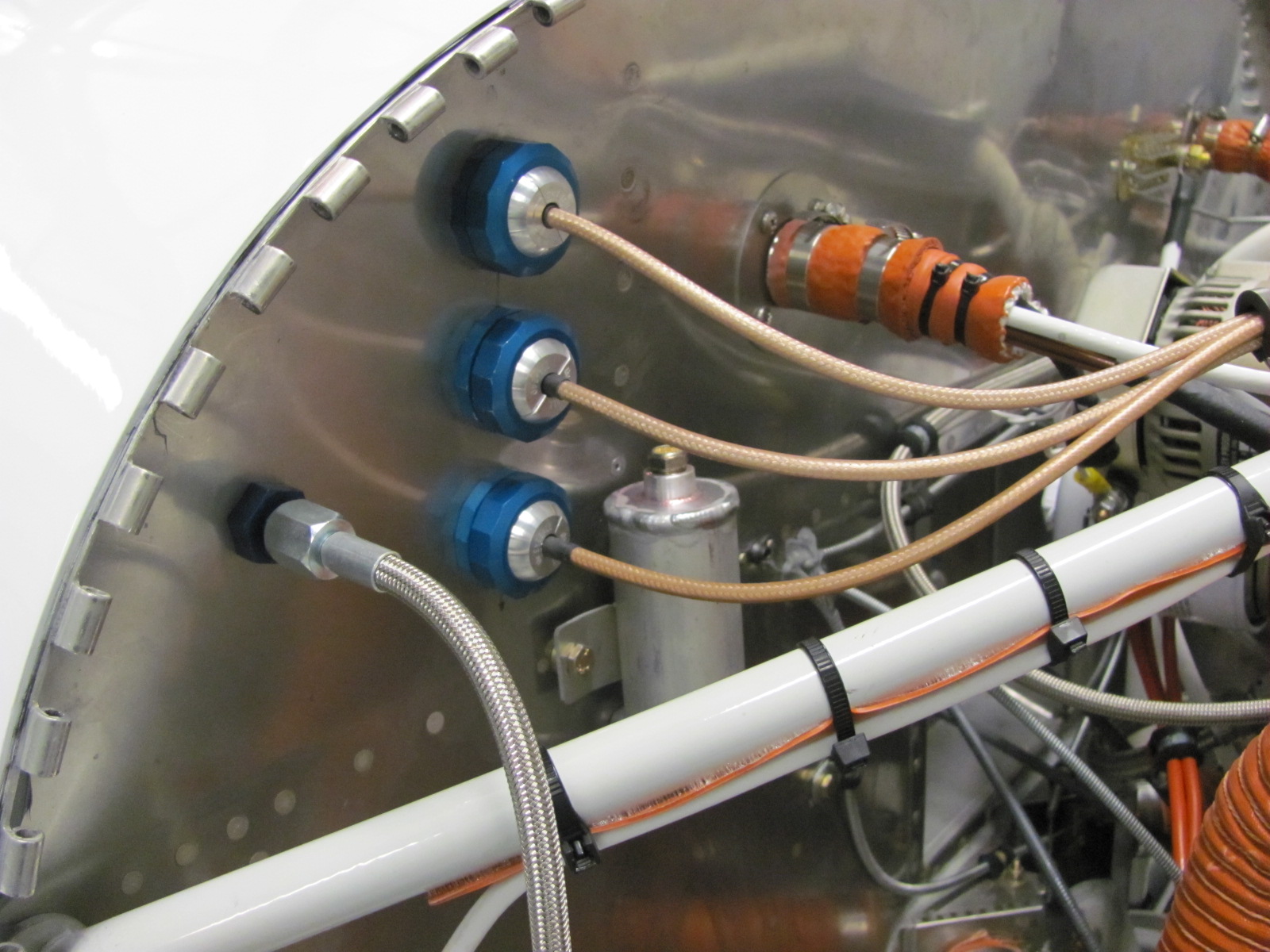

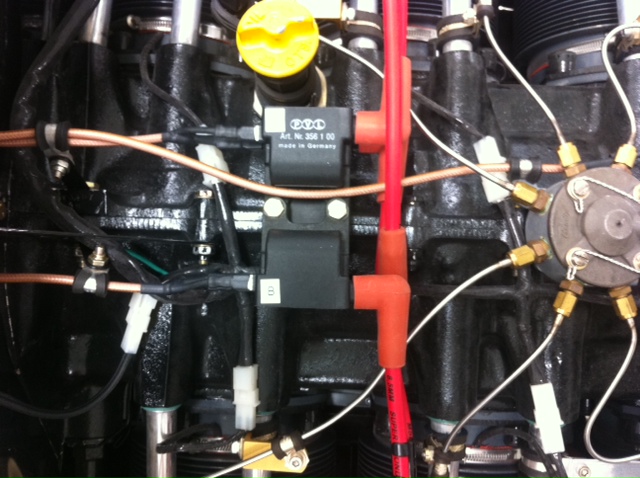

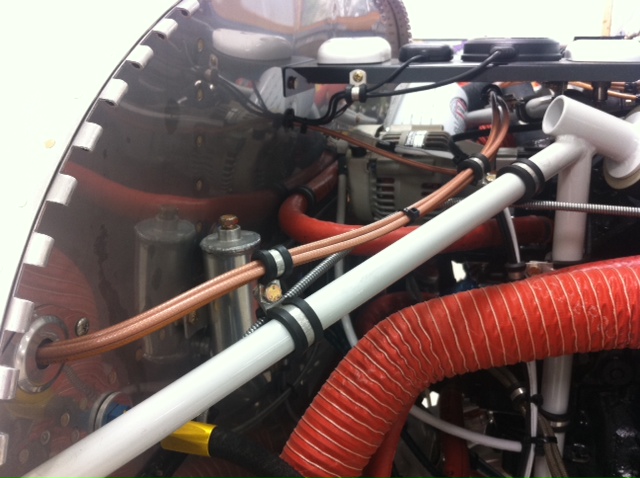

Michael here is what I did same as Tim on the fire wall and then into the
