ADAHRS Installation


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> RV8-List
View previous topic :: View next topic
Author Message
graybeard



Joined: 20 Sep 2011
Posts: 33
Location: Grants Pass, OR
PostPosted: Sat Nov 05, 2011 12:43 pm    Post subject: ADAHRS Installation Reply with quote
Does anyone out there have a photo of a Dynon ADAHRS installation they could share with me?

Stan Loer
RV-8 QB


[quote][b]

- The Matronics RV8-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV8-List
Back to top
View user's profile Send private message
Dan.Beadle(at)inclinesoft
Guest
PostPosted: Sat Nov 05, 2011 1:15 pm    Post subject: ADAHRS Installation Reply with quote
I am using GRT, but I think the AHRS system is about the same. I am putting the magnetometers just aft of the rear baggage.

See: http://mykitlog.com/users/display_log.php?user=danbeadle&project=88&category=1659&log=135870&row=16

I am putting the AHRS on a shelf attached to the instrument panel. The whole avionics system removes for bench work. I have 4 power connectors one DB connector and a bunch of antennas to disconnect, then the whole assembly slides out for work.
http://mykitlog.com/users/display_log.php?user=danbeadle&project=88&category=1659&log=135870&row=16

I hope this is useful.

Dan Beadle
RV-8

From: owner-rv8-list-server(at)matronics.com [mailto:owner-rv8-list-server(at)matronics.com] On Behalf Of Stan Loer
Sent: Saturday, November 05, 2011 1:41 PM
To: rv8-list(at)matronics.com
Subject: RV8-List: ADAHRS Installation

Does anyone out there have a photo of a Dynon ADAHRS installation they could share with me?



Stan Loer

RV-8 QB




Quote:
Raiser. Click on[/b]www.buildersbooks.com; * HomebuiltHELP www.homebuilthelp.com
http://www.matronics.com/contribution[/b] [/quote]0
Quote:
1
Quote:
2
Quote:
3
Quote:
4
Quote:
5
Quote:
6
Quote:
7
Quote:
8
Quote:
9
[quote][b]

- The Matronics RV8-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV8-List
Back to top
hawkeyestof(at)yahoo.com
Guest
PostPosted: Sat Nov 05, 2011 4:43 pm    Post subject: ADAHRS Installation Reply with quote
Stan: Photo of my ADAHRS in RV-8A I would suggest mounting forward of the visible bulkhead - much easier to get to it if needed.  Jerry



From: Stan Loer <stazel(at)cpros.com>
To: rv8-list(at)matronics.com
Sent: Saturday, November 5, 2011 3:40 PM
Subject: ADAHRS Installation

Does anyone out there have a photo of a Dynon ADAHRS installation they could share with me?

Stan Loer
RV-8 QB


Quote:


ollow target=_blank>www.aeroelectric.com
/" rel=nofollow target=_blank>www.buildersbooks.com
ofollow target=_blank>www.homebuilthelp.com
llow target=_blank>http://www.matronics.com/contribution



- The Matronics RV8-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?RV8-List


 Description:
 Filesize:  517.76 KB
 Viewed:  7277 Time(s)

Back to top
Matt Dralle
Site Admin


Joined: 08 Nov 2005
Posts: 26321
Location: Livermore CA USA
PostPosted: Sat Nov 05, 2011 5:05 pm    Post subject: ADAHRS Installation Reply with quote

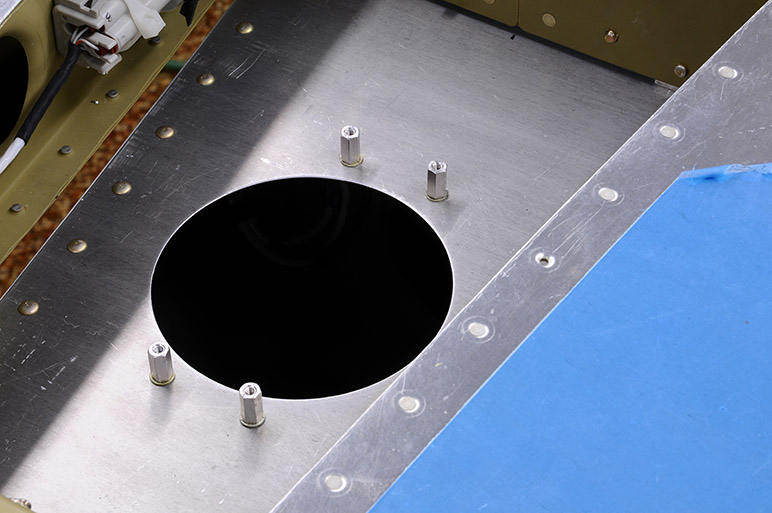

I just installed a Dynon Skyview system in my RV-6. The Dynon is different from the GRT in that the AHRS and the Magnetometer are in the SAME box. With the GRT AHRS, you can mount it behind the panel without a problem since RF/Magnetic interference isn't a problem. On my RV-8, I put the AHRS behind the panel and mounted the Magnetometers in the tail under the fin. This worked out very well and I'd do it again this way.

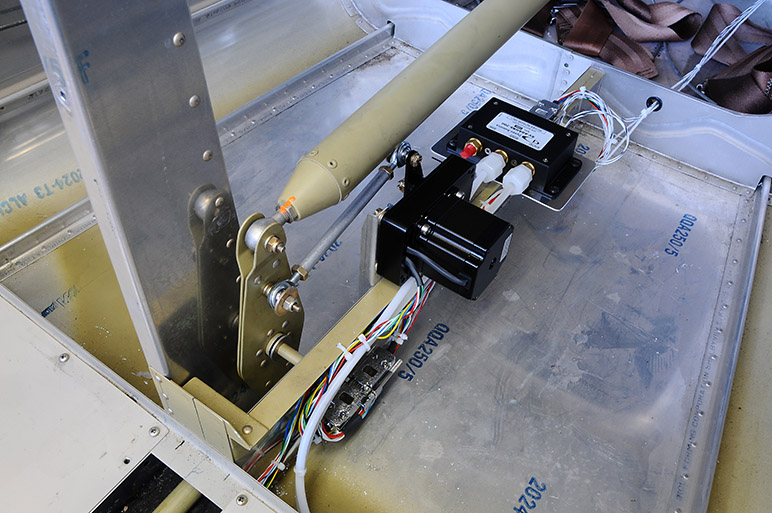

On the RV-6, with the Dynon combined AHRS/Magnetometer, I opted to mount it right behind the elevator bellcrank. This seems to work "pretty well", but I'm finding that the close proximity of the Elevator Autopilot Servo causes the Magnetometer to swing 2-5 degrees when its powered on. If I had to do it again, I would extend the Static and Pitot lines back to under the fin and mount it there, similar to how the the GRT Magnetometers are mounted on the RV-8.
