 Posted: Sat Aug 18, 2012 8:24 am Post subject: Jacking up the '10 to do wheel maintenance |
 |
|
Having just completed my first condition inspection, I found that I
needed jacking solutions so I could pull the wheels.
Thanks to all who have previously posted jack solutions. I'm posting my
designs to hopefully save others some time. The key things for me; it
had to be reliable, low cost to fabricate, and no welding.
Main gear:
http://www.mykitlog.com/users/display_log.php?user=MauleDriver&project=224&category=0&log=154391&row=2
Nose gear:
http://www.mykitlog.com/users/display_log.php?user=MauleDriver&project=224&category=0&log=154392&row=1
Bill "back to traveling again" Watson
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
 |
coop85(at)verizon.net
Guest
|
| Posted: Sat Aug 18, 2012 8:51 am Post subject: Jacking up the '10 to do wheel maintenance |
|
|
Bill,
These are great ideas and remarkably timely as it's that time of year for me again as well. Thanks!!!!
Marcus
do not archive
On Aug 18, 2012, at 12:23 PM, Bill Watson <Mauledriver(at)nc.rr.com> wrote:
Having just completed my first condition inspection, I found that I needed jacking solutions so I could pull the wheels.
Thanks to all who have previously posted jack solutions. I'm posting my designs to hopefully save others some time. The key things for me; it had to be reliable, low cost to fabricate, and no welding.
Main gear:
http://www.mykitlog.com/users/display_log.php?user=MauleDriver&project=224&category=0&log=154391&row=2
Nose gear:
http://www.mykitlog.com/users/display_log.php?user=MauleDriver&project=224&category=0&log=154392&row=1
Bill "back to traveling again" Watson
| | - The Matronics RV10-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RV10-List |
|
|
|
| Back to top |
|
|
carl.froehlich(at)verizon
Guest
|
| Posted: Sat Aug 18, 2012 9:45 am Post subject: Jacking up the '10 to do wheel maintenance |
|
|
Bill,

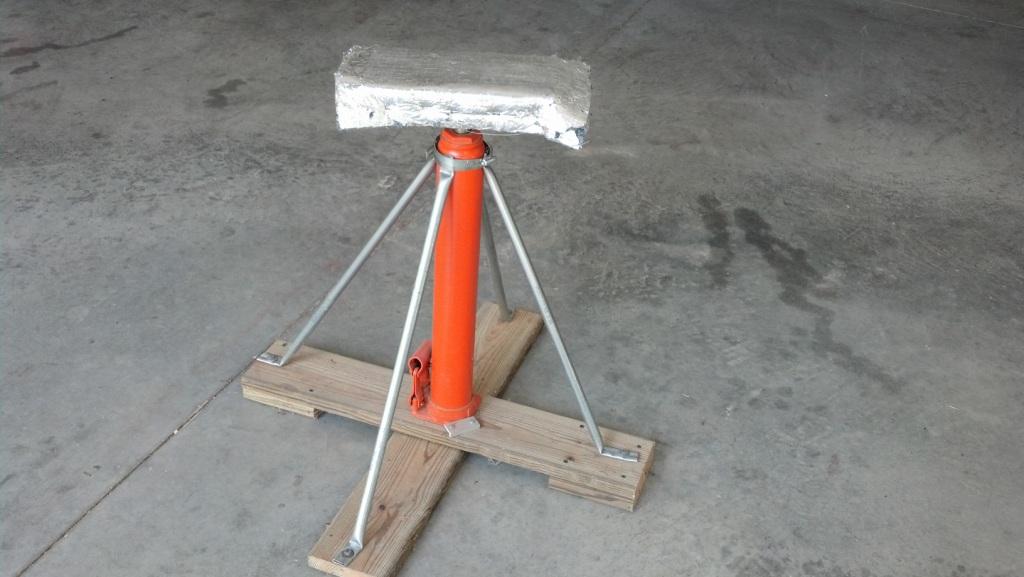

I did something similar but I use a padded block on top. The padded block
is just a 2x6 covered in scrap insulation material. The block is held in

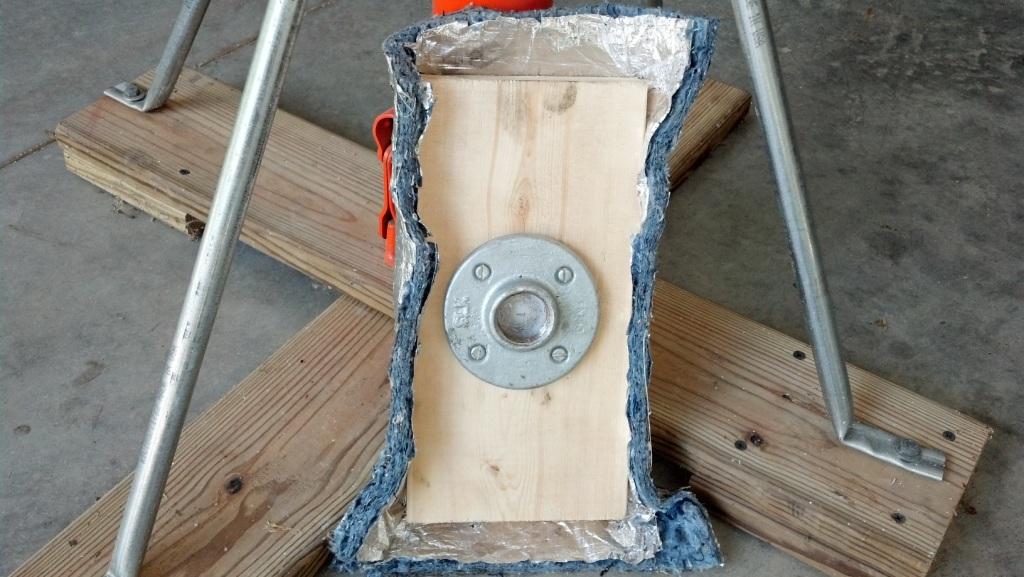

place by a pipe flange that has a 1/4" thick piece of scrap aluminum so that
