 Posted: Wed May 15, 2013 9:12 pm Post subject: Flap turn buckle |
 |
|

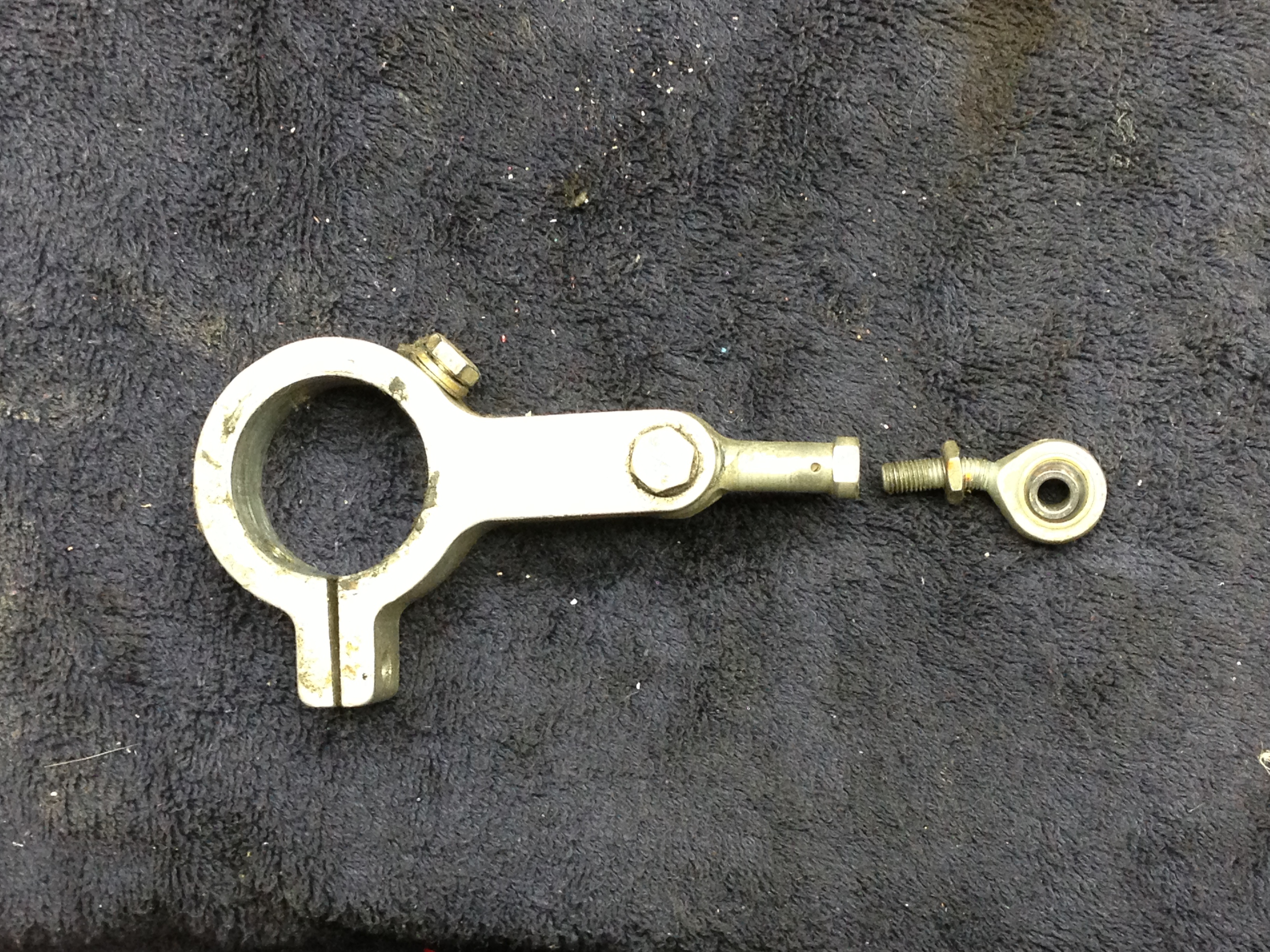

I know it's not called a turn buckle. For the life of me I can't think of the name. I need the bent piece ASAP.
Gary
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
| Description: |
|
| Filesize: |
2.67 MB |
| Viewed: |
8259 Time(s) |
|
|
|
| Back to top |
|
 |
mel(at)becknet.com
Guest
|
| Posted: Wed May 15, 2013 9:28 pm Post subject: Flap turn buckle |
|
|
Bellcrank
-mel via cell
On May 15, 2013, at 10:11 PM, Gary L Vogt <teamgrumman(at)yahoo.com (teamgrumman(at)yahoo.com)> wrote:
[quote]I know it's not called a turn buckle. For the life of me I can't think of the name. I need the bent piece ASAP.
Gary
<IMG_3383.JPG>
[b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
mel(at)becknet.com
Guest
|
| Posted: Wed May 15, 2013 9:40 pm Post subject: Flap turn buckle |
|
|
The bent part is the tang half of a clevis fastener. The pin that connects it to the fork half of the clevis is a clevis pin.
-mel via cell
On May 15, 2013, at 10:28 PM, Mel Beckman <mel(at)becknet.com (mel(at)becknet.com)> wrote:
[quote]Bellcrank
-mel via cell
On May 15, 2013, at 10:11 PM, Gary L Vogt <teamgrumman(at)yahoo.com (teamgrumman(at)yahoo.com)> wrote:
| Quote: | I know it's not called a turn buckle. For the life of me I can't think of the name. I need the bent piece ASAP.
Gary
<IMG_3383.JPG>
|
[b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
BARRY CHECK 6
Joined: 15 Mar 2011
Posts: 738
|
| Posted: Thu May 16, 2013 2:01 am Post subject: Flap turn buckle |
|
|
They are called "Ball End Fittings" or "End Ball Fittings" I have seen them called either way. They are either MALE or FEMALE. They are either LEFT or RIGHT hand threads. They are in the ACS catalog. Your bent piece is a MALE fitting and looks to be RIGHT handed. Measure the Max Diameter and get a thread count for proper size.
AYCYSAAAPI
Barry
“Chop’d Liver”
"The reason Benjamin Franklin was such a great inventor was everything lay before him. The reason why we don't have great inventors today is, everyone is trying to reinvent the wheel"
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
grumpyparts
Joined: 28 Jan 2009
Posts: 65
Location: EGHH
|
| Posted: Thu May 16, 2013 2:54 am Post subject: Re: Flap turn buckle |
|
|
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
mel(at)becknet.com
Guest
|
| Posted: Thu May 16, 2013 6:04 am Post subject: Flap turn buckle |
|
|
Apparently they go under both names (rod end appearing and ball end fitting):
I found this description which specifically describes these fittings and their role in bellcrank/control horn operation:
Ball end fittings are those swivel fittings used extensively in Control Systems, flight control systems in particular. They consist of a ball with flats opposite each other, encased in a ball housing which has some form of threaded end to attach to pushrods and cables. A hole through the ball accommodates a bolt which attaches the swivelling ball assembly to a bellcrank, control horn etc. The thickness of the ball between the flats is generally greater than the housing which allows the bolt/nut to be tightened on the ball without binding on the housing.
But I can only find them at suppliers under the name "rod end bearings", as Ian notes.
Here's an explanation of a potential washer caution if the bolt end securing the ball is small enough to pass through the ball housing should the ball be dislodged:
A problem occurs if the ball/housing wear or become distorted sufficiently in service to allow the ball to escape containment in the housing: the ball can fall out. Generally, the diameter of the hole in the housing is greater than the bolt head and under these conditions, the bolt head, although still tight on the ball and attached to the other part of the assembly passes through the housing allowing the connection to fall apart disconnecting the control. The cure is to have a large washer under the bolt/nut which will not pass through the hole left by the ball.
In many cases, a normal washer will also pass through the hole, so a washer with a larger outside diameter than normal is required. These washers are available and are called "penny washers".
It is strongly recommended that all operators and builders check all ball ends to ensure penny washers are in place or to at least ensure that the existing washer or bolt/nut are large enough not to pass through the housings in the event that a condition occurs to allow the ball to escape retention in the housing.I don't know if this applies in the Tiger's case; I haven't looked at the diagram. But it's something I wasn't aware if before and seems like a good thing to remember. Asymmetrical flaps can be scary!
-mel
On May 16, 2013, at 3:54 AM, "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)> wrote:
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
mel(at)becknet.com
Guest
|
| Posted: Thu May 16, 2013 6:08 am Post subject: Flap turn buckle |
|
|
| Quote: | Apparently they go under both names (rod end appearing and ball end fitting)
|
That should read "rod end bearing".
-mel via cell
On May 16, 2013, at 7:03 AM, "mel(at)becknet.com (mel(at)becknet.com)" <mel(at)becknet.com (mel(at)becknet.com)> wrote:
[quote]Apparently they go under both names (rod end appearing and ball end fitting):
I found this description which specifically describes these fittings and their role in bellcrank/control horn operation:
Ball end fittings are those swivel fittings used extensively in Control Systems, flight control systems in particular. They consist of a ball with flats opposite each other, encased in a ball housing which has some form of threaded end to attach to pushrods and cables. A hole through the ball accommodates a bolt which attaches the swivelling ball assembly to a bellcrank, control horn etc. The thickness of the ball between the flats is generally greater than the housing which allows the bolt/nut to be tightened on the ball without binding on the housing.
But I can only find them at suppliers under the name "rod end bearings", as Ian notes.
Here's an explanation of a potential washer caution if the bolt end securing the ball is small enough to pass through the ball housing should the ball be dislodged:
A problem occurs if the ball/housing wear or become distorted sufficiently in service to allow the ball to escape containment in the housing: the ball can fall out. Generally, the diameter of the hole in the housing is greater than the bolt head and under these conditions, the bolt head, although still tight on the ball and attached to the other part of the assembly passes through the housing allowing the connection to fall apart disconnecting the control. The cure is to have a large washer under the bolt/nut which will not pass through the hole left by the ball.
In many cases, a normal washer will also pass through the hole, so a washer with a larger outside diameter than normal is required. These washers are available and are called "penny washers".
It is strongly recommended that all operators and builders check all ball ends to ensure penny washers are in place or to at least ensure that the existing washer or bolt/nut are large enough not to pass through the housings in the event that a condition occurs to allow the ball to escape retention in the housing.I don't know if this applies in the Tiger's case; I haven't looked at the diagram. But it's something I wasn't aware if before and seems like a good thing to remember. Asymmetrical flaps can be scary!
-mel
On May 16, 2013, at 3:54 AM, "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)> wrote:
| Quote: |
===================================
courier new,courier">http://www.matronics.com/Navigator?TeamGrumman-List
===================================
cs.com
===================================
matronics.com/contribution
===================================
|
[b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:11 am Post subject: Flap turn buckle |
|
|
thanks Barry
From: FLYaDIVE <flyadive(at)gmail.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:01 AM
Subject: Re: TeamGrumman-List: Flap turn buckle
They are called "Ball End Fittings" or "End Ball Fittings" I have seen them called either way. They are either MALE or FEMALE. They are either LEFT or RIGHT hand threads. They are in the ACS catalog. Your bent piece is a MALE fitting and looks to be RIGHT handed. Measure the Max Diameter and get a thread count for proper size.
AYCYSAAAPI
Barry
“Chop’d Liver”
"The reason Benjamin Franklin was such a great inventor was everything lay before him. The reason why we don't have great inventors today is, everyone is trying to reinvent the wheel"
| Quote: | http://www.matronics.com/Navigator?TeamGrumman-L="nofollow" target="_blank" href="http://www.matronics.com/contributi==
|
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:13 am Post subject: Flap turn buckle |
|
|
Why, do you suppose, doesn't True Flight use the correct part? Did they change the whole assembly? If so, Why?
From: grumpyparts <i.r.m(at)btinternet.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:54 AM
Subject: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=400733#400733
http://www.matronics.com/Navigator?TeamG --> h -Matt Dralle, List=========
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:28 am Post subject: Flap turn buckle |
|
|
Those are female threaded. There are a Brazillion male threaded ones. Which one fits?
From: grumpyparts <i.r.m(at)btinternet.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:54 AM
Subject: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.com/viewthttp://forums.matronics.com</ &nbs href="http://www.matronics.com/contribution" target="_blank">http://ww=======================
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:28 am Post subject: Flap turn buckle |
|
|
Those are female threaded. There are a Brazillion male threaded ones. Which one fits?
From: grumpyparts <i.r.m(at)btinternet.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:54 AM
Subject: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.com/viewthttp://forums.matronics.com</ &nbs href="http://www.matronics.com/contribution" target="_blank">http://ww=======================
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:29 am Post subject: Flap turn buckle |
|
|
Those are female threaded. There are a Brazillion male threaded ones. Which one fits?
From: grumpyparts <i.r.m(at)btinternet.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:54 AM
Subject: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.com/viewthttp://forums.matronics.com</ &nbs href="http://www.matronics.com/contribution" target="_blank">http://ww=======================
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
teamgrumman(at)yahoo.com
Guest
|
| Posted: Thu May 16, 2013 9:31 am Post subject: Flap turn buckle |
|
|
http://www.aircraftspruce.com/catalog/appages/aurorabrng.php?clickkey=3939
I don't see and F44 anything
From: grumpyparts <i.r.m(at)btinternet.com>
To: teamgrumman-list(at)matronics.com
Sent: Thursday, May 16, 2013 3:54 AM
Subject: TeamGrumman-List: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.coef="http://www.matronics.com/Navigator?TeamGrumman-List" target="_blank --> h  href="http://www.matronics.com/contribution" target="_blank">http://www=======================
[quote][b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
flying-nut(at)cfl.rr.com
Guest
|
| Posted: Thu May 16, 2013 10:47 am Post subject: Flap turn buckle |
|
|
First, you need to get you a ACS catalog .... lots of info other than parts for sale.
Go to the ACS website and search on 'catalog' .... scroll down the page and download the PDF.
I'm guessing that you probably have a 1/4-28 male thread with #4 bolt through the ball .... it's an F44-14M (page 137)
If that's not it .... lemme know what the dimensions are.
Linn
On 5/16/2013 1:30 PM, Gary L Vogt wrote:
[quote] http://www.aircraftspruce.com/catalog/appages/aurorabrng.php?clickkey=3939
I don't see and F44 anything
From: grumpyparts <i.r.m(at)btinternet.com> (i.r.m(at)btinternet.com)
To: teamgrumman-list(at)matronics.com (teamgrumman-list(at)matronics.com)
Sent: Thursday, May 16, 2013 3:54 AM
Subject: Re: Flap turn buckle
--> TeamGrumman-List message posted by: "grumpyparts" <i.r.m(at)btinternet.com (i.r.m(at)btinternet.com)>
Its' a male Rod End. True Flight have them under p/n TAES501-3, but if you go that route you will need two thin AN960 washer to go either side of the ball to fit the fork. For a direct replacement with correct ball width try an Aurora GMW-4M-470 same as the original Heims F44-14M. Spruce has them at
http://www.aircraft-spruce.com/catalog/appages/aurorabearfem.php?clickkey=68819
Ian
Matair UK
Read this topic online here:
http://forums.matronics.coef="http://www.matronics.com/Navigator?TeamGrumman-List" target="_blank --> h href="http://www.matronics.com/contribution" target="_blank">http://www=======================
No virus found in this message.
Checked by AVG - www.avg.com
05/16/13 [b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
flying-nut(at)cfl.rr.com
Guest
|
| Posted: Thu May 16, 2013 10:57 am Post subject: Flap turn buckle |
|
|
Sorry Gary .... I messed that up!!!
Try M44-14!!! The 'F' is female ..... Duh!!!
Linn
On 5/16/2013 2:47 PM, Linn wrote:
[quote] First, you need to get you a ACS catalog .... lots of info other than parts for sale.
Go to the ACS website and search on 'catalog' .... scroll down the page and download the PDF.
I'm guessing that you probably have a 1/4-28 male thread with #4 bolt through the ball .... it's an F44-14M (page 137)
If that's not it .... lemme know what the dimensions are.
Linn
On 5/16/2013 1:30 PM, Gary L Vogt wrote:
[b]
| | - The Matronics TeamGrumman-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?TeamGrumman-List |
|
|
|
| Back to top |
|
|
|
|
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
|
Powered by phpBB © 2001, 2005 phpBB Group
|
Get Email Distribution Too!
FAQ
Search
Memberlist
Usergroups
Register
Profile
Log in to check your private messages
Log in
