 Posted: Mon Sep 02, 2013 4:39 am Post subject: Fuel funnel for Mogas |
 |
|
Hello,
I wonder what kind of practical size for a FUEL FILETR FUNNEL have proven
to be most suitable for the Europa? From your comments it appears more
practical to rather pre-filter mogas at the filling station into the clean
fuel containers rather than sticking a filter into the fuel fill opening
on the EUROPA SX style on the side.
More specifically, Aircraft Spruce has 3 models, small, middle and large
with 2.5,3.5 and 5 rpm throughput, but significant size differences. Which
one would you recommend? I am filling up my AC first time this weekŠ
Christoph Both
#223 Wolfville, Nova Scotia,Canada
On 13-09-01 8:21 AM, "Carl Pattinson" <carl(at)flyers.freeserve.co.uk> wrote:
[quote]
<carl(at)flyers.freeserve.co.uk>
Hi All,
I am surprised that anyone ever gets blocked filters after the initial
shakedown. I know it is difficult to clean out tanks after build but it's
definitely worth pumping a few gallons of fuel through the system before
assuming everything is clean.
If you have dirty fuel in your tanks this is an issue that should be
addressed first rather instead of relying on the fuel filters to do their
job. I accept that some of us have less control over what we put in our
tanks than others (ie: if you are purchasing fuel at the airfield pumps).
In the early days I recall that clogged filters were an issue for some
builders. The filters were becoming overwhelmed by large amounts of crud
which should never have been there in the first place - I do not believe
that changing the size of the filter mesh would address this particular
issue.
Personally I never liked the factory system and opted for a gascolator
setup
instead - nothing fancy like an Andair, just the cheap kit builders one
available from LAS or Aircraft Spruce (I priced one at the LAA yesterday
and
they are selling for £60) . The beauty of the setup is that any large
lumps
of crud (or water) tend to settle in the bottom of the gascolator bowl and
will be drained off when you do your do your daily fuel checks - very
little
muck reaches the filter mesh at the top of the bowl (this is a 120 micron
screen).
We are fortunate in that all our fuel is from cans which we insist on
filtering through a fine mesh funnel and we have never found any signs of
a
clogged filter. It is worth noting that metal fuel cans generate their own
debris as the internal paint on the cans tends to flake off and if not
filtered would cause problems if not pre filtered.
For those who have to rely on airfield based supplies if it should be
possible to carry a filter sock (wire or nylon mesh) which could be
dropped
down the fuel filler opening to ensure the cleanliness of any external
sources of fuel. This could even be a permanent installation.
Additionally as a backup, a fuel pressure gauge which would give a visual
warning of low pressure due to a filter blockage.
Carl Pattinson
G-LABS
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
 |
raimo.toivio(at)rwm.fi
Guest
|
| Posted: Mon Sep 02, 2013 5:00 am Post subject: Fuel funnel for Mogas |
|
|
Christoph,
what bigger that better in this action.
If small, you will loose your nerves - it is so
slow. Refueling speed is also safety issue - less
time to get debris from there and there!
There is also a model with double outport.
I have one large w 2 ports when using home and
carry small one w 1 port in the ac when flying
far.
Yes - It is very unpractical to use it when
filling XS. Use it when filling your canister. In
that way you can filter it 2nd time if necessary.
When filling direct to your ac it´s too late and
one time operation.
Good luck,
Raimo
-----Alkuperäinen viesti-----
From: Christoph Both
Sent: Monday, September 02, 2013 3:39 PM
To: europa-list(at)matronics.com
Subject: Re: Fuel funnel for Mogas
<christoph.both(at)acadiau.ca>
Hello,
I wonder what kind of practical size for a FUEL
FILETR FUNNEL have proven
to be most suitable for the Europa? From your
comments it appears more
practical to rather pre-filter mogas at the
filling station into the clean
fuel containers rather than sticking a filter into
the fuel fill opening
on the EUROPA SX style on the side.
More specifically, Aircraft Spruce has 3 models,
small, middle and large
with 2.5,3.5 and 5 rpm throughput, but significant
size differences. Which
one would you recommend? I am filling up my AC
first time this weekŠ
Christoph Both
#223 Wolfville, Nova Scotia,Canada
On 13-09-01 8:21 AM, "Carl Pattinson"
<carl(at)flyers.freeserve.co.uk> wrote:
[quote]
Pattinson"
<carl(at)flyers.freeserve.co.uk>
Hi All,
I am surprised that anyone ever gets blocked
filters after the initial
shakedown. I know it is difficult to clean out
tanks after build but it's
definitely worth pumping a few gallons of fuel
through the system before
assuming everything is clean.
If you have dirty fuel in your tanks this is an
issue that should be
addressed first rather instead of relying on the
fuel filters to do their
job. I accept that some of us have less control
over what we put in our
tanks than others (ie: if you are purchasing fuel
at the airfield pumps).
In the early days I recall that clogged filters
were an issue for some
builders. The filters were becoming overwhelmed
by large amounts of crud
which should never have been there in the first
place - I do not believe
that changing the size of the filter mesh would
address this particular
issue.
Personally I never liked the factory system and
opted for a gascolator
setup
instead - nothing fancy like an Andair, just the
cheap kit builders one
available from LAS or Aircraft Spruce (I priced
one at the LAA yesterday
and
they are selling for £60) . The beauty of the
setup is that any large
lumps
of crud (or water) tend to settle in the bottom
of the gascolator bowl and
will be drained off when you do your do your
daily fuel checks - very
little
muck reaches the filter mesh at the top of the
bowl (this is a 120 micron
screen).
We are fortunate in that all our fuel is from
cans which we insist on
filtering through a fine mesh funnel and we have
never found any signs of
a
clogged filter. It is worth noting that metal
fuel cans generate their own
debris as the internal paint on the cans tends to
flake off and if not
filtered would cause problems if not pre
filtered.
For those who have to rely on airfield based
supplies if it should be
possible to carry a filter sock (wire or nylon
mesh) which could be
dropped
down the fuel filler opening to ensure the
cleanliness of any external
sources of fuel. This could even be a permanent
installation.
Additionally as a backup, a fuel pressure gauge
which would give a visual
warning of low pressure due to a filter
blockage.
Carl Pattinson
G-LABS
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
|
|
| Back to top |
|
|
carl(at)flyers.freeserve.
Guest
|
| Posted: Mon Sep 02, 2013 5:35 am Post subject: Fuel funnel for Mogas |
|
|
I agree with Ramio - the bigger, the better. We have the largest size
available (about 8" in diameter at a guess) and we still have to pour slowly
to avoid an overspill.
IMHO it is pointless filtering the fuel going into your fuel cans as the
internal paint (metal cans) has a tendency to flake off. It should be
filtered from the refuelling can or pump when going into the aircraft. Easy
for me to say as we have the old style filling system (located on top).
Not sure how this works if you have the newer side filling system - thinks
you may need to rig a sling to support the funnel on the side of the
fuselage with a length of poly tubing extending into the filler. I'm sure
other Europa owners have cracked this problem.
It is worth mentioning that the fuel cans need to be earthed wherever
possible - not so much of a problem with metal cans.
I believe one Europa was lost to fire when a spark from can to filler

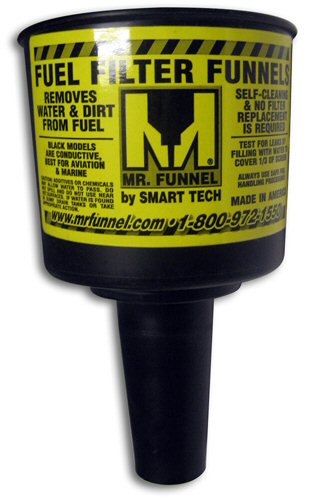

ignited the fuel. I think if you buy an aviation specific funnel (ie: Mr
Funnel) it will be made from conductive material but you would lose this
benefit if you extend the pipe with poly tubing. However it is relatively
easy to earth the filler opening with your finger and then ensure you do the
same with fuel can before commencing the fill.
I think the problem with static is generally associated with plastic cans -
perhaps someone with better knowledge on this issue could comment.
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
| Description: |
|
| Filesize: |
30.55 KB |
| Viewed: |
2672 Time(s) |
|
|
|
| Back to top |
|
|
max8992
Joined: 28 Jul 2011
Posts: 142
|
| Posted: Mon Sep 02, 2013 6:06 am Post subject: Fuel funnel for Mogas |
|
|
Hi There All,
I'm a bit puzzled with this topic or maybe I miss something: never had for the last 42 years any trouble of debris in filters on my (numerous) cars nor with my motor bikes (namely BMW using Bing 64 carbs). Why should have I using the same SP98 carried from the fuel pumps via clean cans (assuming the tank of F-LH is clean after 10 years of service and the pipes are Mogas compatible) ?
Max Cointe
mcointe(at)free.fr
F-PMLH Europa XS_TriGear
Kit #560-2003 912ULS/AirmasterAP332 450 hours
F-PLDJ Dyn’Aéro MCR 4S
Kit #27-2002 912ULSFR/MTProp MTV7A 1550 heures
-----Message d'origine-----
De : owner-europa-list-server(at)matronics.com [mailto:owner-europa-list-server(at)matronics.com] De la part de Christoph Both
Envoyé : lundi 2 septembre 2013 14:39
À : europa-list(at)matronics.com
Objet : Re: Fuel funnel for Mogas
--> <christoph.both(at)acadiau.ca>
Hello,
I wonder what kind of practical size for a FUEL FILETR FUNNEL have proven to be most suitable for the Europa? From your comments it appears more practical to rather pre-filter mogas at the filling station into the clean fuel containers rather than sticking a filter into the fuel fill opening on the EUROPA SX style on the side.
More specifically, Aircraft Spruce has 3 models, small, middle and large with 2.5,3.5 and 5 rpm throughput, but significant size differences. Which one would you recommend? I am filling up my AC first time this weekÅ Christoph Both
#223 Wolfville, Nova Scotia,Canada
On 13-09-01 8:21 AM, "Carl Pattinson" <carl(at)flyers.freeserve.co.uk> wrote:
[quote]
<carl(at)flyers.freeserve.co.uk>
Hi All,
I am surprised that anyone ever gets blocked filters after the initial
shakedown. I know it is difficult to clean out tanks after build but
it's definitely worth pumping a few gallons of fuel through the system
before assuming everything is clean.
If you have dirty fuel in your tanks this is an issue that should be
addressed first rather instead of relying on the fuel filters to do
their job. I accept that some of us have less control over what we put
in our tanks than others (ie: if you are purchasing fuel at the airfield pumps).
In the early days I recall that clogged filters were an issue for some
builders. The filters were becoming overwhelmed by large amounts of
crud which should never have been there in the first place - I do not
believe that changing the size of the filter mesh would address this
particular issue.
Personally I never liked the factory system and opted for a gascolator
setup instead - nothing fancy like an Andair, just the cheap kit
builders one available from LAS or Aircraft Spruce (I priced one at the
LAA yesterday and they are selling for £60) . The beauty of the setup
is that any large lumps of crud (or water) tend to settle in the bottom
of the gascolator bowl and will be drained off when you do your do your
daily fuel checks - very little muck reaches the filter mesh at the top
of the bowl (this is a 120 micron screen).
We are fortunate in that all our fuel is from cans which we insist on
filtering through a fine mesh funnel and we have never found any signs
of a clogged filter. It is worth noting that metal fuel cans generate
their own debris as the internal paint on the cans tends to flake off
and if not filtered would cause problems if not pre filtered.
For those who have to rely on airfield based supplies if it should be
possible to carry a filter sock (wire or nylon mesh) which could be
dropped down the fuel filler opening to ensure the cleanliness of any
external sources of fuel. This could even be a permanent installation.
Additionally as a backup, a fuel pressure gauge which would give a
visual warning of low pressure due to a filter blockage.
Carl Pattinson
G-LABS
--
| | - The Matronics Europa-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Europa-List |
|
_________________
Max8992
Europa XS #560 F-PMLH |
|
| Back to top |
|
|
|
|
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
|
Powered by phpBB © 2001, 2005 phpBB Group
|
Get Email Distribution Too!
FAQ
Search
Memberlist
Usergroups
Register
Profile
Log in to check your private messages
Log in
