 Posted: Thu Jul 23, 2009 7:52 am Post subject: Throttle Problem |
 |
|
I need some advice from the list.
601XL, Corvair, MA3-SPA, Dual Stick, Center Throttle. Need some ideas on how to reverse the throttle cable travel at the carburator. I don't think the DAR will go for "Push to close". I have some ideas but I wanted to see how others have handled this. The cable connection at the carb is as shown in WW's Engine installation manual.
Also using WW's fuel system layout the gascolator is less than an inch from the right exhaust pipe. Don't think it's a fire hazard but is that close enough to creat a vapor lock problem?
Carroll Jernigan
Dell Deals: Treat yourself to a sweet deal on popular laptops!
[quote][b]
| | - The Matronics Zenith601-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith601-List |
|
|
|
| Back to top |
|
 |
lwinger
Joined: 21 Jun 2006
Posts: 229
Location: Tustin, CA
|
| Posted: Thu Jul 23, 2009 8:10 am Post subject: Throttle Problem |
|
|
Andy Elliott came up with a pretty slick throttle reversing mechanism. You might check with him.
Larry Winger
Tustin, CA
650/Corvair
Canopy nearly done
[quote][b]
| | - The Matronics Zenith601-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith601-List |
|
_________________
Larry Winger
Tustin, CA
Plans building 601XL/650 with Corvair
Installing fuel system
www.mykitlog.com/lwinger |
|
| Back to top |
|
|
jaybannist(at)cs.com
Guest
|
| Posted: Thu Jul 23, 2009 8:21 am Post subject: Throttle Problem |
|
|
Carroll,
I ran the throttle cable forward past the carb, then looped it back to the throttle lever. That way, there is no "reversal" required. I can send a drawing and photos if you want.
Jay Bannister
--
| | - The Matronics Zenith601-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith601-List |
|
|
|
| Back to top |
|
|
psm(at)att.net
Guest
|
| Posted: Thu Jul 23, 2009 10:21 am Post subject: Throttle Problem |
|
|
Hi Carroll,
I have a Jabiru, so my problem is a little different from
yours. Still the principles are similar enough.
My problem was to connect dual throttle knobs with one
carburetor. This was done with a long torque tube mounted in the
cabin a few inches behind the firewall. There are three arms welded
to the tube - one on each end connects to a knob and the center one
attaches to a cable that goes through the firewall to the carb. The
tube is supported on nylon bushings - two bolted to the channel
running from the firewall to the instrument panel and two small ones
on aluminum pieces riveted to the side skin,
You could do a similar thing without the second throttle knob. If
you put the connecting arms on opposite sides of the torque tube then
the cable will reverse. You could also accomplish the same thing by
using a lever throttle instead of a push-pull cable.
Paul
XL grounded
At 08:51 AM 7/23/2009, you wrote:
| Quote: | I need some advice from the list.
601XL, Corvair, MA3-SPA, Dual Stick, Center Throttle. Need some
ideas on how to reverse the throttle cable travel at the carburator.
I don't think the DAR will go for "Push to close". I have some ideas
but I wanted to see how others have handled this. The cable
connection at the carb is as shown in WW's Engine installation manual.
Also using WW's fuel system layout the gascolator is less than an
inch from the right exhaust pipe. Don't think it's a fire hazard but
is that close enough to creat a vapor lock problem?
Carroll Jernigan
|
| | - The Matronics Zenith601-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith601-List |
|
|
|
| Back to top |
|
|
Gig Giacona
Joined: 10 Jan 2006
Posts: 1416
Location: El Dorado Arkansas USA
|
| Posted: Fri Jul 24, 2009 10:58 am Post subject: Re: Throttle Problem |
|
|
Carroll,

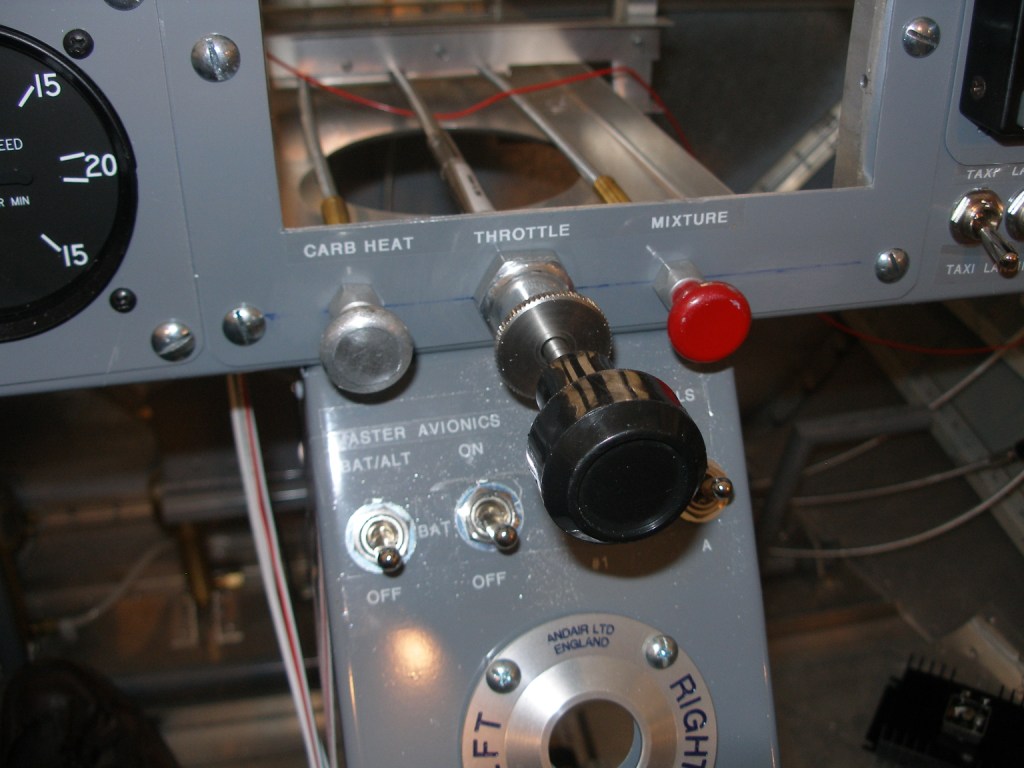

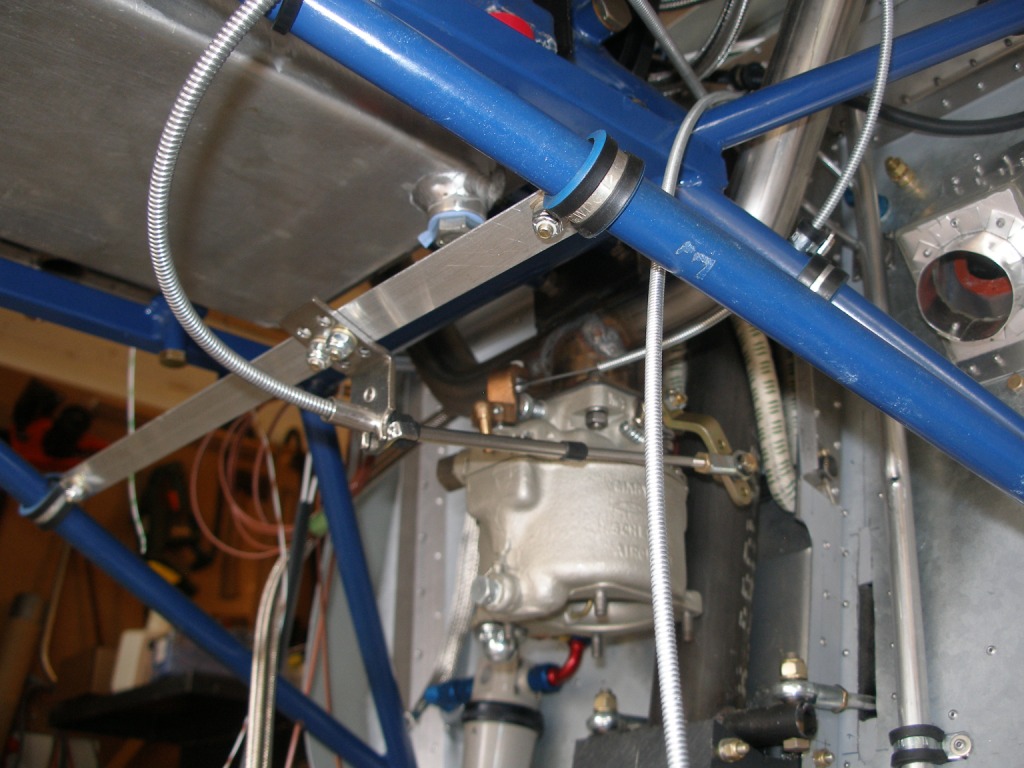

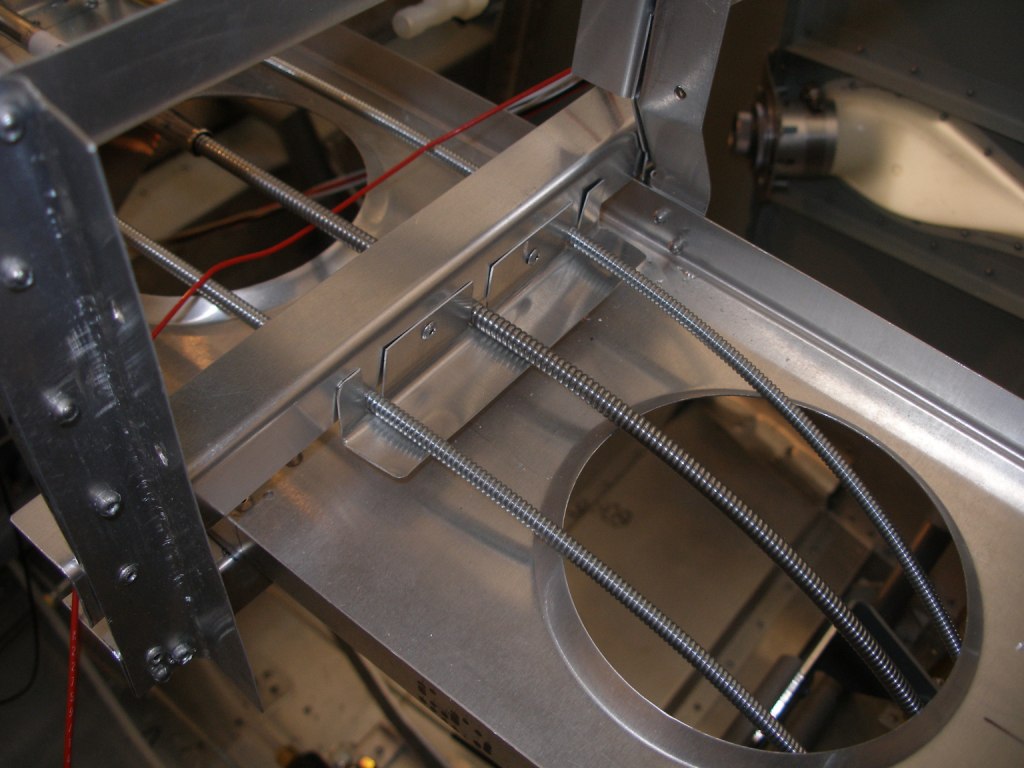

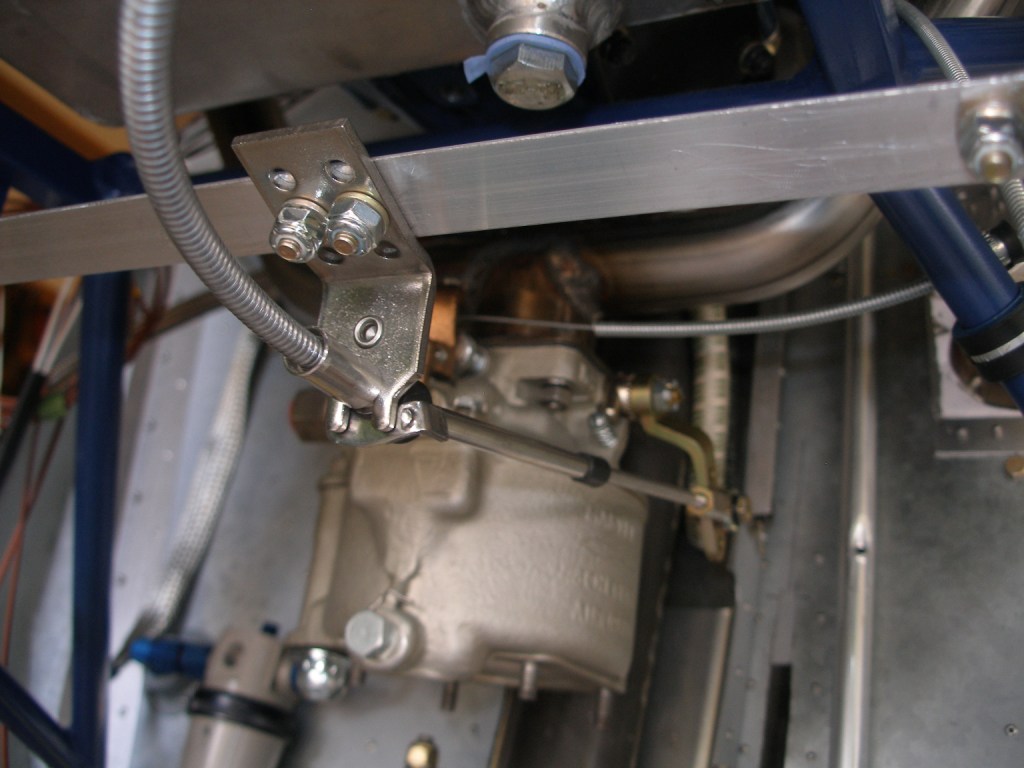

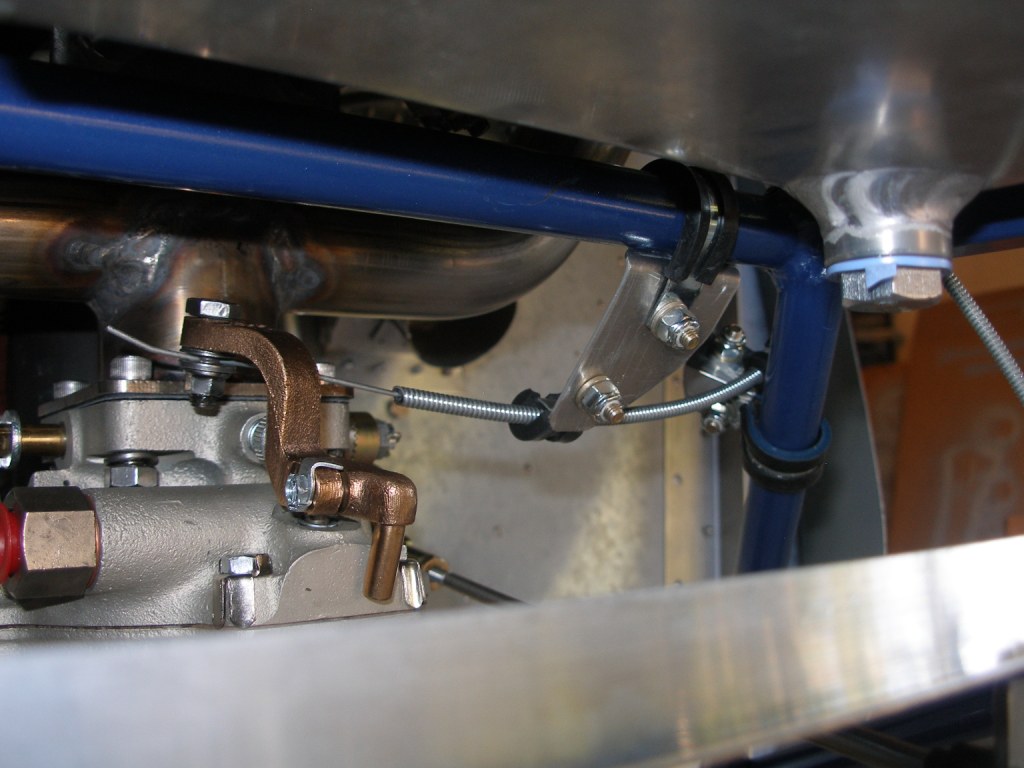

I just realized that I haven't taken any pictures of my install. Attached are the photos of Jay's that he sent me when I was doing it. I'm sure Jay won't mind.
| | - The Matronics Zenith601-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Zenith601-List |
|
| Description: |
|
| Filesize: |
113.78 KB |
| Viewed: |
5195 Time(s) |
|
| Description: |
|
| Filesize: |
175.14 KB |
| Viewed: |
5195 Time(s) |
|
| Description: |
|
| Filesize: |
112.37 KB |
| Viewed: |
5195 Time(s) |
|
| Description: |
|
Download |
| Filename: |
CarbLink.pdf |
| Filesize: |
82.47 KB |
| Downloaded: |
455 Time(s) |
_________________
W.R. "Gig" Giacona
601XL Under Construction
See my progress at www.peoamerica.net/N601WR |
|
| Back to top |
|
|
jaybannist(at)cs.com
Guest
|
| Posted: Fri Jul 24, 2009 11:43 am Post subject: Throttle Problem |
|
|

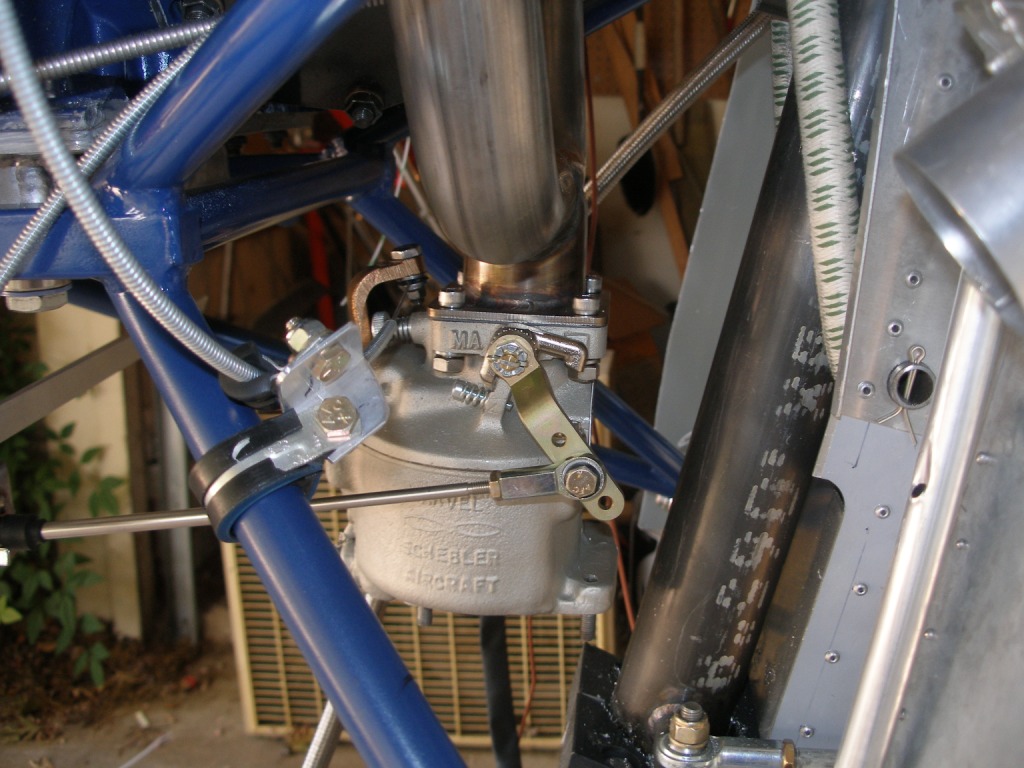

The first photo is actually of the mixture control connection. I have a few more to add.
