Posted: Sat Apr 29, 2006 8:15 am Post subject: Fuel Tank Gasket Material ? |
|
|
Hey Guys,
I'm going to make a couple fittings for the bottom of my fuel tanks...

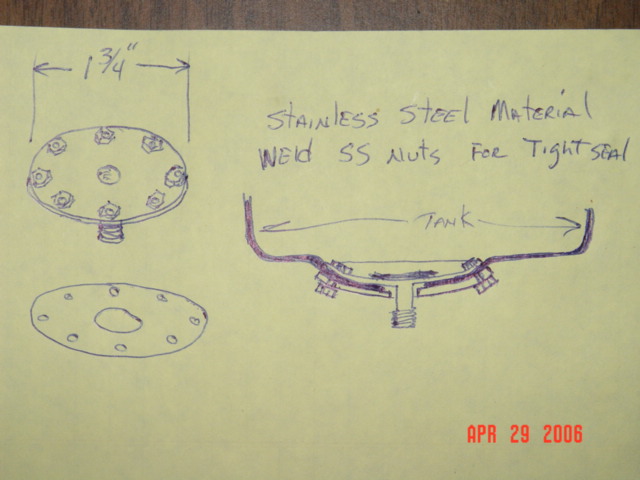

( see "rough" sketch below )
The two pieces of Stainless steel will be concaved to make a low point
in the tanks... this way I can put a gasolator and drain and fuel pick-up at the lowest point of the tanks ( I might add a "site gauge" too )
My question is...
What are some good Gasket materials....Both Hard & soft ?
.
.
.
Gotta Fly...
Mike in MN
.
.
.
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
Description: |
|
Filesize: |
61.37 KB |
Viewed: |
287 Time(s) |

|
|
|
Back to top |
|
 |
planecrazzzy Guest
|
Posted: Sun Apr 30, 2006 5:30 am Post subject: Re: Fuel Tank Gasket Material ? |
|
|
I've revised my sketch...I'm thinking of making the "inside piece" slightly
smaller to force the curve a little better....
I'm thinking of going with "thicker" material and just tapping the holes
instead of welding nuts on (TIG)
Gasket seal ????? Hard , soft , silicone stuff ???
Gotta Fly...
Mike in MN
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
Description: |
|
Filesize: |
60.5 KB |
Viewed: |
268 Time(s) |

|
|
|
Back to top |
|
 |
planecrazzzy Guest
|
Posted: Sun May 14, 2006 11:29 am Post subject: Re: Fuel Tank Gasket Material ? |
|
|
Hey Guys,
Here's a few pictures of what I've got so far....
I didn't like the way the concave seal was turning out...
So I went for flat Washers.... I'm gonna "groove" them later to get the
Fuel pick-up as low as possible....
I also went with 8 screws instead of 6....
BUT.... I "STILL" am looking for some kind of gasket material that can be
used with gasoline.....The Silicones that I've read say "NO Gasoline"
I'm wondering about cork....?
Well,
Here's a few pictures...
Gotta Fly...
Mike in MN
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
Description: |
I'm using all Stainless Steel Material |
|
Filesize: |
59.77 KB |
Viewed: |
305 Time(s) |

|
Description: |
|
Filesize: |
60.85 KB |
Viewed: |
269 Time(s) |

|

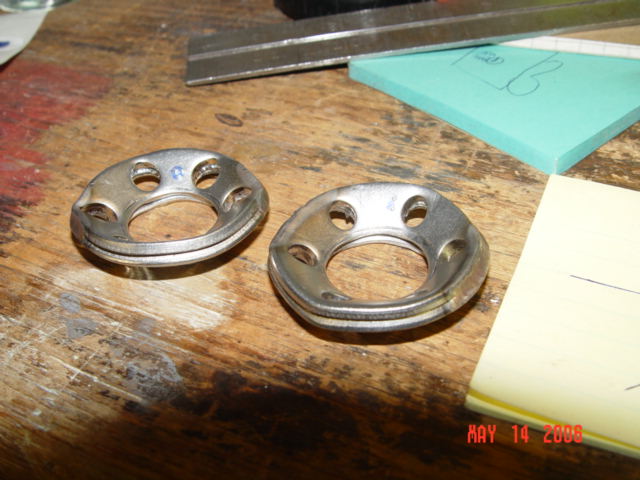

Description: |
Quick attempt....Checking possibilities.....( Didn't like it ) |
|
Filesize: |
59.99 KB |
Viewed: |
267 Time(s) |

|
|
|
Back to top |
|
 |
David.Lehman

Joined: 10 Jan 2006 Posts: 265 Location: "Lovely" Fresno CA
|
Posted: Sun May 14, 2006 11:47 am Post subject: Fuel Tank Gasket Material ? |
|
|
Cork's good...
DVD
On 5/14/06, planecrazzzy <planecrazzzy(at)yahoo.com> wrote:
=
=
=
--
=F4=BF=F4 "Failure lies not in falling down. Failure lies in not getting u=
p."
(traditional Chinese proverb)
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________ ô¿ô
"Both optimists and pessimists contribute to the society. The optimist invents the aeroplane, the pessimist the parachute."
--- George Bernard Shaw |
|
Back to top |
|
 |
John Hauck

Joined: 09 Jan 2006 Posts: 4639 Location: Titus, Alabama (hauck's holler)
|
Posted: Sun May 14, 2006 2:12 pm Post subject: Fuel Tank Gasket Material ? |
|
|
| So I went for flat Washers.... I'm gonna "groove" them later to get
the
|
| Fuel pick-up as low as possible....
| |
| Gotta Fly...
| Mike in MN
Mike/Gang:
Everybody wants to do it their way, and I understand that. However,
there is another solution to installing outlets in the bottom of
plastic tanks, which I am assuming you are doing.
It is a very simple metal elbow and a neoprene washer that pushes into
a hole drilled into the bottom of the plastic tank. They work very
well, last for years. I have some in a 15 gal plastic gas tank I used
for hauling fuel for my FS 20 years ago. It is still usable.
Compared to the hardware you have come up with it weighs next to
nothing for a set of two for two tanks.
I am sure Travis, at Kolb, has them in stock. Tell him hauck sent
you. Will not help, but tell him anyhow.
Take care,
john h
mkIII
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
_________________ John Hauck
MKIII/912ULS
hauck's holler
Titus, Alabama |
|
Back to top |
|
 |
planecrazzzy Guest
|
Posted: Sun May 14, 2006 3:00 pm Post subject: Re: Fuel Tank Gasket Material ? |
|
|
John Hauck wrote: | |
It is a very simple metal elbow and a neoprene washer that pushes into
a hole drilled into the bottom of the plastic tank. They work very
well, last for years.
john h
mkIII |
Hi John,
Those fittings were talked about before....what we didn't like about them is they don't drain "all" the fuel / water / debris ...
They stick up from the bottom of the tank aprox 3/8"
I'd rather just put a gasotator on to filter and Drain/Check the fuel/water....without anything accumulating in the tanks....
Gotta Fly...
Mike
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
|
|
Back to top |
|
 |
Steven Green
Joined: 05 Feb 2006 Posts: 118
|
|
Back to top |
|
 |
dcreech3(at)hotmail.com Guest
|
Posted: Sun May 14, 2006 6:26 pm Post subject: Fuel Tank Gasket Material ? |
|
|
Another point is that when they do begin to leak, it creates a messy,
unpleasant and potentially dangerous situation. After I learned this from
experience, I plumbed my new tanks from the top, they way they set up the
new ones. Why make holes in the bottom of your tanks when you don't have
to?
Lee in Ky
Firestar II
Quote: | From: "planecrazzzy" <planecrazzzy(at)yahoo.com>
Reply-To: kolb-list(at)matronics.com
To: kolb-list(at)matronics.com
Subject: Re: Fuel Tank Gasket Material ?
Date: Sun, 14 May 2006 16:00:11 -0700
John Hauck wrote:
> |
>
> It is a very simple metal elbow and a neoprene washer that pushes into
> a hole drilled into the bottom of the plastic tank. They work very
> well, last for years.
> john h
> mkIII
Hi John,
Those fittings were talked about before....what we didn't
like about them is they don't drain "all" the fuel / water / debris ...
They stick up from the bottom of the tank aprox 3/8"
I'd rather just put a gasotator on to filter and Drain/Check the
fuel/water....without anything accumulating in the tanks....
Gotta Fly...
Mike
--------
.
.
.
.
.Do not archive
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=34596#34596
|
_________________________________________________________________
Is your PC infected? Get a FREE online computer virus scan from McAfee
Security. http://clinic.mcafee.com/clinic/ibuy/campaign.asp?cid=3963
| - The Matronics Kolb-List Email Forum - | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?Kolb-List |
|
|
|
Back to top |
|
 |
ElleryWeld(at)aol.com Guest
|
Posted: Sun May 14, 2006 6:47 pm Post subject: Fuel Tank Gasket Material ? |
|
|
I have been using the same fittings that John Hauck is talking about for 15
years in the bottom of my tank and I never had one start leaking yet and I
have a tank that has a bubble in the bottom where I put it so I get a good taste
of water on my preflight once in a while ( I hate it when it doesnt warn me
when the gas starts to get on my toung ) but I got all the water out snip snip
Ellery in Maine a long way from anywhere
