Tailplane shaft installation


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> Europa-List
View previous topic :: View next topic
Author Message
coatbeam(at)melbpc.org.au
Guest
PostPosted: Tue Oct 02, 2018 12:40 am    Post subject: Tailplane shaft installation Reply with quote

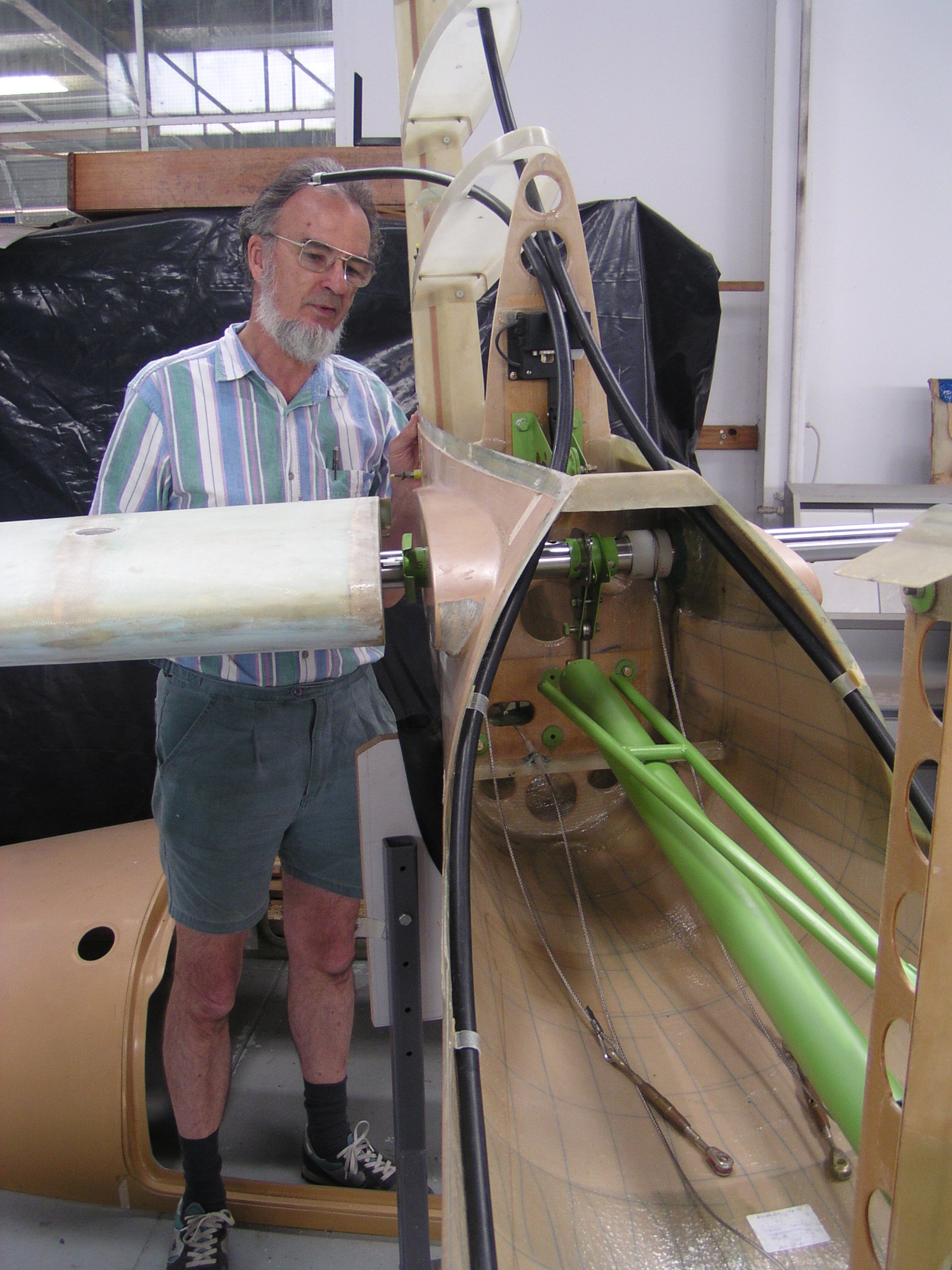

When mounting my tailplane shaft I made sure the Fuselage 'boat' was
rigid in this area by permanently fitting a strut just forward of the
shaft at the point shown in Chapter 18 Fig 1 withe dimension of 132 mm
(see picture). This is an absolute must to keep this area rigid;
regardless of having a solid dolly to hold the fuselage at about 5
locations. Over the several years of construction the tailplane shaft
has always been easy to move - no slop, no friction.
Graeme Coates
Europa 423
Melbourne OZ
---
