Installing elevators and rudders

Matronics Email Lists Forum Index -> RV10-List

View previous topic :: View next topic

Author Message

wayne.e(at)grandecom.net
Guest

Posted: Tue Jan 02, 2007 5:41 pm Post subject: Installing elevators and rudders

I am just finishing up installing my elevators and  rudder and a fellow RV10 builder, Ron Grover, on the field where I'm at,  Prop Wash Justin, TX, gave me a great tip and the loan of his tool that really  made the job much easer. Actually Ron came over and help me install the  elevators. Boy it's really nice to have someone help you that's done something  before you. Ron has a beautiful RV8 he built and is working on his  10.

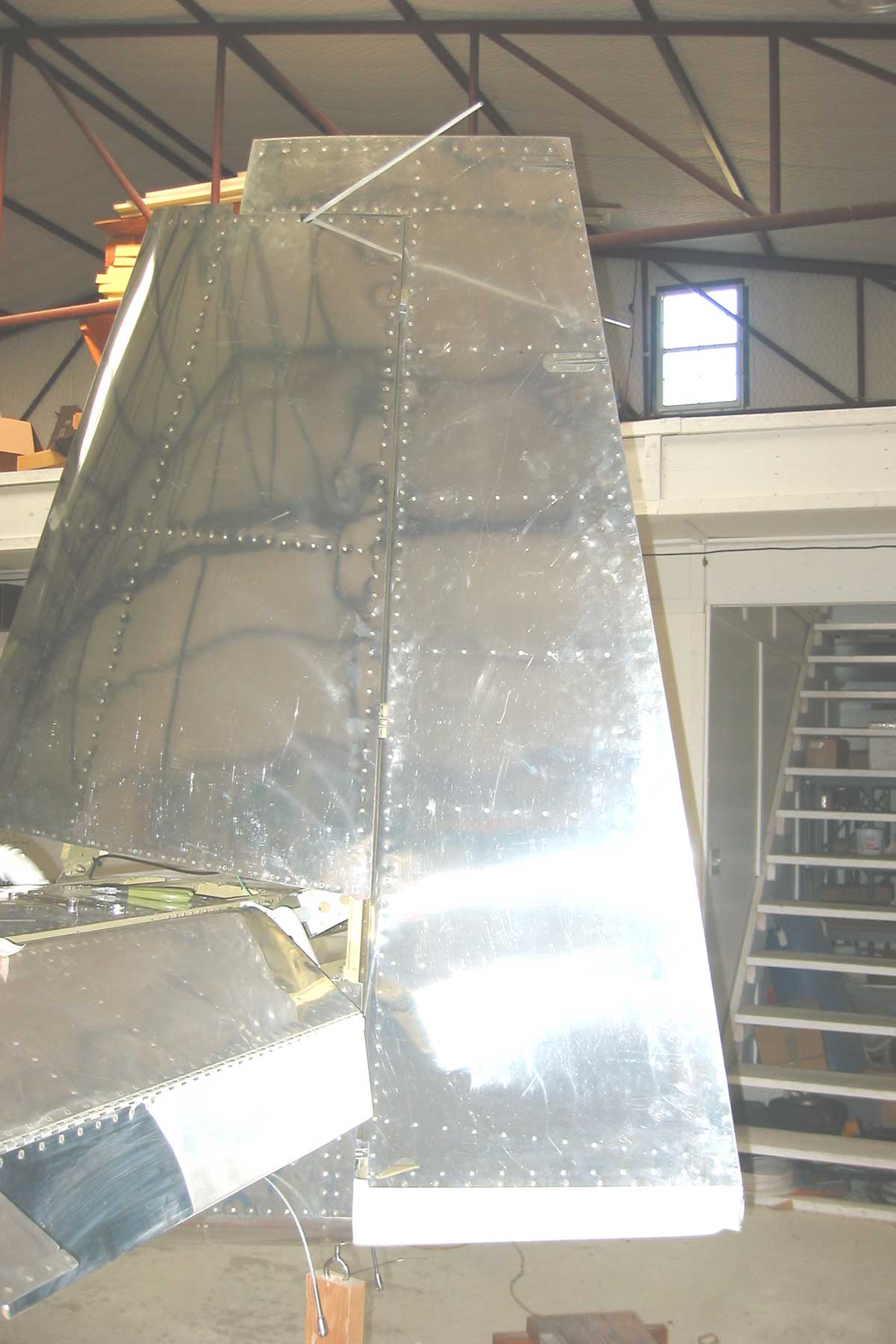

 Anyway the tool that Ron loaned me, see attachment  1-2-07-1, is for inserting temporarily in the attach brackets to hold the  elevator or the rudder in place until you can get the bolt installed. I just put  my hand in the picture as a reference to their size I can't remember off hand  but I think he said he got them at Aircraft Spruce?. I've also attached a photo  of them installed on the rudder if you're able to zoom in a little to see  them.Probably everyone already knows about these tools except me  :>}  I've also attached the finished product 1-2-07-2. It obviously works the same  way on the elevators.



 I've now got the elevators and rudder generally  installed I just need to make the final touches.



 For what ever it's worth



 Wayne Edgerton #40336



 Trying to get this thing finished and start flying  if the vendors will just start co-operating :>} Props been delayed AGAIN
